固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

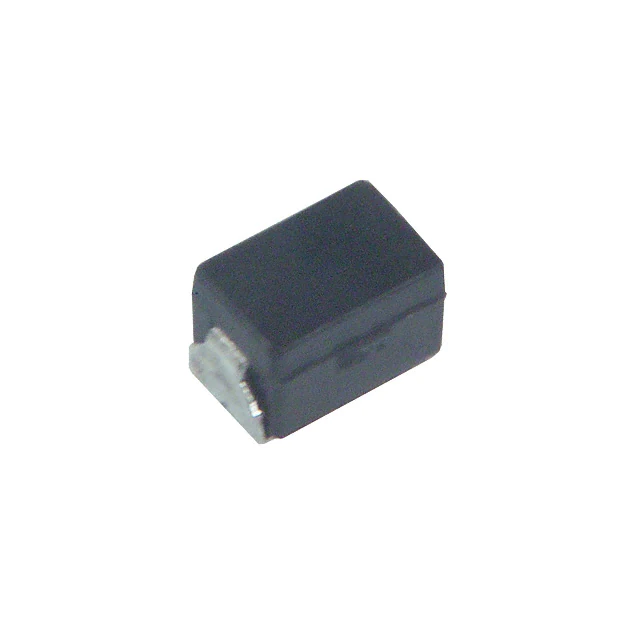

ELJ-NDR56KFFIXED IND 560NH 140MA 2.69OHM SM |
0 | - |
|
数据表 |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 140 mA | - | 0805 (2012 Metric) | Unshielded | 2.69Ohm Max | 560 nH | 10 @ 25.2MHz | 100MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -20°C ~ 85°C | 25.2 MHz | 0.057" (1.45mm) |
|
|
ELJ-NDR68KFFIXED IND 680NH 130MA 3.02OHM SM |
0 | - |
|
数据表 |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 130 mA | - | 0805 (2012 Metric) | Unshielded | 3.02Ohm Max | 680 nH | 10 @ 25.2MHz | 100MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -20°C ~ 85°C | 25.2 MHz | 0.057" (1.45mm) |
|
|
ELJ-NDR82KFFIXED IND 820NH 125MA 3.38OHM SM |
0 | - |
|
数据表 |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 125 mA | - | 0805 (2012 Metric) | Unshielded | 3.38Ohm Max | 820 nH | 10 @ 25.2MHz | 80MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -20°C ~ 85°C | 25.2 MHz | 0.057" (1.45mm) |
|
RLB0912-821KLFIXED IND 820UH TH |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | - | - | - | Unshielded | - | 820 µH | - | - | Through Hole | - | 0.343" Dia (8.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
SDR0906-152KBFIXED IND 1.5MH 180MA 5 OHM SMD |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | 260mA | - | Unshielded | 5Ohm Max | 1.5 mH | 70 @ 252kHz | 2MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
SRP1040-1R2MFIXED IND 1.2UH 18A 4.7 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 18 A | 24A | - | Shielded | 4.7mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-1R5MFIXED IND 1.5UH 12A 7.5 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 12 A | 20A | - | Shielded | 7.5mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-1R7MFIXED IND 1.7UH 15A 7.5 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 15 A | 18A | - | Shielded | 7.5mOhm Max | 1.7 µH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-3R9MFIXED IND 3.9UH 9A 12 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 9 A | 15A | - | Shielded | 12mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-5R6MFIXED IND 5.6UH 7A 16 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 7 A | 12A | - | Shielded | 16mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-R15MFIXED IND 150NH 34A 1.3 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 34 A | 40A | - | Shielded | 1.3mOhm Max | 150 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-R20MFIXED IND 200NH 32A 1 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 32 A | 40A | - | Shielded | 1mOhm Max | 200 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-R50MFIXED IND 500NH 23A 1.9 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 23 A | 32A | - | Shielded | 1.9mOhm Max | 500 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-R75MFIXED IND 750NH 22A 2.5 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 22 A | 28A | - | Shielded | 2.5mOhm Max | 750 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
|
SRP1040-R80MFIXED IND 800NH 21A 3 MOHM SMD |
0 | - |
|
数据表 |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 21 A | 30A | - | Shielded | 3mOhm Max | 800 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD |
0 | - |
|
数据表 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 13 A | 14A | - | Shielded | 4.4mOhm Max | 1.4 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRP1045-2R2MFIXED IND 2.2UH 9.5A 8.7MOHM SMD |
0 | - |
|
数据表 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 9.5 A | 10A | - | Shielded | 8.7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRP1045-3R2MFIXED IND 3.2UH 8A 10.4 MOHM SMD |
0 | - |
|
数据表 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 8 A | 8A | - | Shielded | 10.4mOhm Max | 3.2 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRP1045-R36YFIXED IND 360NH 23A 1.7 MOHM SMD |
0 | - |
|
数据表 |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 23 A | 26A | - | Shielded | 1.7mOhm Max | 360 nH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
SRP1055-4R3MFIXED IND 4.3UH 10A 8.5 MOHM SMD |
0 | - |
|
数据表 |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 8A | - | Shielded | 8.5mOhm Max | 4.3 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.228" (5.80mm) |
