固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

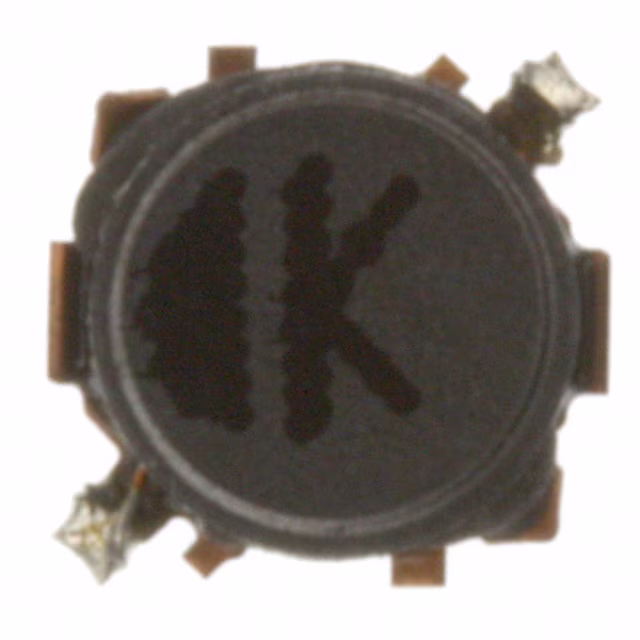

ELL-VEG6R8NFIXED IND 6.8UH 650MA 350MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 650 mA | 580mA | - | Shielded | 350mOhm | 6.8 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.039" (1.00mm) |
|
ELL-VEG100MFIXED IND 10UH 600MA 480MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 600 mA | 520mA | - | Shielded | 480mOhm | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.039" (1.00mm) |
|
ELL-VEG150MFIXED IND 15UH 490MA 710MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 490 mA | 430mA | - | Shielded | 710mOhm | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.039" (1.00mm) |
|
ELL-VEG220MFIXED IND 22UH 400MA 1.2 OHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 400 mA | 330mA | - | Shielded | 1.2Ohm | 22 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.039" (1.00mm) |
|
ELL-VFG1R0NCFIXED IND 1UH 1.7A 50 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.7 A | 1.5A | - | Shielded | 50mOhm | 1 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
ELL-VFG2R2NCFIXED IND 2.2UH 1.4A 87 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.4 A | 1.1A | - | Shielded | 87mOhm | 2.2 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|

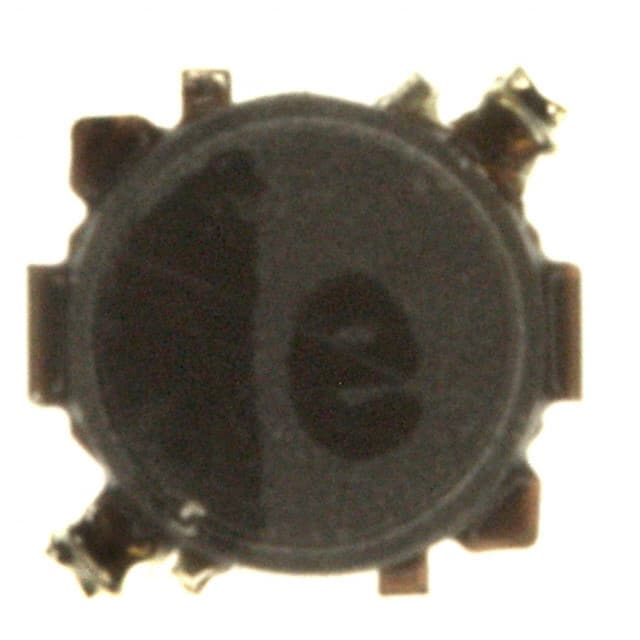

ELL-VFG3R3NCFIXED IND 3.3UH 1.25A 110MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.25 A | 980mA | - | Shielded | 110mOhm | 3.3 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
ELL-VFG4R7NCFIXED IND 4.7UH 1.05A 150MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.05 A | 740mA | - | Shielded | 150mOhm | 4.7 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
ELL-VFG100MCFIXED IND 10UH 640MA 380MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 640 mA | 550mA | - | Shielded | 380mOhm | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
ELL-VFG220MCFIXED IND 22UH 430MA 710MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 430 mA | 350mA | - | Shielded | 710mOhm | 22 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
ELL-VGG3R3NFIXED IND 3.3UH 1.1A 130MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.1 A | 1.35A | - | Shielded | 130mOhm | 3.3 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|

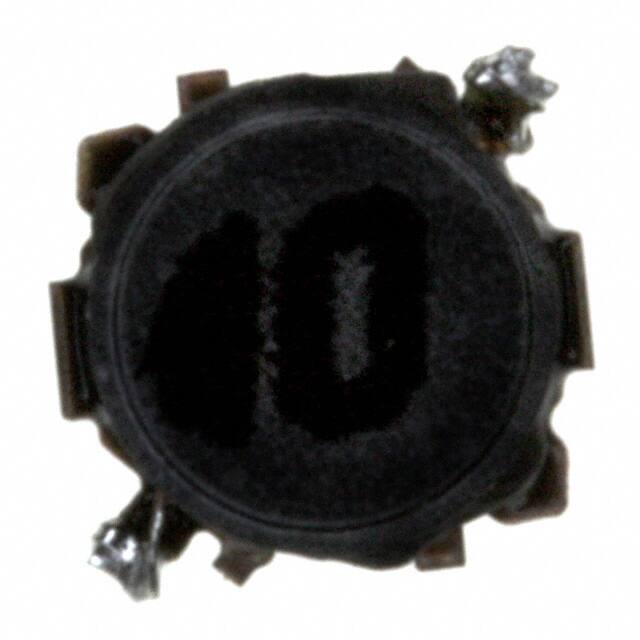

ELL-VGG150MFIXED IND 15UH 490MA 640MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 490 mA | 600mA | - | Shielded | 640mOhm | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|

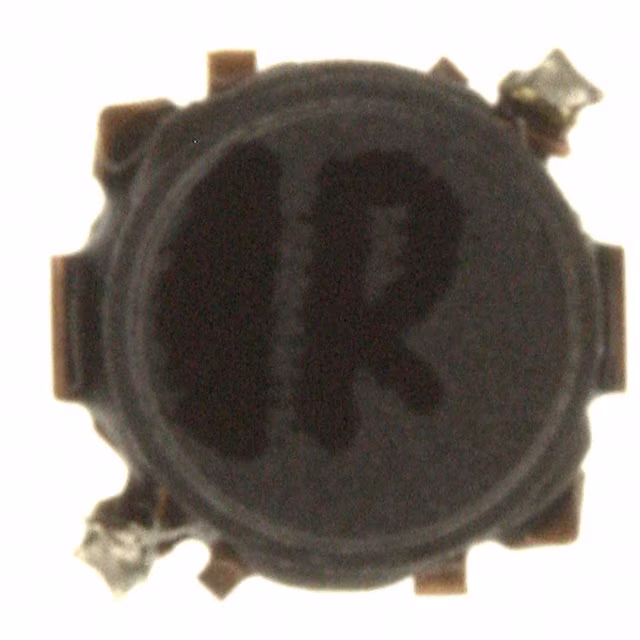

ELL-VGG220MFIXED IND 22UH 460MA 800MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 460 mA | 500mA | - | Shielded | 800mOhm | 22 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|
6306-RCFIXED IND 10MH 100MA 31 OHM TH |
0 | - |
|
数据表 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | - | Unshielded | 31Ohm Max | 10 mH | 95 @ 79.6kHz | 710kHz | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - | -55°C ~ 105°C | 79.6 kHz | - |
|
6302-RCFIXED IND 2.5MH 160MA 9 OHM TH |
0 | - |
|
数据表 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | - | Unshielded | 9Ohm Max | 2.5 mH | 95 @ 252kHz | 1.3MHz | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - | -55°C ~ 105°C | 252 kHz | - |
|
6304-RCFIXED IND 5MH 160MA 14 OHM TH |
0 | - |
|
数据表 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | - | Unshielded | 14Ohm Max | 5 mH | 80 @ 252kHz | 1MHz | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - | -55°C ~ 105°C | 252 kHz | - |
|
LTF5022T-1R8N3R6-LCFIXED IND 1.8UH 3.8A 32 MOHM SMD |
0 | - |
|
数据表 |
LTF5022T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.8 A | 3.6A | - | Shielded | 32mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.087" (2.20mm) |
|
CI100505-1N2DFIXED IND 1.2NH 300MA 90MOHM SMD |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 90mOhm Max | 1.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-1N8DFIXED IND 1.8NH 300MA 120MOHM SM |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 1.8 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-2N7DFIXED IND 2.7NH 300MA 130MOHM SM |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 130mOhm Max | 2.7 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
