固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL1923-153KR26-PFFIXED IND 15MH 260MA 7.1 OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 260 mA | 380mA | - | Unshielded | 7.1Ohm Max | 15 mH | - | - | Through Hole | - | 0.740" Dia (18.80mm) | - | -40°C ~ 85°C | - | 0.945" (24.00mm) |
|

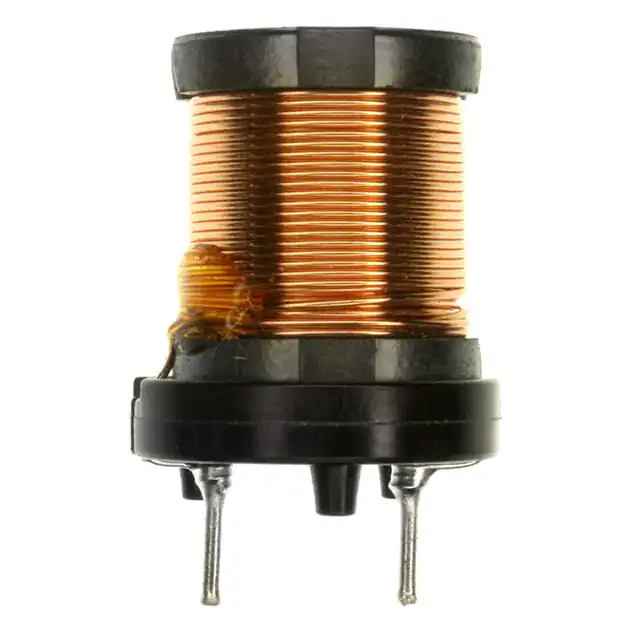

SL1923-222KR70-PFFIXED IND 2.2MH 700MA 1 OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 700 mA | 1A | - | Unshielded | 1Ohm Max | 2.2 mH | - | - | Through Hole | - | 0.740" Dia (18.80mm) | - | -40°C ~ 85°C | - | 0.945" (24.00mm) |
|

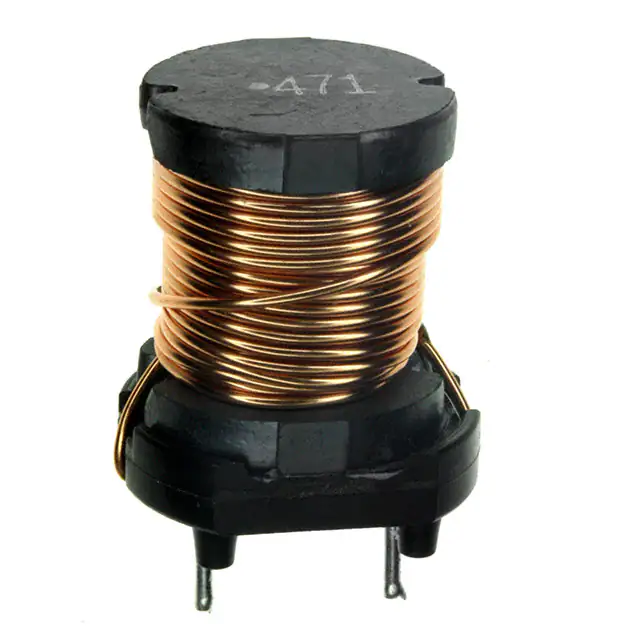

SL1923-471K1R5-PFFIXED IND 470UH 1.5A 200 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 1.5 A | 2.1A | - | Unshielded | 200mOhm Max | 470 µH | - | - | Through Hole | - | 0.740" Dia (18.80mm) | - | -40°C ~ 85°C | - | 0.945" (24.00mm) |
|
SL1923-681K1R3-PFFIXED IND 680UH 1.3A 290 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 1.3 A | 1.8A | - | Unshielded | 290mOhm Max | 680 µH | - | - | Through Hole | - | 0.740" Dia (18.80mm) | - | -40°C ~ 85°C | - | 0.945" (24.00mm) |
|
SL2125-102K1R3-PFFIXED IND 1MH 1.3A 350 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 1.3 A | 1.7A | - | Unshielded | 350mOhm Max | 1 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|
SL2125-103KR41-PFFIXED IND 10MH 410MA 3.41 OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 410 mA | 550mA | - | Unshielded | 3.41Ohm Max | 10 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|
SL2125-152KR99-PFFIXED IND 1.5MH 990MA 610MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 990 mA | 1.3A | - | Unshielded | 610mOhm Max | 1.5 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|
SL2125-222KR87-PFFIXED IND 2.2MH 870MA 780MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 870 mA | 1.1A | - | Unshielded | 780mOhm Max | 2.2 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|
SL2125-332KR72-PFFIXED IND 3.3MH 720MA 1.15OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 720 mA | 950mA | - | Unshielded | 1.15Ohm Max | 3.3 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|

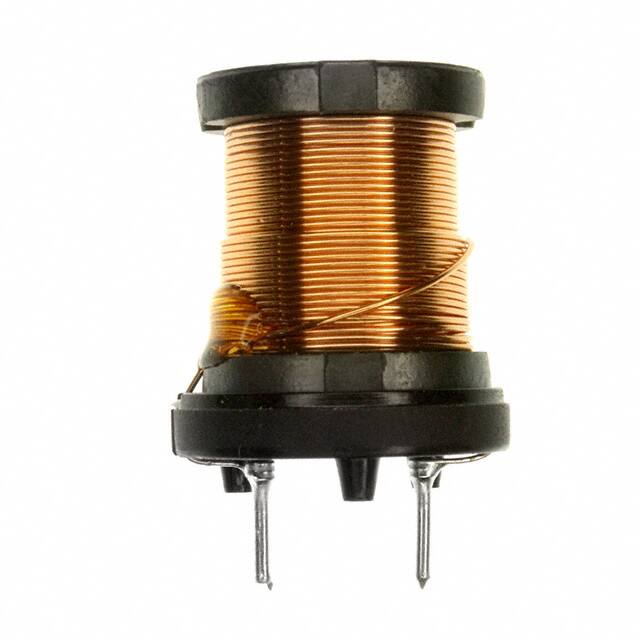

SL2125-472KR59-PFFIXED IND 4.7MH 590MA 1.71OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 590 mA | 780mA | - | Unshielded | 1.71Ohm Max | 4.7 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|
SL2125-682KR47-PFFIXED IND 6.8MH 470MA 2.61OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | ±10% | 470 mA | 660mA | - | Unshielded | 2.61Ohm Max | 6.8 mH | - | - | Through Hole | - | 0.819" Dia (20.80mm) | - | -40°C ~ 85°C | 1 kHz | 1.024" (26.00mm) |
|
VLS3012T-3R3M1R3FIXED IND 3.3UH 1.3A 120MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.3 A | 1.3A | - | Shielded | 120mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
VLS3012T-6R8MR90FIXED IND 6.8UH 900MA 228MOHM SM |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 900 mA | 900mA | - | Shielded | 228mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
VLS3015T-150MR58FIXED IND 15UH 580MA 422MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 580 mA | 580mA | - | Shielded | 422mOhm Max | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
VLS4012T-100MR82FIXED IND 10UH 820MA 240MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 820 mA | 890mA | - | Shielded | 240mOhm Max | 10 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
VLS4012T-150MR65FIXED IND 15UH 650MA 372MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 650 mA | 700mA | - | Shielded | 372mOhm Max | 15 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
VLS4012T-1R0N1R6FIXED IND 1UH 1.6A 60 MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.6 A | 2.5A | - | Shielded | 60mOhm Max | 1 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
VLS4012T-220MR57FIXED IND 22UH 570MA 492MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 570 mA | 630mA | - | Shielded | 492mOhm Max | 22 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
VLS4012T-2R2M1R4FIXED IND 2.2UH 1.4A 84 MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.4 A | 1.7A | - | Shielded | 84mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
VLS4012T-330MR44FIXED IND 33UH 440MA 816MOHM SMD |
0 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 440 mA | 470mA | - | Shielded | 816mOhm Max | 33 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
