固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200LL-270-V-RCFIXED IND 27UH 11.8A 9 MOHM TH |
0 | - |
|
数据表 |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 11.8 A | - | - | Unshielded | 9mOhm Max | 27 µH | - | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
2300LL-331-H-RCFIXED IND 330UH 4.6A 79 MOHM TH |
0 | - |
|
数据表 |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.6 A | - | - | Shielded | 79mOhm Max | 330 µH | - | - | Through Hole | - | 1.280" Dia (32.51mm) | - | -55°C ~ 125°C | 1 kHz | 0.650" (16.51mm) |
|
2300LL-2R7-V-RCFIXED IND 2.7UH 29.4A 2 MOHM TH |
0 | - |
|
数据表 |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±20% | 29.4 A | - | - | Shielded | 2mOhm Max | 2.7 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
2300LL-331-V-RCFIXED IND 330UH 4.6A 79 MOHM TH |
0 | - |
|
数据表 |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.6 A | - | - | Shielded | 79mOhm Max | 330 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
2300LL-391-V-RCFIXED IND 390UH 4.4A 85 MOHM TH |
0 | - |
|
数据表 |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.4 A | - | - | Shielded | 85mOhm Max | 390 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
2300LL-681-V-RCFIXED IND 680UH 3.8A 113 MOHM TH |
0 | - |
|
数据表 |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 3.8 A | - | - | Shielded | 113mOhm Max | 680 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
NLC453232T-3R9K-PFFIXED IND 3.9UH 700MA 240MOHM SM |
0 | - |
|
数据表 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | - | 1812 | Unshielded | 240mOhm Max | 3.9 µH | 10 @ 7.96MHz | 40MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.134" (3.40mm) |
|
|
NLC453232T-820K-PFFIXED IND 82UH 200MA 3.5 OHM SMD |
0 | - |
|
数据表 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 200 mA | - | 1812 | Unshielded | 3.5Ohm Max | 82 µH | 10 @ 2.52MHz | 9MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.134" (3.40mm) |
|
PE-0402CD3N3JTGFIXED IND 3.3NH 840MA 66MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 840 mA | - | 0402 (1005 Metric) | Unshielded | 66mOhm Max | 3.3 nH | 20 @ 250MHz | 6GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0402CD6N8JTGFIXED IND 6.8NH 680MA 83 MOHM |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ceramic | ±5% | 680 mA | - | 0402 (1005 Metric) | Unshielded | 83mOhm Max | 6.8 nH | 20 @ 250MHz | 5.8GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0402CD8N2JTGFIXED IND 8.2NH 680MA 104MOHM SM |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 680 mA | - | 0402 (1005 Metric) | Unshielded | 104mOhm Max | 8.2 nH | 25 @ 250MHz | 4.4GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0402CD100JTGFIXED IND 10NH 480MA 195MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 480 mA | - | 0402 (1005 Metric) | Unshielded | 195mOhm Max | 10 nH | 21 @ 250MHz | 3.9GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0402CD270JTGFIXED IND 27NH 400MA 298MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0402 (1005 Metric) | Unshielded | 298mOhm Max | 27 nH | 26 @ 250MHz | 2.48GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
PE-0603CDR12JTTFIXED IND 120NH 300MA 650MOHM SM |
0 | - |
|
数据表 |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 650mOhm Max | 120 nH | 32 @ 150MHz | 1.3GHz | Surface Mount | - | 0.071" L x 0.049" W (1.80mm x 1.24mm) | - | -40°C ~ 125°C | 150 MHz | 0.040" (1.02mm) |
|
P1167.394NLTFIXED IND 390UH 320MA 1.57 OHM |
0 | - |
|
数据表 |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 320 mA | 320mA | - | Shielded | 1.57Ohm Max | 390 µH | - | 2.8MHz | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | - | -40°C ~ 130°C | 100 kHz | 0.177" (4.50mm) |
|

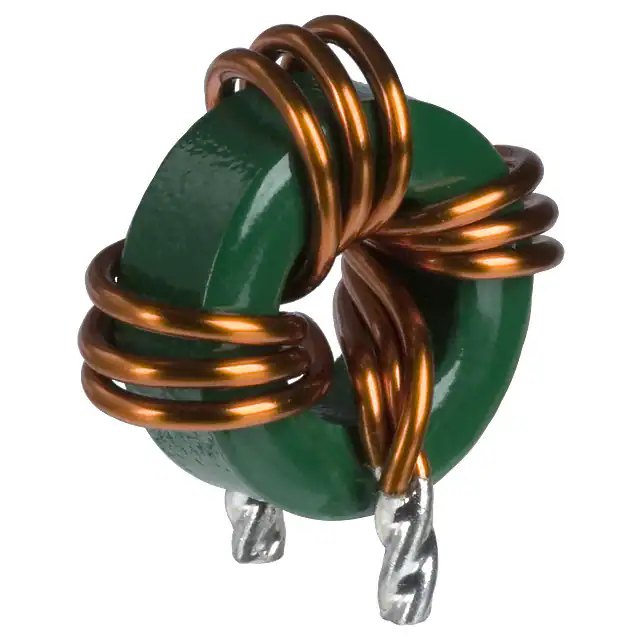

PG0122FIXED IND 480NH 30.5A 2 MOHM TH |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | - | 30.5 A | - | - | Unshielded | 2mOhm Max | 480 nH | - | - | Through Hole | - | 0.807" Dia x 0.374" W (20.50mm x 9.50mm) | - | -40°C ~ 130°C | - | - |
|
PA0690FIXED IND 880NH 22.5A 1.5MOHM TH |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 22.5 A | - | - | Unshielded | 1.5mOhm Max | 880 nH | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - | -40°C ~ 130°C | - | - |
|
PA0689FIXED IND 1.7UH 21.5A 2 MOHM TH |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 21.5 A | - | - | Unshielded | 2mOhm Max | 1.7 µH | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - | -40°C ~ 130°C | - | - |
|
P1967LFIXED IND 1.44UH 23.8A 3.8 MOHM |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 23.8 A | - | - | Unshielded | 3.8mOhm Max | 1.44 µH | - | - | Through Hole | - | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) | - | -40°C ~ 130°C | - | - |
|

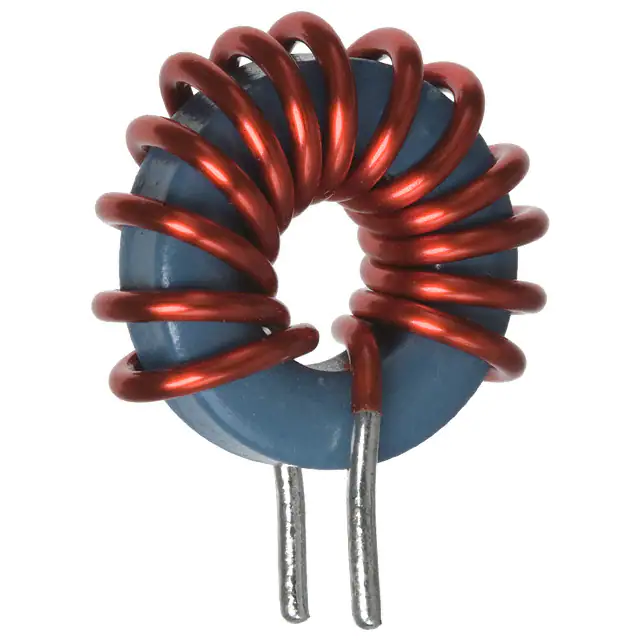

PA0431LFIXED IND 7.8UH 20.5A 5.5MOHM TH |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Bag | Active | Toroidal | - | ±20% | 20.5 A | - | - | Unshielded | 5.5mOhm Max | 7.8 µH | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - | -40°C ~ 130°C | - | - |
