固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD73-823MFIXED IND 82UH 579MA 690MOHM SMD |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 579 mA | 579mA | - | Shielded | 690mOhm Max | 82 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 1 kHz | 0.154" (3.90mm) |
|
|
SPD73-824MFIXED IND 820UH 188MA 6.54OHM SM |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 188 mA | 188mA | - | Shielded | 6.54Ohm Max | 820 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 1 kHz | 0.154" (3.90mm) |
|
100217FIXED IND 6.8UH 1.3A 170 MOHM TH |
0 | - |
|
数据表 |
M | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 1.3 A | - | - | Unshielded | 170mOhm Max | 6.8 µH | 70 @ 7.9MHz | 65MHz | Through Hole | - | 0.250" Dia x 0.600" L (6.35mm x 15.24mm) | - | - | 7.9 MHz | - |
|

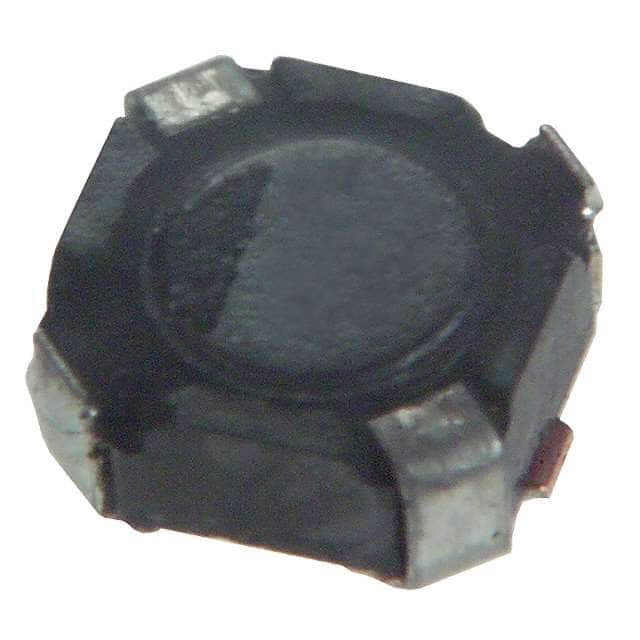

ELL-3GM2R2NFIXED IND 2.2UH 1.1A 100MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.1 A | - | - | Shielded | 100mOhm | 2.2 µH | - | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|
|
ELL-3GM3R3NFIXED IND 3.3UH 980MA 130MOHM SM |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 980 mA | - | - | Shielded | 130mOhm | 3.3 µH | - | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|
|
ELL-3GM6R8NFIXED IND 6.8UH 650MA 280MOHM SM |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 650 mA | - | - | Shielded | 280mOhm | 6.8 µH | - | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|
|
ELL-3GM100MFIXED IND 10UH 550MA 350MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 550 mA | - | - | Shielded | 350mOhm | 10 µH | - | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|
|
ELL-3GM330MFIXED IND 33UH 310MA 1.2 OHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 310 mA | - | - | Shielded | 1.2Ohm | 33 µH | - | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | - | 100 kHz | 0.059" (1.50mm) |
|
ELL-4LM1R0NFIXED IND 1UH 2A 26 MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2 A | - | - | Shielded | 26mOhm | 1 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | - | 100 kHz | 0.071" (1.80mm) |
|
|
ELL-4LM3R3NFIXED IND 3.3UH 1.1A 62 MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.1 A | - | - | Shielded | 62mOhm | 3.3 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | - | 100 kHz | 0.071" (1.80mm) |
|
|
ELL-4LM100MFIXED IND 10UH 690MA 180MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 690 mA | - | - | Shielded | 180mOhm | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | - | 100 kHz | 0.071" (1.80mm) |
|
|
ELL-4LM120MFIXED IND 12UH 530MA 200MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 530 mA | - | - | Shielded | 200mOhm | 12 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | - | 100 kHz | 0.071" (1.80mm) |
|
|
ELL-4LM150MFIXED IND 15UH 500MA 300MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 500 mA | - | - | Shielded | 300mOhm | 15 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | - | 100 kHz | 0.071" (1.80mm) |
|

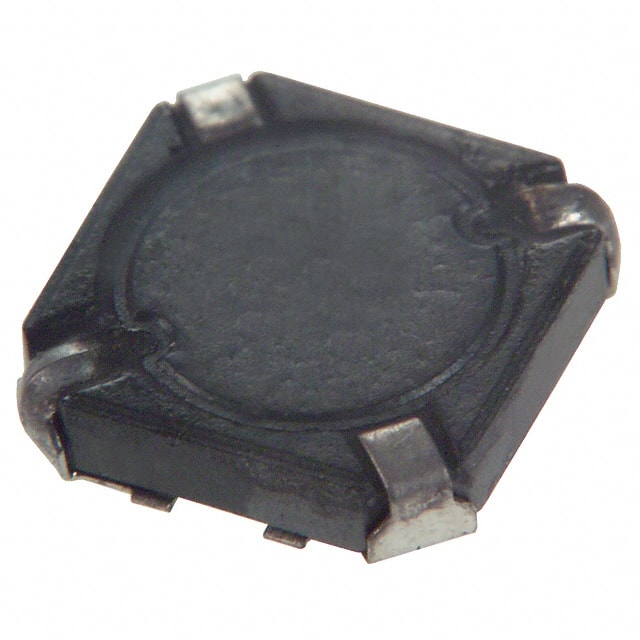

ELL-6GM7R5NFIXED IND 7.5UH 1.05A 110MOHM SM |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.05 A | - | - | Shielded | 110mOhm | 7.5 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.063" (1.60mm) |
|
|
ELL-6GM100MFIXED IND 10UH 930MA 150MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 930 mA | - | - | Shielded | 150mOhm | 10 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.063" (1.60mm) |
|
|
ELL-6GM220MFIXED IND 22UH 620MA 320MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 620 mA | - | - | Shielded | 320mOhm | 22 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.063" (1.60mm) |
|
|
ELL-6GM560MFIXED IND 56UH 380MA 700MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 380 mA | - | - | Shielded | 700mOhm | 56 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.063" (1.60mm) |
|

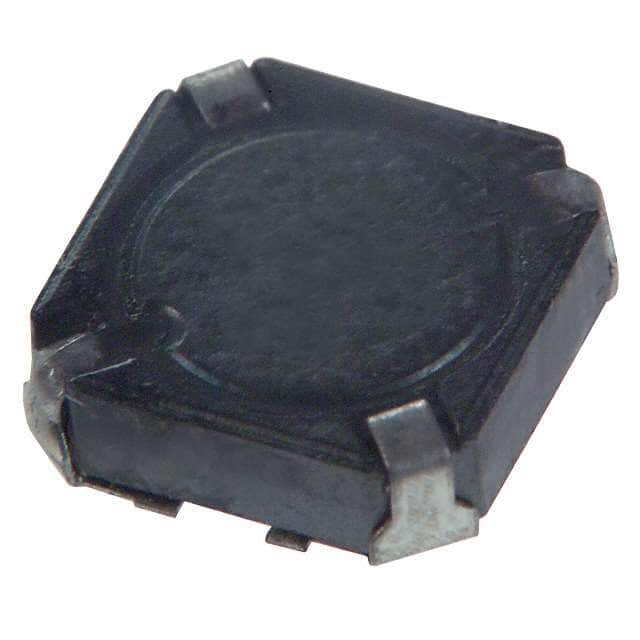

ELL-6PM3R3NFIXED IND 3.3UH 1.85A 35MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.85 A | - | - | Shielded | 35mOhm | 3.3 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-6PM7R5NFIXED IND 7.5UH 1.3A 70 MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.3 A | - | - | Shielded | 70mOhm | 7.5 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-6PM100MFIXED IND 10UH 1A 85 MOHM SMD |
0 | - |
|
数据表 |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1 A | - | - | Shielded | 85mOhm | 10 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
