固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1130-182KFIXED IND 1.8MH 1.6A 705 MOHM TH |
0 | - |
|
数据表 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 705mOhm Max | 1.8 mH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1130-222KFIXED IND 2.2MH 1.3A 1.02 OHM TH |
0 | - |
|
数据表 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | - | - | Unshielded | 1.02Ohm Max | 2.2 mH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1130-272KFIXED IND 2.7MH 1.3A 1.14 OHM TH |
0 | - |
|
数据表 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | - | - | Unshielded | 1.14Ohm Max | 2.7 mH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
1140-2R2MFIXED IND 2.2UH 27A 2 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 27 A | - | - | Unshielded | 2mOhm Max | 2.2 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-4R7MFIXED IND 4.7UH 27A 3 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 27 A | - | - | Unshielded | 3mOhm Max | 4.7 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-330KFIXED IND 33UH 21A 11 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 21 A | - | - | Unshielded | 11mOhm Max | 33 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-151KFIXED IND 150UH 11.4A 40 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 11.4 A | - | - | Unshielded | 40mOhm Max | 150 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-181KFIXED IND 180UH 11.4A 45 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 11.4 A | - | - | Unshielded | 45mOhm Max | 180 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-391KFIXED IND 390UH 9A 82 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 9 A | - | - | Unshielded | 82mOhm Max | 390 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-471KFIXED IND 470UH 7.2A 114 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 7.2 A | - | - | Unshielded | 114mOhm Max | 470 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-681KFIXED IND 680UH 7.2A 139 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 7.2 A | - | - | Unshielded | 139mOhm Max | 680 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-102KFIXED IND 1MH 5.5A 216 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 5.5 A | - | - | Unshielded | 216mOhm Max | 1 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-152KFIXED IND 1.5MH 4.5A 324 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.5 A | - | - | Unshielded | 324mOhm Max | 1.5 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-272KFIXED IND 2.7MH 4A 555 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4 A | - | - | Unshielded | 555mOhm Max | 2.7 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-332KFIXED IND 3.3MH 2.8A 773 MOHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | - | - | Unshielded | 773mOhm Max | 3.3 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-562KFIXED IND 5.6MH 2A 1.6 OHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 2 A | - | - | Unshielded | 1.6Ohm Max | 5.6 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-822KFIXED IND 8.2MH 1.6A 1.95 OHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 1.95Ohm Max | 8.2 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
|
1140-123KFIXED IND 12MH 1.3A 3.04 OHM TH |
0 | - |
|
数据表 |
1140 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | - | - | Unshielded | 3.04Ohm Max | 12 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|

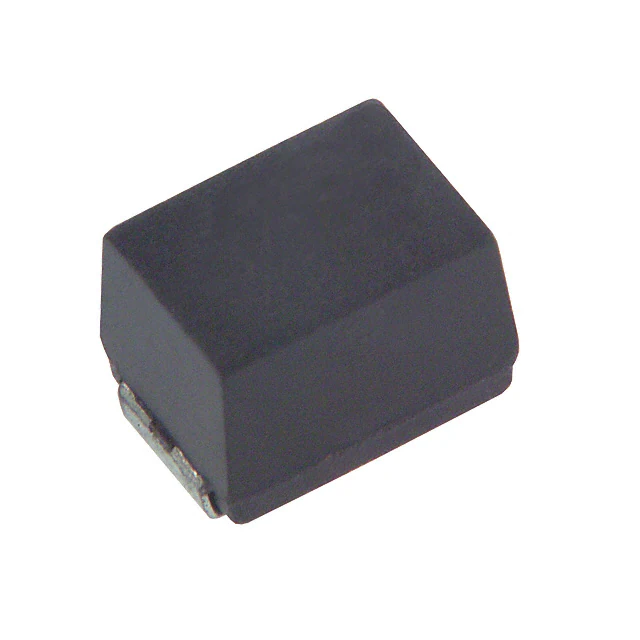

ELJ-PB180KFFIXED IND 18UH 310MA 900MOHM SMD |
0 | - |
|
数据表 |
PB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 310 mA | - | 1812 | Unshielded | 900mOhm Max | 18 µH | 10 @ 2.52MHz | 14MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -20°C ~ 85°C | 2.52 MHz | 0.134" (3.40mm) |
|

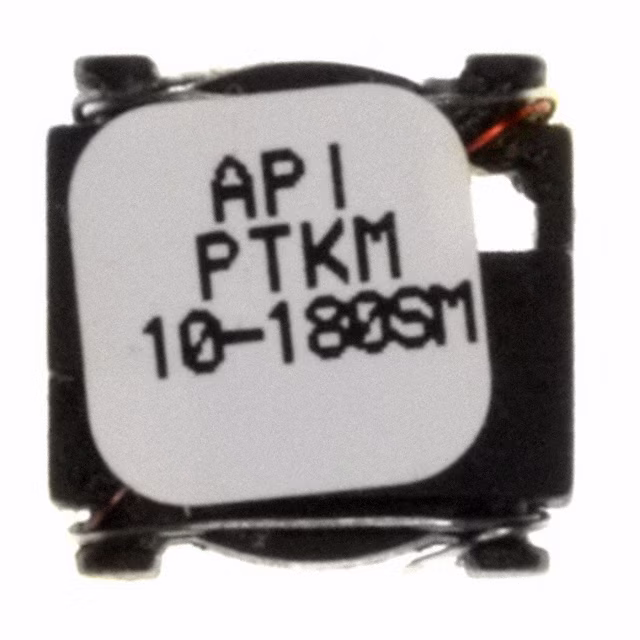

PTKM10-180SMFIXED IND 10UH 1.6A 100 MOHM SMD |
0 | - |
|
数据表 |
PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | ±10% | 1.6 A | 430mA | - | Shielded | 100mOhm Max | 10 µH | - | 35MHz | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | - | - | 1 kHz | 0.300" (7.62mm) |
