固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744775139FIXED IND 39UH 1.25A 160MOHM SMD |
428 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.25 A | 1.33A | - | Unshielded | 160mOhm Max | 39 µH | - | 12.5MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
744775360FIXED IND 6MH 180MA 18 OHM SMD |
425 | - |
|
数据表 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | 90mA | - | Unshielded | 18Ohm Max | 6 mH | - | 600kHz | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
|
744775115FIXED IND 15UH 1.93A 90 MOHM SMD |
425 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.93 A | 2.23A | - | Unshielded | 90mOhm Max | 15 µH | - | 20MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
744775239FIXED IND 390UH 380MA 1.77OHM SM |
417 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 380 mA | 430mA | - | Unshielded | 1.77Ohm Max | 390 µH | - | 3.9MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
FP1308-R32-RFIXED IND 320NH 68A 0.24MOHM SMD |
383 | - |
|
数据表 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 68 A | 45A | - | Unshielded | 0.24mOhm Max | 320 nH | - | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|

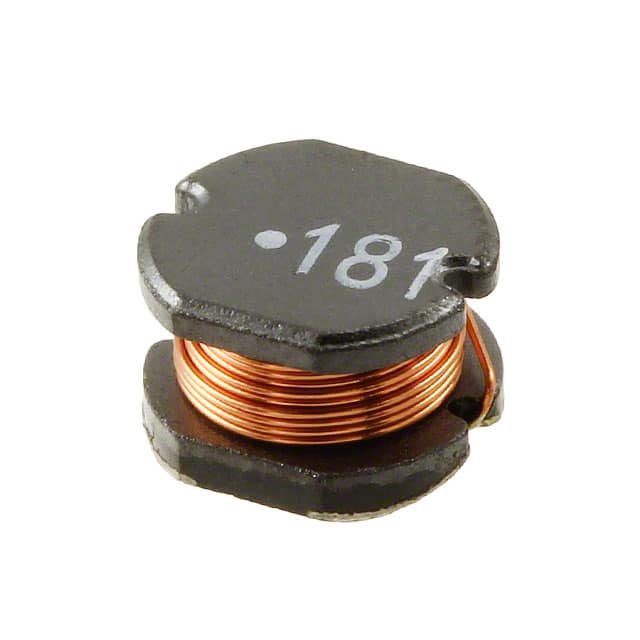

744775218FIXED IND 180UH 550MA 710MOHM SM |
372 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 550 mA | 570mA | - | Unshielded | 710mOhm Max | 180 µH | - | 5.8MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
0402CS-3N9XGRWFIXED IND 3.9NH 840MA 66MOHM SM |
19,614 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 840 mA | - | 0402 | Unshielded | 66mOhm Max | 3.9 nH | 50 @ 900MHz | 6GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-7N5XGRWFIXED IND 7.5NH 680MA 100MOHM SM |
19,023 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 680 mA | - | 0402 | Unshielded | 100mOhm Max | 7.5 nH | 60 @ 900MHz | 4.8GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-2N2XGRWFIXED IND 2.2NH 960MA 70MOHM SM |
17,510 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 960 mA | - | 0402 | Unshielded | 70mOhm Max | 2.2 nH | 59 @ 900MHz | 10.8GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-24NXGRWFIXED IND 24NH 400MA 300MOHM SM |
17,216 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 400 mA | - | 0402 | Unshielded | 300mOhm Max | 24 nH | 51 @ 900MHz | 2.7GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-30NXGRWFIXED IND 30NH 400MA 300MOHM SM |
17,056 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 400 mA | - | 0402 | Unshielded | 300mOhm Max | 30 nH | 46 @ 900MHz | 2.35GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-36NXGRWFIXED IND 36NH 320MA 440MOHM SM |
15,838 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 320 mA | - | 0402 | Unshielded | 440mOhm Max | 36 nH | 44 @ 900MHz | 2.32GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-6N2XGRWFIXED IND 6.2NH 760MA 83MOHM SM |
13,680 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 760 mA | - | 0402 | Unshielded | 83mOhm Max | 6.2 nH | 52 @ 900MHz | 4.8GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-16NXGRWFIXED IND 16NH 560MA 220MOHM SM |
11,378 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 560 mA | - | 0402 | Unshielded | 220mOhm Max | 16 nH | 46 @ 900MHz | 3.1GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-5N1XGRWFIXED IND 5.1NH 800MA 83MOHM SM |
11,090 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 800 mA | - | 0402 | Unshielded | 83mOhm Max | 5.1 nH | 56 @ 900MHz | 4.8GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-33NXGRWFIXED IND 33NH 400MA 300MOHM SM |
11,029 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 400 mA | - | 0402 | Unshielded | 300mOhm Max | 33 nH | 31 @ 900MHz | 2.35GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-39NXGRWFIXED IND 39NH 200MA 550MOHM SM |
10,298 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 200 mA | - | 0402 | Unshielded | 550mOhm Max | 39 nH | 47 @ 900MHz | 2.1GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-5N6XGRWFIXED IND 5.6NH 760MA 83MOHM SM |
9,610 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 760 mA | - | 0402 | Unshielded | 83mOhm Max | 5.6 nH | 54 @ 900MHz | 4.8GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-82NXGRWFIXED IND 82NH 50MA 1.55OHM SM |
9,413 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 50 mA | - | 0402 | Unshielded | 1.55Ohm Max | 82 nH | - | 1.26GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
0402CS-1N8XGRWFIXED IND 1.8NH 1.04A 70MOHM SM |
9,221 | - |
|
数据表 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 1.04 A | - | 0402 | Unshielded | 70mOhm Max | 1.8 nH | 54 @ 900MHz | 12GHz | Surface Mount | AEC-Q200 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
