固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

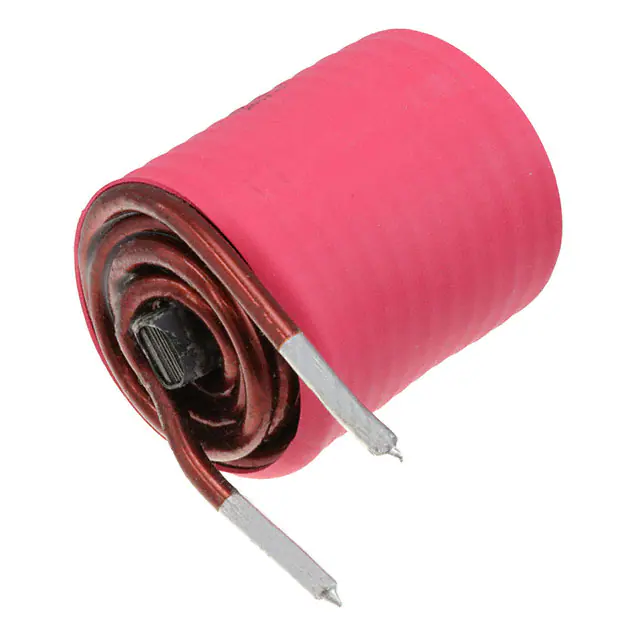

IHV45BZ92FIXED IND 92UH 45A 7.5 MOHM TH |
0 | - |
|
数据表 |
IHV | Radial, Horizontal Cylinder | - | Active | - | Iron | ±10% | 45 A | - | - | Unshielded | 7.5mOhm Max | 92 µH | - | 2.9MHz | Through Hole | - | 1.920" Dia x 2.550" L (48.77mm x 64.77mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
GT10-115BVERTICAL MOUNT TOROIDAL CHOKE |
0 | - |
|
数据表 |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | -12%, +30% | 7 A | - | Radial | Unshielded | 30mOhm Max | 96 µH | - | - | Through Hole | - | - | - | -55°C ~ 125°C | 1 kHz | - |
|
|
927T5006HIGH INDUCTANCE TOROID INDUCTOR |
0 | - |
|
数据表 |
T-Small | Radial | Bulk | Active | Toroidal | - | ±2% | 130 mA | - | Radial | Unshielded | 30Ohm Max | 500 mH | - | 20MHz | Through Hole | - | 1.400" Dia (35.56mm) | - | -40°C ~ 105°C | 1 kHz | 0.700" (17.78mm) |
|
|
047T5006HIGH INDUCTANCE TOROID INDUCTOR |
0 | - |
|
数据表 |
T-Small | Radial | Bulk | Active | Toroidal | - | ±2% | 28 mA | - | Radial | Unshielded | 110Ohm Max | 500 mH | - | 25MHz | Through Hole | - | 0.700" Dia (17.78mm) | - | -40°C ~ 105°C | 1 kHz | 0.400" (10.16mm) |
|
|
PFC383637B-181MHFPFC CHOKE 185.0UH 32.4AMP 11.0M |
5 | - |
|
数据表 |
PFC | Vertical, 4 PC Pin | Bulk | Active | Wirewound | Alloy Powder | ±20% | 25.2 A | 16.7A | Vertical, 4 PC Pin | Unshielded | 11mOhm | 185 µH | - | - | Through Hole | - | 1.476" L x 1.437" W (37.50mm x 36.50mm) | - | -55°C ~ 150°C | 100 kHz | 1.417" (36.00mm) |
|
|
206T2007HIGH INDUCTANCE TOROID INDUCTOR |
0 | - |
|
数据表 |
T-Small | Radial | Bulk | Active | Toroidal | - | ±2% | 23 mA | - | Radial | Unshielded | 13Ohm Max | 2 H | - | 480kHz | Through Hole | - | 1.100" Dia (27.94mm) | - | -40°C ~ 105°C | 1 kHz | 0.500" (12.70mm) |
|
|
160-101HSFIXED IND 100NH 1.295A 75MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 1.295 A | - | - | Unshielded | 75mOhm Max | 100 nH | 50 @ 25MHz | 600MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-121HSFIXED IND 120NH 1.295A 75MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 1.295 A | - | - | Unshielded | 75mOhm Max | 120 nH | 50 @ 25MHz | 550MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-151HSFIXED IND 150NH 1.22A 85MOHM SMD |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 1.22 A | - | - | Unshielded | 85mOhm Max | 150 nH | 50 @ 25MHz | 420MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-181HSFIXED IND 180NH 1.125A 100 MOHM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 1.125 A | - | - | Unshielded | 100mOhm Max | 180 nH | 50 @ 25MHz | 390MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-221HSFIXED IND 220NH 1.07A 110MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 1.07 A | - | - | Unshielded | 110mOhm Max | 220 nH | 50 @ 25MHz | 340MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-271HSFIXED IND 270NH 1.025A 120 MOHM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 1.025 A | - | - | Unshielded | 120mOhm Max | 270 nH | 50 @ 25MHz | 290MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-301HSFIXED IND 300NH 985MA 130MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 985 mA | - | - | Unshielded | 130mOhm Max | 300 nH | 50 @ 25MHz | 250MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-331HSFIXED IND 330NH 950MA 140MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 950 mA | - | - | Unshielded | 140mOhm Max | 330 nH | 50 @ 25MHz | 230MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-361HSFIXED IND 360NH 915MA 150MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 915 mA | - | - | Unshielded | 150mOhm Max | 360 nH | 50 @ 25MHz | 220MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-391HSFIXED IND 390NH 890MA 160MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 890 mA | - | - | Unshielded | 160mOhm Max | 390 nH | 50 @ 25MHz | 210MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-421HSFIXED IND 430NH 860MA 170MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 860 mA | - | - | Unshielded | 170mOhm Max | 430 nH | 50 @ 25MHz | 200MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-471HSFIXED IND 470NH 835MA 180MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 835 mA | - | - | Unshielded | 180mOhm Max | 470 nH | 50 @ 25MHz | 190MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-561HSFIXED IND 560NH 795MA 200MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 795 mA | - | - | Unshielded | 200mOhm Max | 560 nH | 50 @ 25MHz | 180MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
|
|
160-681HSFIXED IND 680NH 740MA 230MOHM SM |
0 | - |
|
数据表 |
160 | 2-SMD | Bulk | Active | - | Iron | ±3% | 740 mA | - | - | Unshielded | 230mOhm Max | 680 nH | 50 @ 25MHz | 170MHz | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
