固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

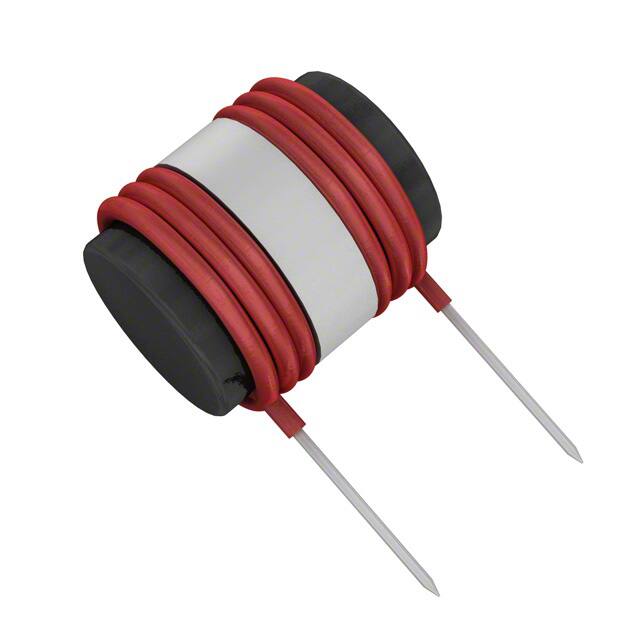

15HC-27FIXED IND 27UH 15A 15 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 14A | - | Unshielded | 15mOhm Max | 27 µH | - | - | Through Hole | - | 1.000" Dia x 1.375" L (25.40mm x 34.93mm) | - | - | 1 kHz | - |
|

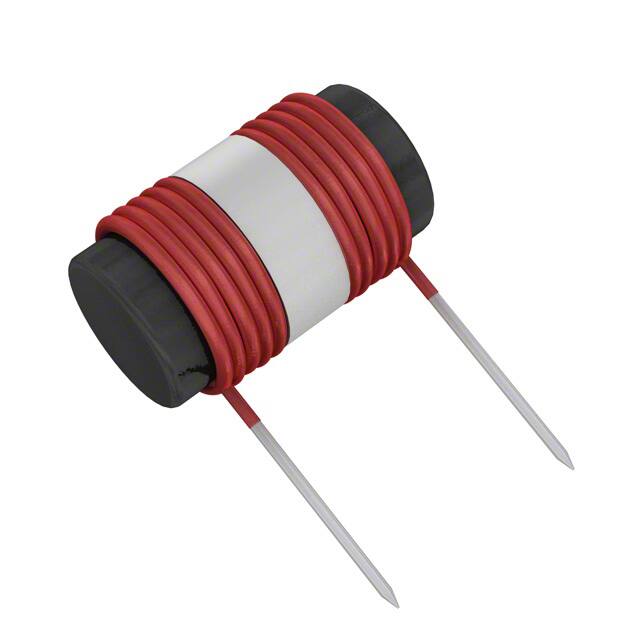

15HC-5FIXED IND 5UH 15A 8 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 20A | - | Unshielded | 8mOhm Max | 5 µH | - | - | Through Hole | - | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - | - | 1 kHz | - |
|
15HC-50FIXED IND 50UH 15A 20 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 9A | - | Unshielded | 20mOhm Max | 50 µH | - | - | Through Hole | - | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - | - | 1 kHz | - |
|
15HCR-10FIXED IND 10UH 15A 10 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 17A | - | Unshielded | 10mOhm Max | 10 µH | - | - | Through Hole | - | 0.725" Dia x 1.687" L (18.42mm x 42.85mm) | - | - | 1 kHz | - |
|
|
15HCR-100FIXED IND 100UH 15A 30 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 5A | - | Unshielded | 30mOhm Max | 100 µH | - | - | Through Hole | - | 1.500" Dia x 1.625" L (38.10mm x 41.28mm) | - | - | 1 kHz | - |
|
|
15HCR-27FIXED IND 27UH 15A 15 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 14A | - | Unshielded | 15mOhm Max | 27 µH | - | - | Through Hole | - | 1.000" Dia x 1.375" L (25.40mm x 34.93mm) | - | - | 1 kHz | - |
|
|
15HCR-5FIXED IND 5UH 15A 8 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 20A | - | Unshielded | 8mOhm Max | 5 µH | - | - | Through Hole | - | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - | - | 1 kHz | - |
|
|
15HCR-50FIXED IND 50UH 15A 20 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 15 A | 9A | - | Unshielded | 20mOhm Max | 50 µH | - | - | Through Hole | - | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - | - | 1 kHz | - |
|
10HC-10FIXED IND 10UH 10A 12 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 17A | - | Unshielded | 12mOhm Max | 10 µH | - | - | Through Hole | - | 1.375" Dia x 0.687" L (34.93mm x 17.45mm) | - | - | 1 kHz | - |
|
10HC-100FIXED IND 100UH 10A 30 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 6A | - | Unshielded | 30mOhm Max | 100 µH | - | - | Through Hole | - | 1.625" Dia x 0.937" L (41.28mm x 23.80mm) | - | - | 1 kHz | - |
|
10HC-15FIXED IND 15UH 10A 15 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 16A | - | Unshielded | 15mOhm Max | 15 µH | - | - | Through Hole | - | 1.625" Dia x 0.687" L (41.28mm x 17.45mm) | - | - | 1 kHz | - |
|
10HC-27FIXED IND 27UH 10A 18 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 15A | - | Unshielded | 18mOhm Max | 27 µH | - | - | Through Hole | - | 1.125" Dia x 0.937" L (28.58mm x 23.80mm) | - | - | 1 kHz | - |
|
10HC-5FIXED IND 5UH 10A 10 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 19A | - | Unshielded | 10mOhm Max | 5 µH | - | - | Through Hole | - | 1.125" Dia x 0.687" L (28.58mm x 17.45mm) | - | - | 1 kHz | - |
|
10HC-50FIXED IND 50UH 10A 25 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 9A | - | Unshielded | 25mOhm Max | 50 µH | - | - | Through Hole | - | 1.375" Dia x 0.937" L (34.93mm x 23.80mm) | - | - | 1 kHz | - |
|
10HC-68FIXED IND 68UH 10A 27 MOHM TH |
0 | - |
|
数据表 |
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 9A | - | Unshielded | 27mOhm Max | 68 µH | - | - | Through Hole | - | 1.375" Dia x 0.937" L (34.93mm x 23.80mm) | - | - | 1 kHz | - |
|
|
10HCR-10FIXED IND 10UH 10A 12 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 17A | - | Unshielded | 12mOhm Max | 10 µH | - | - | Through Hole | - | 1.375" Dia x 0.687" L (34.93mm x 17.45mm) | - | - | 1 kHz | - |
|
|
10HCR-100FIXED IND 100UH 10A 30 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 6A | - | Unshielded | 30mOhm Max | 100 µH | - | - | Through Hole | - | 1.625" Dia x 0.937" L (41.28mm x 23.80mm) | - | - | 1 kHz | - |
|
|
10HCR-15FIXED IND 15UH 10A 15 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 16A | - | Unshielded | 15mOhm Max | 15 µH | - | - | Through Hole | - | 1.625" Dia x 0.687" L (41.28mm x 17.45mm) | - | - | 1 kHz | - |
|
|
10HCR-27FIXED IND 27UH 10A 18 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 15A | - | Unshielded | 18mOhm Max | 27 µH | - | - | Through Hole | - | 1.125" Dia x 0.937" L (28.58mm x 23.80mm) | - | - | 1 kHz | - |
|
|
10HCR-5FIXED IND 5UH 10A 10 MOHM TH |
0 | - |
|
数据表 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | 19A | - | Unshielded | 10mOhm Max | 5 µH | - | - | Through Hole | - | 1.125" Dia x 0.687" L (28.58mm x 17.45mm) | - | - | 1 kHz | - |
