固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

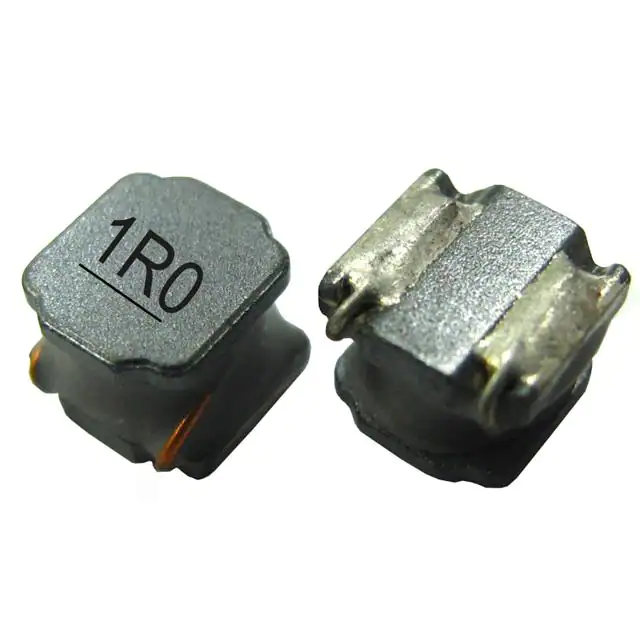

AWVF00303015100M00INDUCTOR POWER |
13,369 | - |
|
数据表 |
AWVF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1 A | 1.06A | 1212 | Shielded | 360mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
IHHP1008ABER2R2M01FIXED IND 2.2UH 2.3A 90 MOHM SMD |
13,288 | - |
|
数据表 |
IHHP-1008AB-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 2.3 A | 2.7A | - | Shielded | 90mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
B82496C3100J000FIXED IND 10NH 600MA 200MOHM SMD |
13,050 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | Unshielded | 200mOhm Max | 10 nH | 14 @ 100MHz | 5GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 100 MHz | 0.035" (0.90mm) |
|
|
B82496C3689J000FIXED IND 6.8NH 700MA 150MOHM SM |
12,371 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 (1608 Metric) | Unshielded | 150mOhm Max | 6.8 nH | 14 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 100 MHz | 0.035" (0.90mm) |
|
|
B82496C3150J000FIXED IND 15NH 420MA 400MOHM SMD |
11,448 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 420 mA | - | 0603 (1608 Metric) | Unshielded | 400mOhm Max | 15 nH | 14 @ 100MHz | 4.5GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 100 MHz | 0.035" (0.90mm) |
|
LQW15CAR73J00DFIXED IND 730NH 200MA 1.95OHM SM |
11,372 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | - | Unshielded | 1.95Ohm Max | 730 nH | - | 810MHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
|
|
B82496C3399J000FIXED IND 3.9NH 1.1A 65 MOHM SMD |
11,315 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1.1 A | - | 0603 (1608 Metric) | Unshielded | 65mOhm Max | 3.9 nH | 14 @ 100MHz | 8GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 100 MHz | 0.035" (0.90mm) |
|
|
B82496C3279A000FIXED IND 2.7NH 1.4A 40 MOHM SMD |
10,741 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.3nH | 1.4 A | - | 0603 (1608 Metric) | Unshielded | 40mOhm Max | 2.7 nH | 14 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 100 MHz | 0.035" (0.90mm) |
|
744373560033FIXED IND 330NH 16A 0.00257OHM |
1,000 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 16 A | 51.9A | 8030 | Shielded | 2.57mOhm Max | 330 nH | - | 95MHz | Surface Mount | - | 0.362" L x 0.335" W (9.20mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CLF12555T-680M-DFIXED IND 68UH 1.6A 150 MOHM SMD |
993 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 2.6A | - | Shielded | 150mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.476" W (12.50mm x 12.10mm) | - | -40°C ~ 150°C | 100 kHz | 0.230" (5.85mm) |
.jpg)
|
LQP03TG1N3B02DFIXED IND 1.3NH 600MA 150MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 600 mA | - | 0201 (0603 Metric) | Unshielded | 150mOhm Max | 1.3 nH | 13 @ 500MHz | 15GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
744373580022FIXED IND 220NH 22.5A 0.00135OHM |
799 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 22.5 A | 80.4A | 8040 | Shielded | 1.35mOhm Max | 220 nH | - | 145MHz | Surface Mount | - | 0.362" L x 0.335" W (9.20mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
744373580082FIXED IND 820NH 14.5A 0.00388OHM |
774 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 14.5 A | 41.6A | 8040 | Shielded | 3.88mOhm Max | 820 nH | - | 51MHz | Surface Mount | - | 0.362" L x 0.335" W (9.20mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
744373580033FIXED IND 330NH 18.5A 0.00215OHM |
704 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 18.5 A | 67.2A | 8040 | Shielded | 2.15mOhm Max | 330 nH | - | 96MHz | Surface Mount | - | 0.362" L x 0.335" W (9.20mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
744373560082FIXED IND 820NH 13.5A 0.00487OHM |
570 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 13.5 A | 40.9A | 8030 | Shielded | 4.87mOhm Max | 820 nH | - | 51MHz | Surface Mount | - | 0.362" L x 0.335" W (9.20mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
744373560047FIXED IND 470NH 15.5A 0.00333OHM |
471 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 15.5 A | 44.7A | 8030 | Shielded | 3.33mOhm Max | 470 nH | - | 72MHz | Surface Mount | - | 0.362" L x 0.335" W (9.20mm x 8.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
LQP03TG22NH02DFIXED IND 22NH 140MA 2.85OHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±3% | 140 mA | - | 0201 (0603 Metric) | Unshielded | 2.85Ohm Max | 22 nH | 9 @ 500MHz | 2.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
8230-64-RCFIXED IND 68UH 135MA 6.7 OHM TH |
184 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 135 mA | - | - | Unshielded | 6.7Ohm Max | 68 µH | 50 @ 2.5MHz | 15MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
|
LQP03TG5N6H02DFIXED IND 5.6NH 250MA 880MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±3% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 880mOhm Max | 5.6 nH | 12 @ 500MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TG1N9B02DFIXED IND 1.9NH 500MA 250MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 1.9 nH | 13 @ 500MHz | 12.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
