固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1170.223NLTFIXED IND 22UH 3A 45 MOHM SMD |
1,733 | - |
|
数据表 |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3 A | 3A | - | Shielded | 45mOhm Max | 22 µH | - | 14MHz | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | - | -40°C ~ 130°C | 100 kHz | 0.236" (6.00mm) |
|
|
P1171.223NLTFIXED IND 22UH 3A 45 MOHM SMD |
1,149 | - |
|
数据表 |
P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3 A | 3A | - | Shielded | 45mOhm Max | 22 µH | - | 14MHz | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | - | -40°C ~ 130°C | 100 kHz | 0.236" (6.00mm) |
|
MPXV1D0650L3R3FIXED IND 3.3UH 8.7A 18.9MOHM SM |
944 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 8.7 A | 8A | - | Shielded | 18.9mOhm Max | 3.3 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
SLF12565T-2R0N6R2-HFIXED IND 2UH 6.2A 9.6 MOHM SMD |
935 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 6.2 A | 10A | - | Shielded | 9.6mOhm Max | 2 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.270" (6.85mm) |
|
VLS3015CX-150M-HFIXED IND 15UH 840MA 0.428OHM SM |
3,462 | - |
|
数据表 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 840 mA | 570mA | 3015 | Shielded | 428mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
MCL1V0603-3R4-RIND 3.4NH 300MA 0.38 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

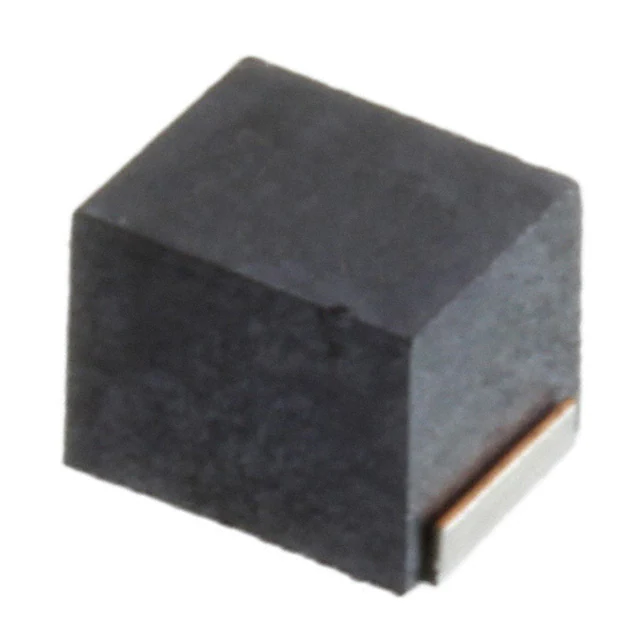

NLFV32T-330K-EFFIXED IND 33UH 95MA 780 MOHM SMD |
3,357 | - |
|
数据表 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 95 mA | - | 1210 (3225 Metric) | Shielded | 780mOhm Max | 33 µH | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.094" (2.40mm) |
|
|
1812PS-332JRCFIXED IND 3.3UH 2.3A 90MOHM SM |
339 | - |
|
数据表 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | ±5% | 2.3 A | 1.4A | 1812 | Shielded | 90mOhm Max | 3.3 µH | 40 @ 1MHz | 225MHz | Surface Mount | - | 0.231" L x 0.196" W (5.87mm x 4.98mm) | - | -40°C ~ 105°C | 100 kHz | 0.150" (3.80mm) |
|
|
NLFV32T-151K-EFFIXED IND 150UH 50MA 3.48OHM SMD |
3,269 | - |
|
数据表 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | - | 1210 (3225 Metric) | Shielded | 3.48Ohm Max | 150 µH | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 796 kHz | 0.094" (2.40mm) |
|
|
MCL1V0603-2R2-RIND 2.2NH 400MA 0.25 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASPIAIG-F4020-1R2M-TFIXED IND 1.2UH 9A 17.9 MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 7.8A | 4020 | Shielded | 17.9mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
VLS3010ET-3R3MFIXED IND 3.3UH 1A 156 MOHM SMD |
3,132 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | ±20% | 1 A | 1A | - | Shielded | 156mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
|
MCL1V0603-2R5-RIND 2.5NH 300MA 0.25 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASPIAIG-F4020-1R0M-TFIXED IND 1UH 9.6A 14.6 MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9.6 A | 8.8A | 4020 | Shielded | 14.6mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
VLS3015CX-1R0M-HFIXED IND 1UH 2.96A 0.038OHM SMD |
3,051 | - |
|
数据表 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.96 A | 2.3A | 3015 | Shielded | 38mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
MCL1V0603-3R2-RIND 3.2NH 300MA 0.30 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SRN2009T-2R2MFIXED IND 2.2UH 900MA 160MOHM SM |
2,633 | - |
|
数据表 |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 900mA | 0806 (2016 Metric) | Shielded | 160mOhm | 2.2 µH | 16 @ 1MHz | 150MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
|
|
ASPIAIG-F4020-R22M-TFIXED IND 220NH 16.8A 4.6MOHM SM |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 16.8 A | 18.8A | 4020 | Shielded | 4.6mOhm Max | 220 nH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
ASPIAIG-F4020-R40M-TFIXED IND 400NH 14A 7.73MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 14 A | 13.5A | 4020 | Shielded | 7.73mOhm Max | 400 nH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
SRN4012T-4R7MFIXED IND 4.7UH 1.5A 95 MOHM SMD |
2,339 | - |
|
数据表 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.2A | - | Shielded | 95mOhm | 4.7 µH | 6 @ 100kHz | 45MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
