固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDET25201T-2R2MSFIXED IND 2.2UH 1.5A 162MOHM SMD Delta Electronics/Cyntec |
4,256 | - |
|
数据表 |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 1.5 A | 1.39A | 1008 | Shielded | 162mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
SDEM25201T-R33MSFIXED IND 330NH 4.2A 0.029OHM SM Delta Electronics/Cyntec |
4,000 | - |
|
数据表 |
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 4.2 A | 5.85A | 2520 | Shielded | 29mOhm Max | 330 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
SDEM25201T-1R5MSFIXED IND 1.5UH 2.2A 0.1OHM SMD Delta Electronics/Cyntec |
3,883 | - |
|
数据表 |
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 2.2 A | 2.8A | 2520 | Shielded | 100mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
SDET25201T-3R3MSFIXED IND 3.3UH 1.2A 249MOHM SMD Delta Electronics/Cyntec |
3,632 | - |
|
数据表 |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 1.2 A | 1.17A | 1008 | Shielded | 249mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|

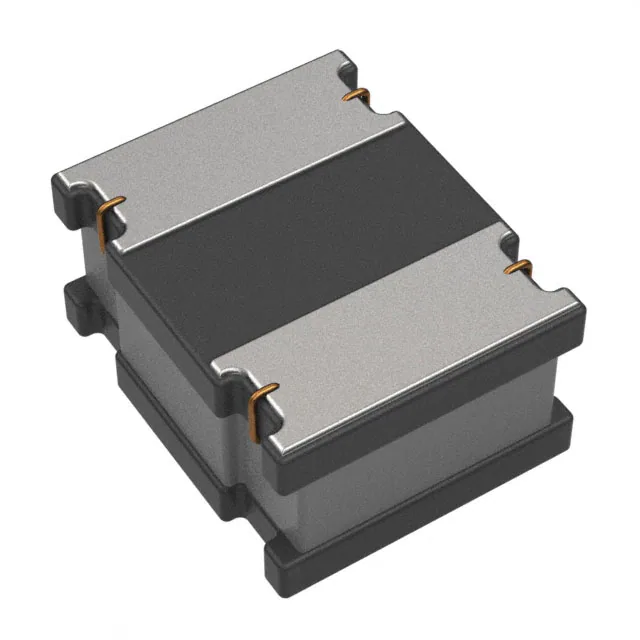

SDEM20161T-1R0MSFIXED IND 1UH 2.4A 0.072OHM SMD Delta Electronics/Cyntec |
3,578 | - |
|
数据表 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 2.4 A | 2.7A | 2016 | Shielded | 72mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
SDEM25201T-R68MSFIXED IND 680NH 3.2A 0.047OHM SM Delta Electronics/Cyntec |
3,382 | - |
|
数据表 |
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 3.2 A | 3.78A | 2520 | Shielded | 47mOhm Max | 680 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
SDET25201B-R47MSFIXED IND 470NH 3.7A 28.5MOHM SM Delta Electronics/Cyntec |
2,635 | - |
|
数据表 |
SDET25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 3.7 A | 3.5A | 1008 | Shielded | 28.5mOhm Max | 470 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
SDEM20161T-2R2MSFIXED IND 2.2UH 1.6A 0.159OHM SM Delta Electronics/Cyntec |
2,506 | - |
|
数据表 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 1.6 A | 1.7A | 2016 | Shielded | 159mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
HMLB25201B-2R2MSRFIXED IND 2.2UH 2.3A 95MOHM SMD Delta Electronics/Cyntec |
2,303 | - |
|
数据表 |
HMLB25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 2.3 A | 2.6A | 1008 | Shielded | 95mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
SDET25201B-4R7MSFIXED IND 4.7UH 1.25A 210MOHM SM Delta Electronics/Cyntec |
1,362 | - |
|
数据表 |
SDET25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 1.25 A | 1.4A | 1008 | Shielded | 210mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
