固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDO1608CF-104100 UH 20% SMD POWER INDUCTOR |
642 | - |
|
数据表 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 300 mA | 310mA | - | Unshielded | 1.3Ohm | 100 µH | - | 9MHz | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
|
CTDO1608CF-1021.0 UH 20% SMD POWER INDUCTOR |
397 | - |
|
数据表 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.9 A | 2.9A | - | Unshielded | 50mOhm | 1 µH | - | 130MHz | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
PE-53681NLFIXED IND 2.5UH 11.4A 5.4MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | - | 11.4 A | - | - | Unshielded | 5.4mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.670" L x 0.670" W (17.02mm x 17.02mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
|
CTDO1608CF-6826.8UH SMD POWER INDUCTOR |
378 | - |
|
数据表 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.4 A | 1.2A | - | Unshielded | 130mOhm | 6.8 µH | - | 45MHz | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
VLF504012MT-2R2M-CAFIXED IND 2.2UH 2.71A 55MOHM SMD |
329 | - |
|
数据表 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.71 A | 2.54A | - | Shielded | 55mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
MCL1V0603-R70-RIND 0.7NH 600MA 0.06 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCL1V0603-1R5-RIND 1.5NH 550MA 0.12 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCL1V0603-4R3-RIND 4.3NH 300MA 0.44 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCL1V0603-7R5-RIND 7.5NH 200MA 0.50 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCL1V0603-360-RIND 36NH 110MA 2.2 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCL1V0603-2R7-RIND 2.7NH 300MA 0.25 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPIA4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 MOHM SMD |
8,726 | - |
|
数据表 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 3.8 A | 5.5A | - | Shielded | 48mOhm Max | 2.2 µH | - | 33MHz | Surface Mount | AEC-Q200 | 0.195" L x 0.165" W (4.95mm x 4.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

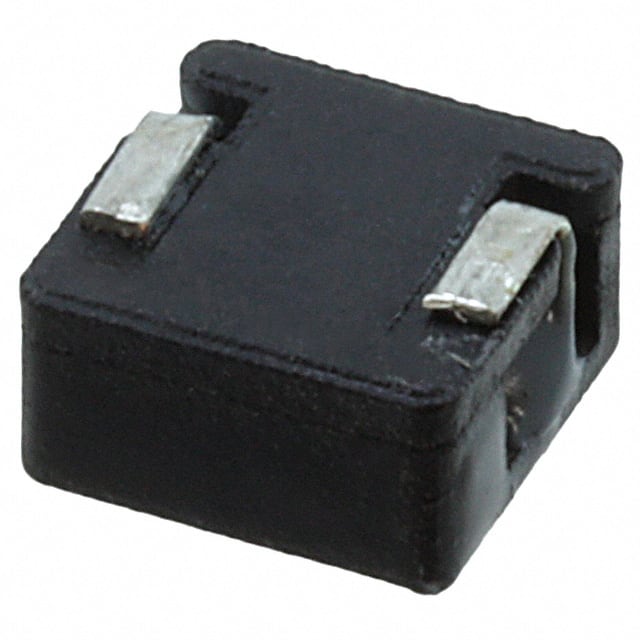

PG0083.182NLFIXED IND 1.8UH 8A 16 MOHM SMD |
3,018 | - |
|
数据表 |
PG0083 | Nonstandard | Tray | Active | Wirewound | - | ±25% | 8 A | 13A | - | Unshielded | 16mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 95°C | 100 kHz | 0.157" (4.00mm) |
|
8230-32-RCFIXED IND 3.3UH 380MA 850MOHM TH |
1,949 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 380 mA | - | - | Unshielded | 850mOhm Max | 3.3 µH | 45 @ 7.9MHz | 90MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
MCL1V0603-1R2-RIND 1.2NH 550MA 0.12 SMT |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TYA252012100M-10FIXED IND 10UH 850MA 480MOHM SMD |
9,868 | - |
|
数据表 |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 850 mA | 1.1A | 1007 | Shielded | 480mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.053" (1.35mm) |
-Height-1.20mm.jpg)
|
1239AS-H-1R0M=P2FIXED IND 1UH 3A 59 MOHM SMD |
9,513 | - |
|
数据表 |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 3 A | 3A | 1008 (2520 Metric) | Shielded | 59mOhm Max | 1 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.047" (1.20mm) |
|
VLS252012ET-3R3MFIXED IND 3.3UH 980MA 272MOHM SM |
9,008 | - |
|
数据表 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 980 mA | 1.25A | 1008 (2520 Metric) | Shielded | 272mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
1239AS-H-1R5M=P2FIXED IND 1.5UH 2.6A 72 MOHM SMD |
8,984 | - |
|
数据表 |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.4 A | 2.6A | 1008 (2520 Metric) | Shielded | 72mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.047" (1.20mm) |
|
VLS5045EX-100MFIXED IND 10UH 2.5A 79.3MOHM SMD |
8,055 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 3.1A | - | Shielded | 79.3mOhm Max | 10 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
