固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402DF-531XJRWFIXED IND 530NH 330MA 715MOHM SM |
1,956 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 330 mA | - | 0402 | Unshielded | 715mOhm Max | 530 nH | - | 1GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
1812PS-332KRCFIXED IND 3.3UH 2.3A 90MOHM SM |
1,946 | - |
|
数据表 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | ±10% | 2.3 A | 1.4A | 1812 | Shielded | 90mOhm Max | 3.3 µH | 40 @ 1MHz | 225MHz | Surface Mount | - | 0.231" L x 0.196" W (5.87mm x 4.98mm) | - | -40°C ~ 105°C | 100 kHz | 0.150" (3.80mm) |
|
|
0402DF-331XJRWFIXED IND 330NH 430MA 435MOHM SM |
1,662 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 430 mA | - | 0402 | Unshielded | 435mOhm Max | 330 nH | - | 1.34GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
|
0402DF-360XJRWFIXED IND 36NH 1.3A 55 MOHM SMD |
1,656 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 1.3 A | - | 0402 | Unshielded | 55mOhm Max | 36 nH | - | 2.4GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
PGL6312.101HLTINDUCTOR PWR BEAD 100NH 68A |
183 | - |
|
数据表 |
PGL6312.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 68 A | 80A | - | Shielded | 0.17mOhm | 100 nH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 130°C | 100 kHz | 0.394" (10.00mm) |
|
DRA124-471-RFIXED IND 470UH 568MA 1.32OHM SM |
120 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 568 mA | 911mA | - | Shielded | 1.32Ohm | 470 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.177" (4.50mm) |
|
SBC7-150-482FIXED IND 15UH 4.8A 30 MOHM TH |
1,000 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.8 A | 9.6A | - | Unshielded | 30mOhm Max | 15 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.551" (14.00mm) |
|
NR3015T150MFIXED IND 15UH 560MA 432MOHM SMD |
22,648 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 560 mA | 560mA | - | Shielded | 432mOhm Max | 15 µH | - | 23MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.059" (1.50mm) |
|
ASPI-2515-3R3M-T2FIXED IND 3.3UH 1.3A 138MOHM SMD |
21,595 | - |
|
数据表 |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.35A | - | Shielded | 138mOhm | 3.3 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.059" (1.50mm) |
|

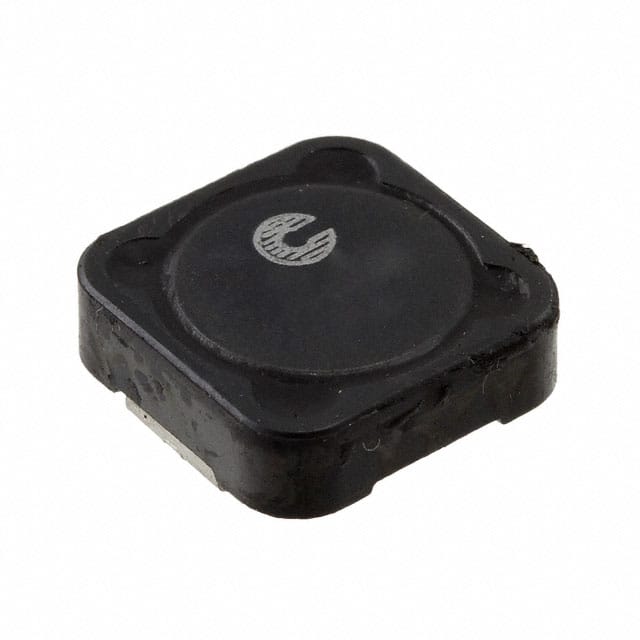

DR124-821-RFIXED IND 820UH 530MA 2.351 OHM |
748 | - |
|
数据表 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 530 mA | 620mA | - | Shielded | 2.351Ohm Max | 820 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
PAL6374.900AHLTIND POWER BEAD TLVR |
340 | - |
|
数据表 |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 77 A | 90A | - | Unshielded | 0.135mOhm | 90 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.472" (12.00mm) |
|
|
0402DF-300XJRWFIXED IND 30NH 1.3A 55 MOHM SMD |
1,622 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 1.3 A | - | 0402 | Unshielded | 55mOhm Max | 30 nH | - | 2.6GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
|
1812PS-153KRCFIXED IND 15UH 1.45A 260MOHM SM |
1,582 | - |
|
数据表 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | ±10% | 1.45 A | 700mA | 1812 | Shielded | 260mOhm Max | 15 µH | 40 @ 1MHz | 100MHz | Surface Mount | - | 0.231" L x 0.196" W (5.87mm x 4.98mm) | - | -40°C ~ 105°C | 100 kHz | 0.150" (3.80mm) |
|
|
0402DF-141XJRWFIXED IND 140NH 750MA 141MOHM SM |
1,486 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 750 mA | - | 0402 | Unshielded | 141mOhm Max | 140 nH | - | 1.45GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
|
1812PS-222KRCFIXED IND 2.2UH 2.4A 70MOHM SM |
1,389 | - |
|
数据表 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | ±10% | 2.4 A | 1.7A | 1812 | Shielded | 70mOhm Max | 2.2 µH | 38 @ 1MHz | 270MHz | Surface Mount | - | 0.231" L x 0.196" W (5.87mm x 4.98mm) | - | -40°C ~ 105°C | 100 kHz | 0.150" (3.80mm) |
|
DFE252012F-6R8M=P2FIXED IND 6.8UH 1.2A 0.33OHM SMD |
20,021 | - |
|
数据表 |
DFE252012F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 1.2 A | 1.7A | 2520 | Shielded | 330mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Flat Wire | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
0402DF-151XJRWFIXED IND 150NH 830MA 130MOHM SM |
1,368 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 830 mA | - | 0402 | Unshielded | 130mOhm Max | 150 nH | - | 1.8GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
DFE201610E-1R5M=P2FIXED IND 1.5UH 2.1A 91 MOHM SMD |
19,290 | - |
|
数据表 |
DFE201610E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 2.1 A | 2.9A | 0806 (2016 Metric) | Shielded | 91mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
CSBL0650-3R3MSMD HIGH CURRENT POWER INDUCTOR |
977 | - |
|
数据表 |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 9 A | 10.5A | - | Shielded | 9.8mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|
B78108S1223K000FIXED IND 22UH 560MA 740 MOHM TH |
18,724 | - |
|
数据表 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 560 mA | - | - | Unshielded | 740mOhm Max | 22 µH | 55 @ 2.52MHz | 13MHz | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - | - | 2.52 MHz | - |
