固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1275-1R5MSMD HIGH CURRENT POWER INDUCTOR CODACA |
260 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 28 A | 54A | - | Shielded | 1.61mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
CSBL1275-330MSMD HIGH CURRENT POWER INDUCTOR CODACA |
253 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 6 A | 8A | - | Shielded | 32.5mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.287" (7.30mm) |
|
|
CSBX1275-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
227 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 9.3 A | 16A | - | Shielded | 13.8mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
CSBL1275-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
218 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 9.3 A | 11A | - | Shielded | 13.8mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSBX1275-1R0MSMD HIGH CURRENT POWER INDUCTOR CODACA |
590 | - |
|
数据表 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 32 A | 68A | - | Shielded | 1mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSBX1275-470MFIX IND 47UH 5A 46.0MOHM SMD CODACA |
297 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 5 A | 8.2A | - | Shielded | 46mOhm Max | 47 µH | - | - | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | - | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
CSD0910B-3R3MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
220 | - |
|
数据表 |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 6 A | 10.5A | 4-SMD | Shielded | 11.5mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
CSBX1275-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
947 | - |
|
数据表 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 8 A | 12A | - | Shielded | 17.8mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.287" (7.30mm) |
|
|
CSD0910B-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
185 | - |
|
数据表 |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 2.5 A | 3.2A | 4-SMD | Shielded | 51.6mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
|

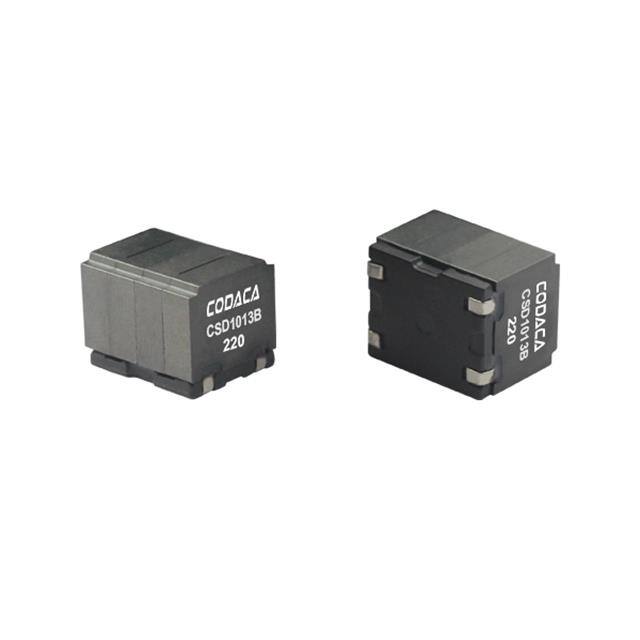

CSD1013B-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
268 | - |
|
数据表 |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 4.2 A | 7.1A | 4-SMD | Shielded | 18mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.413" (10.50mm) |
