固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL181S-683J-RCFIXED IND 68MH 11MA 67 OHM TH |
0 | - |
|
数据表 |
RL181S | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | ±5% | 11 mA | - | - | Shielded | 67Ohm Max | 68 mH | 100 @ 50kHz | 90kHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -55°C ~ 105°C | 1 kHz | 0.551" (14.00mm) |
|
HMS0864B-6R8IND SMD 6.8UH ASSEMBLY CHOKE |
0 | - |
|
数据表 |
HMS0864B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 5.8 A | 7.8A | - | Unshielded | 20mOhm | 6.8 µH | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
VCMT104T-470MN53MIND SMD 47.0UH AUTO GRADE CHOKE |
0 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.7 A | 2.7A | - | Unshielded | 178mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
VCMT104T-8R2MN53MIND SMD 8.2UH AUTO GRADE CHOKE |
0 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6.9 A | 6.1A | - | Unshielded | 29mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
AVR-1M100705SR16LTFIXED IND 160NH 60A 21MOHM |
0 | - |
|
数据表 |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VCMT104T-3R3MN53MIND SMD 3.3UH AUTO GRADE CHOKE |
0 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9.9 A | 10.3A | - | Unshielded | 11.8mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
VCMT104T-2R2MN53MIND SMD 2.2UH AUTO GRADE CHOKE |
0 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 11.1 A | 11.9A | - | Unshielded | 8.76mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
DFEG7030D-4R7M=P3FIXED IND 4.7UH 4.2A 41MOHM SMD |
973 | - |
|
数据表 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | ±20% | 4.2 A | 5.6A | - | Shielded | 41mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
VCMT104T-330MN5FIXED IND 33UH 3.6A 102MOHM SMD |
970 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 3.6 A | 3.6A | - | Unshielded | 102mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
DFEG7030D-8R2M=P3FIXED IND 8.2UH 3.1A 78MOHM SMD |
720 | - |
|
数据表 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | ±20% | 3.1 A | 4.2A | - | Shielded | 78mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
B82476A1332M000FIXED IND 3.3UH 5.4A 13.5MOHM SM |
633 | - |
|
数据表 |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.4 A | 6.4A | - | Unshielded | 13.5mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
VCMT104T-1R0MN5FIXED IND 1UH 18A 3.1 MOHM SMD |
627 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 18 A | 18A | - | Unshielded | 3.1mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
ASPIAIG-F1040-330M-TFIXED IND 33UH 3.5A 112 MOHM SMD |
480 | - |
|
数据表 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.5 A | 5A | 1040 | Shielded | 112mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
EXLA1V0707-1R0-RIND MOLDED SHLD 1.0UH 20.0A |
398 | - |
|
数据表 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 25 A | 31.8A | - | Shielded | 2.81mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
LTF4022T-220M-DFIXED IND 22UH 400MA 370MOHM SMD |
222 | - |
|
数据表 |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 660mA | - | Shielded | 370mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.157" W (5.50mm x 4.00mm) | - | -40°C ~ 150°C | 1 MHz | 0.087" (2.20mm) |
|
SBC9-6R8-492FIXED IND 6.8UH 4.9A 30 MOHM TH |
1,765 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.9 A | 12.1A | - | Unshielded | 30mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.472" (12.00mm) |
|
LQM2MPN1R0NG0LFIXED IND 1UH 1.4A 107 MOHM SMD |
9,108 | - |
|
数据表 |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±30% | 1.4 A | - | 0806 (2016 Metric) | Shielded | 107mOhm Max | 1 µH | - | 60MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|

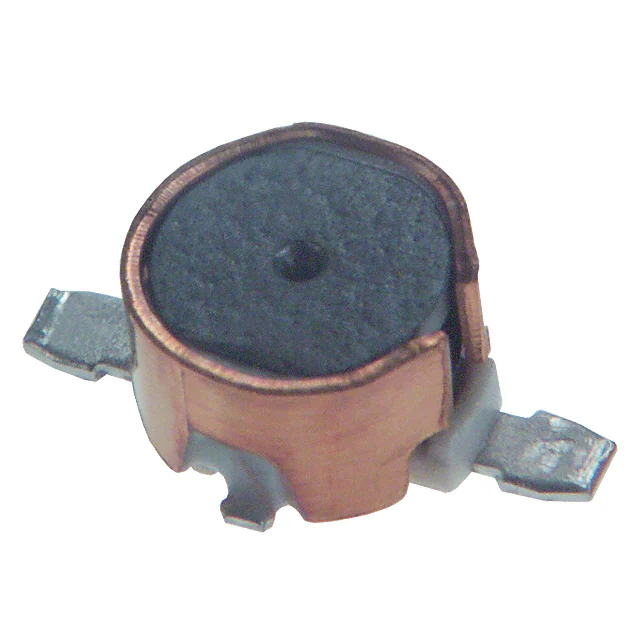

ELT-3KN124BFIXED IND 4MH 15MA 85OHM SMD |
1,761 | - |
|
数据表 |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 15 mA | - | - | Unshielded | 85Ohm | 4 mH | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | - | -20°C ~ 105°C | - | 0.087" (2.20mm) |
|
VLF403210MT-1R0N-CAFIXED IND 1UH 3.44A 32 MOHM SMD |
990 | - |
|
数据表 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.44 A | 2.23A | - | Shielded | 32mOhm Max | 1 µH | - | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
|
RL-5480HC-2-680FIXED IND 680UH .460A 1.81OHM TH |
0 | - |
|
数据表 |
RL-5480HC-2 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | - | ±10% | 460 mA | 520mA | Radial | Unshielded | 1.81Ohm Max | 680 µH | - | 1.8MHz | Through Hole | - | 0.311" Dia (7.90mm) | - | -40°C ~ 130°C | 10 kHz | 0.366" (9.30mm) |
