固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

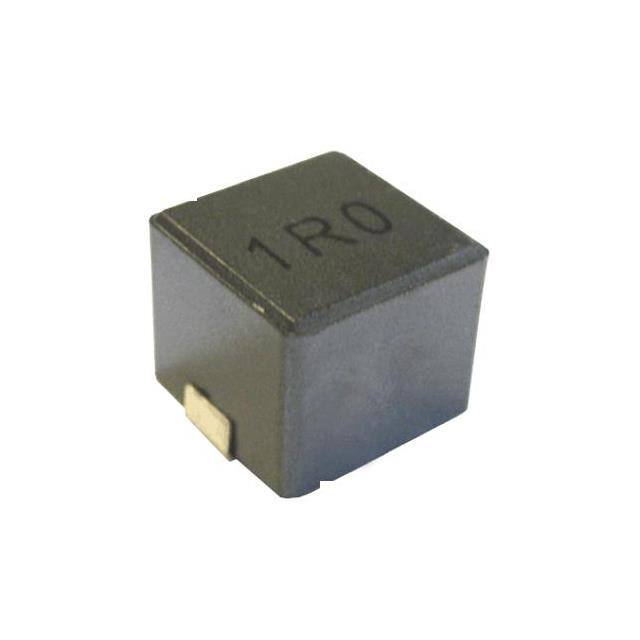

CTHCCI1210F-R47MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 | - |
|
数据表 |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 35 A | 45A | - | Shielded | 1.8mOhm Max | 470 nH | - | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
CTHCCI1090F-100MSMD SHLDED POWER INDUCTOR Central Technologies |
9 | - |
|
数据表 |
CTHCCI1090F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7 A | 5A | - | Shielded | 26mOhm Max | 10 µH | - | - | Surface Mount | - | 0.445" L x 0.409" W (11.30mm x 10.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.382" (9.70mm) |
|
CT8645LLF-102L-THLO CORE LOSS HI-I TOROID INDCTOR Central Technologies |
5 | - |
|
数据表 |
ct8645llf | - | Bulk | Active | Toroidal | - | ±15% | - | - | - | - | 284mOhm | 1 mH | - | - | Through Hole | - | - | - | -55°C ~ 125°C | - | - |
|
|
CT8645LLF-102L-TVLO CORE LOSS HI-I TOROID INDCTOR Central Technologies |
5 | - |
|
数据表 |
ct8645llf | - | Bulk | Active | Toroidal | - | ±15% | - | - | - | - | 284mOhm | 1 mH | - | - | Through Hole | - | - | - | -55°C ~ 125°C | - | - |
|
CT9555F-100-THHIGH CURRENT TOROID INDUCTOR Central Technologies |
3 | - |
|
数据表 |
ct9555f | - | Bulk | Active | Wirewound | - | ±15% | - | - | - | - | 7mOhm | 10 µH | - | - | Through Hole | - | - | - | -55°C ~ 105°C | - | - |
|
|
CT9555F-102-THHIGH CURRENT TOROID INDUCTOR Central Technologies |
3 | - |
|
数据表 |
ct9555f | - | Bulk | Active | Wirewound | - | ±15% | - | - | - | - | 280mOhm | 1 mH | - | - | Through Hole | - | - | - | -55°C ~ 105°C | - | - |
|
|
CT9555F-102-TVHIGH CURRENT TOROID INDUCTOR Central Technologies |
3 | - |
|
数据表 |
ct9555f | - | Bulk | Active | Wirewound | - | ±15% | - | - | - | - | 280mOhm | 1 mH | - | - | Through Hole | - | - | - | -55°C ~ 105°C | - | - |
|
|
CT9555F-100-TVHIGH CURRENT TOROID INDUCTOR Central Technologies |
3 | - |
|
数据表 |
ct9555f | - | Bulk | Active | Wirewound | - | ±15% | - | - | - | - | 7mOhm | 10 µH | - | - | Through Hole | - | - | - | -55°C ~ 105°C | - | - |
|
CTH8F-270K27UH AXIAL PWR LINE INDUCTOR Central Technologies |
20 | - |
|
数据表 |
CTH8F | Axial | Bulk | Active | - | - | ±10% | 4 A | 5.36A | Axial | Unshielded | 27mOhm Max | 27 µH | - | 9MHz | Through Hole | - | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
CTH8F-182K1800UH AXIAL PWR LINE INDUCTOR Central Technologies |
20 | - |
|
数据表 |
CTH8F | Axial | Bulk | Active | - | - | ±10% | 600 mA | 640mA | Axial | Unshielded | 1.56Ohm Max | 1.8 mH | - | 720kHz | Through Hole | - | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - | -55°C ~ 125°C | 1 kHz | - |
