固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7440420018FIXED IND 1.8UH 2.35A 58MOHM SMD |
700 | - |
|
数据表 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.35 A | 2.4A | - | Shielded | 58mOhm Max | 1.8 µH | - | 100MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
EXL1V0705-5R6-RFIXED IND 5.6UH 10A 17.2MOHM SMD |
0 | - |
|
数据表 |
EXL1V0705 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 10 A | 11A | - | Shielded | 17.2mOhm Max | 5.6 µH | - | 15MHz | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
744042680FIXED IND 68UH 500MA 860MOHM SMD |
566 | - |
|
数据表 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 500 mA | 380mA | - | Shielded | 860mOhm Max | 68 µH | - | 13MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
744052220FIXED IND 22UH 800MA 280MOHM SMD |
543 | - |
|
数据表 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 900mA | - | Shielded | 280mOhm Max | 22 µH | - | 25MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
VCTA32251B-1R0MS6IND SMD 1.0UH AUTO GRADE CHOKE |
11 | - |
|
数据表 |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.6 A | 4.5A | 1210 | Unshielded | 36mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 165°C | 1 MHz | 0.047" (1.20mm) |
|
|
744052470FIXED IND 47UH 770MA 550MOHM SMD |
505 | - |
|
数据表 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 770 mA | 700mA | - | Shielded | 550mOhm Max | 47 µH | - | 18MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
VCUW25201B-3R3MS5IND SMD 3.3UH AUTO GRADE CHOKE |
3 | - |
|
数据表 |
VCUW25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 1.4 A | 2.3A | 1008 | Unshielded | 180mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 155°C | 1 MHz | 0.047" (1.20mm) |
|
|
VCUW25201B-1R5MS5IND SMD 1.5UH AUTO GRADE CHOKE |
0 | - |
|
数据表 |
VCUW25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.3 A | 2.6A | 1008 | Unshielded | 72mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 155°C | 1 MHz | 0.047" (1.20mm) |
|
SRP6530A-R68MIND,7.1X6.6X3MM,0.68UH20%,17.5A, |
0 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 17.5 A | 28A | - | Shielded | 5.5mOhm Max | 680 nH | 8 @ 25.2MHz | 75MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
PA1512.700NLTFIXED IND 72NH 31A 0.27 MOHM SMD |
480 | - |
|
数据表 |
PA1512 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 31 A | 50A | - | Unshielded | 0.27mOhm | 72 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 130°C | - | 0.195" (4.96mm) |
|

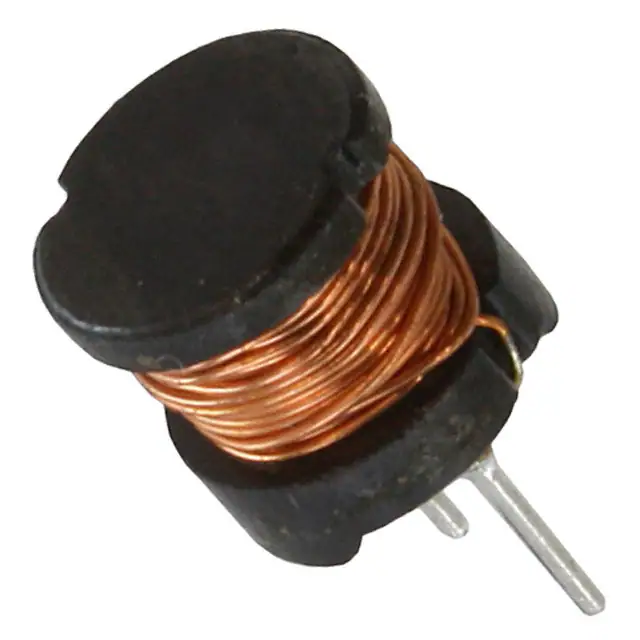

7447790221FIXED IND 220UH 600MA 800MOHM TH |
456 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | 500mA | - | Unshielded | 800mOhm Max | 220 µH | - | 4.6MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
|
0402DC-3N3XGRW0402DC-3N3XGRW |
11,946 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 2.1 A | - | 0402 | Unshielded | 37mOhm Max | 3.3 nH | 68 @ 900MHz | 14.24GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
0402DC-6N8XGRW0402DC-6N8XGRW |
11,670 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 1.65 A | - | 0402 | Unshielded | 63mOhm Max | 6.8 nH | 69 @ 900MHz | 10.15GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
CLF10060NIT-3R3N-DFIXED IND 3.3UH 5.8A 11.05 MOHM |
9,891 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 5.8 A | 5.8A | - | Shielded | 11.05mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.248" (6.30mm) |
|
|
0402DC-15NXGRW0402DC-15NXGRW |
9,653 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 1.2 A | - | 0402 | Unshielded | 115mOhm Max | 15 nH | 70 @ 900MHz | 6.2GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
0402DC-33NXGRW0402DC-33NXGRW |
9,392 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 780 mA | - | 0402 | Unshielded | 288mOhm Max | 33 nH | 62 @ 900MHz | 4.18GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
0402DC-51NXGRW0402DC-51NXGRW |
8,423 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 620 mA | - | 0402 | Unshielded | 432mOhm Max | 51 nH | 55 @ 900MHz | 3.35GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
0402DC-91NXGRW0402DC-91NXGRW |
7,961 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 360 mA | - | 0402 | Unshielded | 1.119Ohm Max | 91 nH | 48 @ 900MHz | 2.82GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
0402DC-3N9XGRW0402DC-3N9XGRW |
7,854 | - |
|
数据表 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | ±2% | 2.05 A | - | 0402 | Unshielded | 46mOhm Max | 3.9 nH | 69 @ 900MHz | 12.65GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
CLF10060NIT-151M-DFIXED IND 150UH 1.05A 288MOHM SM |
7,778 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.05 A | 1.05A | - | Shielded | 288mOhm Max | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.248" (6.30mm) |
