固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILSB1206ERR33KFIXED IND 330NH 250MA 600MOHM SM |
15,243 | - |
|
数据表 |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 250 mA | - | 1206 | Shielded | 600mOhm Max | 330 nH | 20 @ 25MHz | 167MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
|
SRR6603-682MLFIXED IND 6.8MH 40MA 25 OHM SMD |
866 | - |
|
数据表 |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 40 mA | 19mA | - | Shielded | 25Ohm Max | 6.8 mH | 50 @ 100kHz | 1MHz | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
ETQ-P5M6R8YFMFIXED IND 6.8UH 6.9A 29.4MOHM SM |
727 | - |
|
数据表 |
PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 6.9 A | 12.1A | - | Shielded | 29.4mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.213" (5.40mm) |
|
MLF1005G1R5JTD25FIXED IND 1.5UH 35MA 950MOHM SMD |
15,002 | - |
|
数据表 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±5% | 35 mA | - | 0402 (1005 Metric) | Shielded | 950mOhm Max | 1.5 µH | 30 @ 10MHz | 100MHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 10 MHz | 0.022" (0.55mm) |
|
LQW18AS5N1G0ZDFIXED IND 5.1NH 700MA 140MOHM SM |
14,900 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 700 mA | - | 0603 (1608 Metric) | Unshielded | 140mOhm Max | 5.1 nH | 20 @ 250MHz | 5.7GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
LQW15AN10NJ8ZDFIXED IND 10NH 1.4A 0.081OHM SMD |
14,286 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±5% | 1.4 A | - | - | Unshielded | 81mOhm Max | 10 nH | 31 @ 250MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
MBKK2012T3R3MFIXED IND 3.3UH 650MA 500MOHM SM |
13,518 | - |
|
数据表 |
MCOIL™, MB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 650 mA | 700mA | 0805 (2012 Metric) | Shielded | 500mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
-0,95mm.jpg)
|
LBMF1608T100MFIXED IND 10UH 80MA 360 MOHM SMD |
12,303 | - |
|
数据表 |
LB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 80 mA | - | 0603 (1608 Metric) | Unshielded | 360mOhm | 10 µH | - | 32MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.039" (1.00mm) |
|
|
ILSB1206ERR47KFIXED IND 470NH 200MA 600MOHM SM |
12,187 | - |
|
数据表 |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 200 mA | - | 1206 | Shielded | 600mOhm Max | 470 nH | 25 @ 25MHz | 144MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
.jpg)
|
MLF1608DR68JT000FIXED IND 680NH 70MA 1.25OHM SMD |
12,043 | - |
|
数据表 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±5% | 70 mA | - | 0603 (1608 Metric) | Shielded | 1.25Ohm Max | 680 nH | 15 @ 25MHz | 150MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 25 MHz | 0.037" (0.95mm) |
|
|
LQW18AS3N3G0ZDFIXED IND 3.3NH 700MA 45MOHM SMD |
11,678 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 700 mA | - | 0603 (1608 Metric) | Unshielded | 45mOhm Max | 3.3 nH | 35 @ 250MHz | 5.9GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
|
LQW15AN1N7C8ZDFIXED IND 1.7NH 1.15A 0.065OHM |
11,514 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±0.2nH | 1.15 A | - | - | Unshielded | 65mOhm Max | 1.7 nH | 20 @ 250MHz | 18GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
MLF1005G1R0JT000FIXED IND 1UH 40MA 640 MOHM SMD |
11,444 | - |
|
数据表 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±5% | 40 mA | - | 0402 (1005 Metric) | Shielded | 640mOhm Max | 1 µH | 30 @ 10MHz | 120MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 10 MHz | 0.022" (0.55mm) |
.jpg)
|

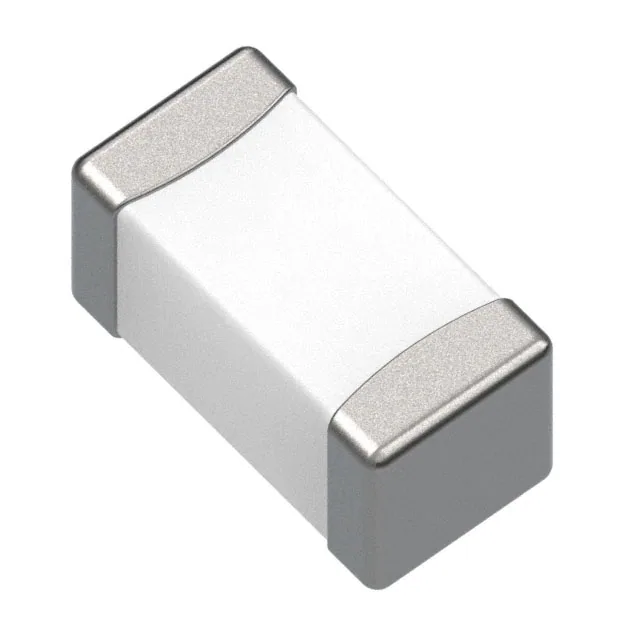

744786147AFIXED IND 47NH 400MA 700MOHM SMD |
11,372 | - |
|
数据表 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 400 mA | - | 0603 (1608 Metric) | Unshielded | 700mOhm Max | 47 nH | 8 @ 100MHz | 1.2GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
MLF1005GR56JTD25FIXED IND 560NH 45MA 470MOHM SMD |
10,550 | - |
|
数据表 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±5% | 45 mA | - | 0402 (1005 Metric) | Shielded | 470mOhm Max | 560 nH | 30 @ 10MHz | 170MHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 10 MHz | 0.022" (0.55mm) |
|
MAKK2016T3R3MFIXED IND 3.3UH 1.2A 255MOHM SMD |
10,229 | - |
|
数据表 |
MCOIL™, MA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.2 A | 1.15A | 0806 (2016 Metric) | Shielded | 255mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 2 MHz | 0.039" (1.00mm) |
-1,45mm.jpg)
|
CB2012T150KFIXED IND 15UH 320MA 1.69OHM SMD |
10,194 | - |
|
数据表 |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 170mA | 0805 (2012 Metric) | Unshielded | 1.69Ohm Max | 15 µH | - | 28MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.057" (1.45mm) |
|
|
LQW18ASR11G0ZDFIXED IND 110NH 300MA 610MOHM SM |
9,003 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 610mOhm Max | 110 nH | 32 @ 150MHz | 1.35GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 150 MHz | 0.039" (1.00mm) |
|
|
LQW18AS68NG0ZDFIXED IND 68NH 600MA 340MOHM SMD |
8,944 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 600 mA | - | 0603 (1608 Metric) | Unshielded | 340mOhm Max | 68 nH | 37 @ 200MHz | 1.7GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
|
CB2012T101KFIXED IND 100UH 130MA 9.1OHM SMD |
8,847 | - |
|
数据表 |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 130 mA | 60mA | 0805 (2012 Metric) | Unshielded | 9.1Ohm Max | 100 µH | - | 8MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 796 kHz | 0.057" (1.45mm) |
