固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN33NG80DFIXED IND 33NH 1.1A 0.11OHM SMD |
8,189 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 1.1 A | - | - | Unshielded | 110mOhm Max | 33 nH | 40 @ 250MHz | 3.15GHz | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | - | -55°C ~ 125°C | 100 MHz | 0.039" (1.00mm) |
|
|
LQW18AN18NG80DFIXED IND 18NH 1.4A 0.075OHM SMD |
8,086 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 1.4 A | - | - | Unshielded | 75mOhm Max | 18 nH | 40 @ 250MHz | 4.6GHz | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | - | -55°C ~ 125°C | 100 MHz | 0.039" (1.00mm) |
|
MPEV1D0630L2R2FIXED IND 2.2UH 8.7A 18.3MOHM SM |
1,480 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 8.7 A | 9A | - | Shielded | 18.3mOhm Max | 2.2 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 180°C | 100 kHz | 0.118" (3.00mm) |
|
|
MPEV1D0630L1R5FIXED IND 1.5UH 10.5A 12.7 MOHM |
1,470 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 10.5 A | 11A | - | Shielded | 12.7mOhm Max | 1.5 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 180°C | 100 kHz | 0.118" (3.00mm) |
|

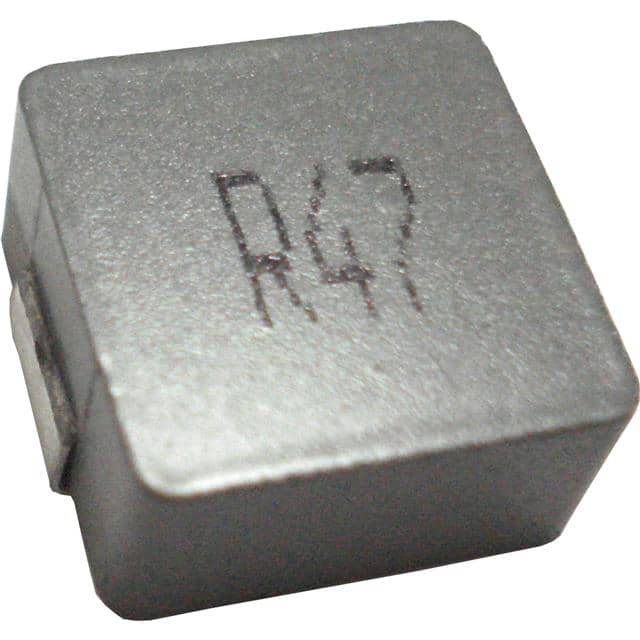

AMRU00040412R47MA1FIXED IND 470NH 5A 20 MOHM SMD |
1,398 | - |
|
数据表 |
AMRU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5 A | 9A | - | Shielded | 20mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.185" L x 0.165" W (4.70mm x 4.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
MPEV1D0630L4R7FIXED IND 4.7UH 6.2A 36.7MOHM SM |
1,370 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 6.2 A | 6.5A | - | Shielded | 36.7mOhm Max | 4.7 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 180°C | 100 kHz | 0.118" (3.00mm) |
|
SPM5015T-1R0M-LRFIXED IND 1UH 6.3A 24.8 MOHM SMD |
1,369 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 6.3 A | 8A | - | Shielded | 24.8mOhm Max | 1 µH | - | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|

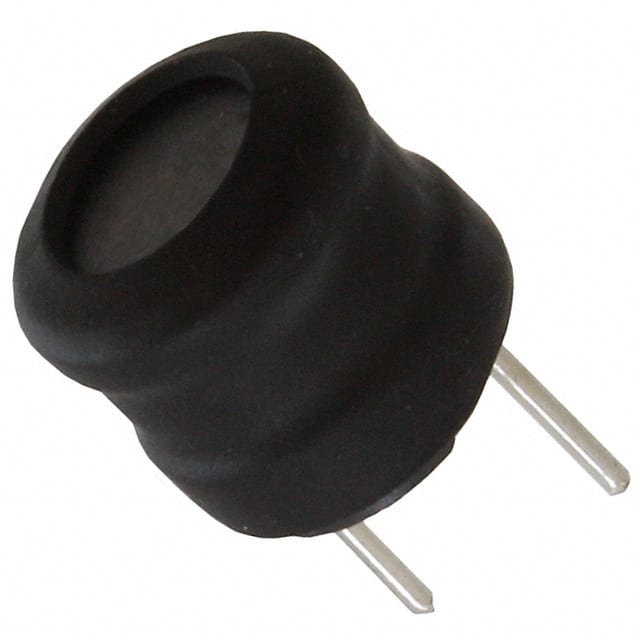

744732152FIXED IND 1.5MH 290MA 4.7 OHM TH |
730 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±5% | 290 mA | 500mA | - | Unshielded | 4.7Ohm Max | 1.5 mH | - | 1.75MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.295" (7.50mm) |
|
|
MPEV1D0630L1R0FIXED IND 1UH 13.1A 8.2MOHM SMD |
677 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 13.1 A | 13A | - | Shielded | 8.2mOhm Max | 1 µH | - | 43MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 180°C | 100 kHz | 0.118" (3.00mm) |
|
|
SPM5012T-3R3M-LRFIXED IND 3.3UH 2.5A 110MOHM SMD |
591 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.5 A | 4.5A | - | Shielded | 110mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
PA4310.103NLTFIXED IND 10UH 12A 37 MOHM SMD |
483 | - |
|
数据表 |
PA4310.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12 A | - | - | Unshielded | 37mOhm Max | 10 µH | - | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
SRR1260A-121KFIXED IND 120UH 1.65A 210MOHM SM |
201 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.65 A | 1.65A | - | Shielded | 210mOhm Max | 120 µH | 26 @ 796kHz | 5.5MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
IHLE2020CDERR47M51IHLE-2020CD-51 .47 20% ER E3 |
2,200 | - |
|
数据表 |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 14.6 A | 9.4A | - | Shielded | 6.44mOhm Max | 470 nH | - | 88MHz | Surface Mount | AEC-Q200 | 0.232" L x 0.216" W (5.89mm x 5.49mm) | - | -55°C ~ 155°C | 100 kHz | 0.135" (3.43mm) |
|
|
IHLE2020CDERR22M51IHLE-2020CD-51 .22 20% ER E3 |
2,200 | - |
|
数据表 |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 18 A | 13A | - | Shielded | 4.23mOhm Max | 220 nH | - | 164.5MHz | Surface Mount | AEC-Q200 | 0.232" L x 0.216" W (5.89mm x 5.49mm) | - | -55°C ~ 155°C | 100 kHz | 0.135" (3.43mm) |
|
|
IHLE2020CDER1R0M51IHLE-2020CD-51 1 20% ER E3 |
2,185 | - |
|
数据表 |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 9.8 A | 10.3A | - | Shielded | 12.1mOhm Max | 1 µH | - | 66MHz | Surface Mount | AEC-Q200 | 0.232" L x 0.216" W (5.89mm x 5.49mm) | - | -55°C ~ 155°C | 100 kHz | 0.135" (3.43mm) |
|
|
IHLE2020CDER1R5M51IHLE-2020CD-51 1.5 20% ER E3 |
2,123 | - |
|
数据表 |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 7.9 A | 9.4A | - | Shielded | 19.8mOhm Max | 1.5 µH | - | 49.2MHz | Surface Mount | AEC-Q200 | 0.232" L x 0.216" W (5.89mm x 5.49mm) | - | -55°C ~ 155°C | 100 kHz | 0.135" (3.43mm) |
|
0315CDMCCDS-R56MCFIXED IND 560NH 5.5A 25MOHM SMD |
2,000 | - |
|
数据表 |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5.5 A | 5.2A | - | Shielded | 25mOhm Max | 560 nH | - | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
MPX1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM |
1,913 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 13.2 A | 12A | - | Shielded | 8.3mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
IHLP2525CZER1R5MA1IHLP-2525CZ-A1 1.5 20% ER E3 |
1,688 | - |
|
数据表 |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 9 A | 18A | - | Shielded | 15mOhm Max | 1.5 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SPM3012T-R47M-LRFIXED IND 470NH 4.5A 34.8MOHM SM |
1,617 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.5 A | 7.3A | - | Shielded | 34.8mOhm Max | 470 nH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
