固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-681M-RCFIXED IND 680UH 400MA 1.78OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 740mA | - | Shielded | 1.78Ohm Max | 680 µH | - | 3MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.232" (5.90mm) |
|
|
PM125S-821M-RCFIXED IND 820UH 360MA 2 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 260mA | - | Shielded | 2Ohm Max | 820 µH | - | 2MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.232" (5.90mm) |
|

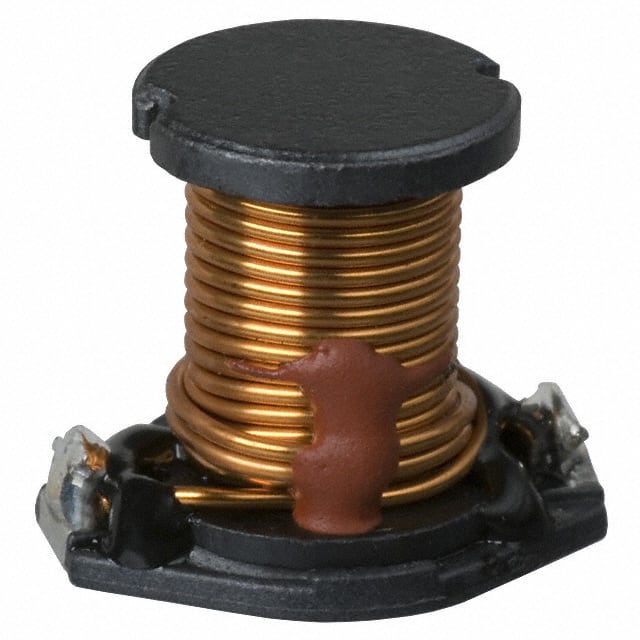

PM3340-471M-RCFIXED IND 470UH 300MA 950MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 1A | - | Unshielded | 950mOhm Max | 470 µH | - | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | - | -55°C ~ 105°C | 100 kHz | 0.453" (11.50mm) |
|
SRN3010-1R0YFIXED IND 1UH 2.3A 63 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2.3A | 3010 | Shielded | 63mOhm Max | 1 µH | 7 @ 7.96MHz | 140MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-1R2YFIXED IND 1.2UH 2.1A 81 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2.1 A | 1.9A | 3010 | Shielded | 81mOhm Max | 1.2 µH | 7 @ 7.96MHz | 130MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-1R5YFIXED IND 1.5UH 2A 91 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2 A | 1.65A | 3010 | Shielded | 91mOhm Max | 1.5 µH | 7 @ 7.96MHz | 110MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-2R2MFIXED IND 2.2UH 1.9A 96 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.3A | 3010 | Shielded | 96mOhm Max | 2.2 µH | 7 @ 7.96MHz | 85MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-3R3MFIXED IND 3.3UH 1.8A 156MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 1.05A | 3010 | Shielded | 156mOhm Max | 3.3 µH | 7 @ 7.96MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-4R7MFIXED IND 4.7UH 1.7A 210MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 850mA | 3010 | Shielded | 210mOhm Max | 4.7 µH | 7 @ 7.96MHz | 60MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-6R8MFIXED IND 6.8UH 1.3A 312MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 700mA | 3010 | Shielded | 312mOhm Max | 6.8 µH | 7 @ 7.96MHz | 50MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
