固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR0618-470MLFIXED IND 47UH 360MA 1.1 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR0618 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 440mA | - | Shielded | 1.1Ohm Max | 47 µH | 30 @ 100kHz | 20MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.063" (1.60mm) |
|
|
SRR0618-680MLFIXED IND 68UH 300MA 1.5 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR0618 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 370mA | - | Shielded | 1.5Ohm Max | 68 µH | 30 @ 100kHz | 15MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.063" (1.60mm) |
|
|
SRR0618-6R8MLFIXED IND 6.8UH 950MA 150MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
SRR0618 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 950 mA | 1.18A | - | Shielded | 150mOhm Max | 6.8 µH | 30 @ 100kHz | 50MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.063" (1.60mm) |
|
PM1008S-102M-RCFIXED IND 1MH 100MA 30 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 100 mA | - | 1008 (2520 Metric) | Shielded | 30Ohm Max | 1 mH | 45 @ 1MHz | 1.3MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-151M-RCFIXED IND 150UH 220MA 7.5OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 220 mA | - | 1008 (2520 Metric) | Shielded | 7.5Ohm Max | 150 µH | 50 @ 1MHz | 5.6MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-1R5M-RCFIXED IND 1.5UH 2.8A 60 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | - | 1008 (2520 Metric) | Shielded | 60mOhm Max | 1.5 µH | 35 @ 1MHz | 260MHz | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-3R9M-RCFIXED IND 3.9UH 1.2A 260MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | - | 1008 (2520 Metric) | Shielded | 260mOhm Max | 3.9 µH | 38 @ 1MHz | 175MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-4R7M-RCFIXED IND 4.7UH 1A 350 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1 A | - | 1008 (2520 Metric) | Shielded | 350mOhm Max | 4.7 µH | 38 @ 1MHz | 160MHz | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
PM125S-150M-RCFIXED IND 15UH 2.45A 60 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.45 A | 3.68A | - | Shielded | 60mOhm Max | 15 µH | - | 19MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.232" (5.90mm) |
|

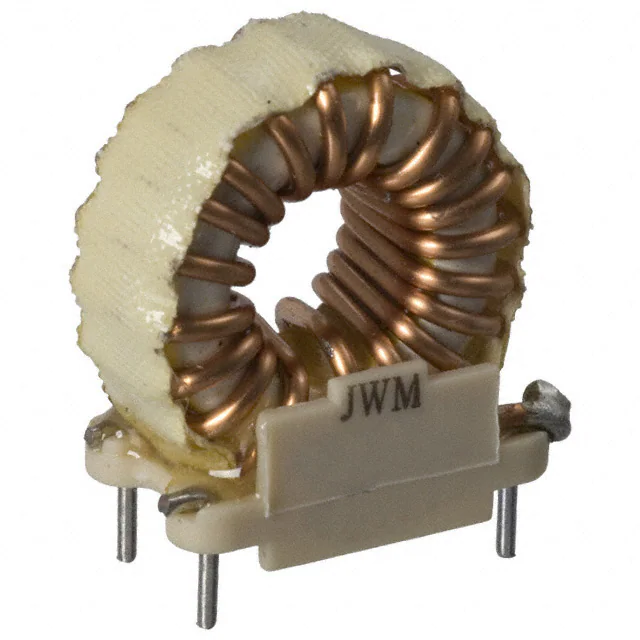

6705-RCFIXED IND 450UH 1.5A 490 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 1.5 A | - | - | Shielded | 490mOhm Max | 450 µH | - | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | - | -55°C ~ 105°C | 1 kHz | 1.000" (25.40mm) |
