固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM72E-12100HLFTR13FIXED IND 10UH 10A 17.2 MOHM SMD TT Electronics/BI Magnetics |
396 | - |
|
数据表 |
HM72E-12 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 10 A | 9A | - | Unshielded | 17.2mOhm Max | 10 µH | - | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HA72E-121R0HLFTR13FIXED IND 1UH 32A 2 MOHM SMD TT Electronics/BI Magnetics |
800 | - |
|
数据表 |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | ±20% | 32 A | 31A | - | Unshielded | 2mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.549" L x 0.512" W (13.95mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
HM65-8R2LFTR13FIXED IND 8.2UH 4.5A 11.4 MOHM TT Electronics/BI Magnetics |
324 | - |
|
数据表 |
HM65 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | ±20% | 4.5 A | - | - | Unshielded | 11.4mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 130°C | 100 kHz | 0.220" (5.60mm) |
|
|
HM72E-12200HLFTR13FIXED IND 20UH 5A 40.5 MOHM SMD TT Electronics/BI Magnetics |
610 | - |
|
数据表 |
HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | ±20% | 5 A | 8A | - | Unshielded | 40.5mOhm Max | 20 µH | - | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
HM73-15R47LFTR13FIXED IND 470NH 17A 1.55 MOHM TT Electronics/BI Magnetics |
306 | - |
|
数据表 |
HM73 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | - | - | ±20% | 17 A | 35A | - | Shielded | 1.55mOhm Max | 470 nH | - | - | Surface Mount | - | 0.461" L x 0.413" W (11.70mm x 10.50mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
HA72E-12100HLFTR13FIXED IND 10UH 10A 17.2 MOHM SMD TT Electronics/BI Magnetics |
795 | - |
|
数据表 |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | ±20% | 10 A | 9A | - | Unshielded | 17.2mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.549" L x 0.512" W (13.95mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HA72E-12200HLFTR13FIXED IND 20UH 5A 40.5 MOHM SMD TT Electronics/BI Magnetics |
175 | - |
|
数据表 |
HA72E-12 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 5 A | 8A | - | Unshielded | 40.5mOhm Max | 20 µH | - | - | Surface Mount | AEC-Q200 | 0.549" L x 0.512" W (13.95mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|

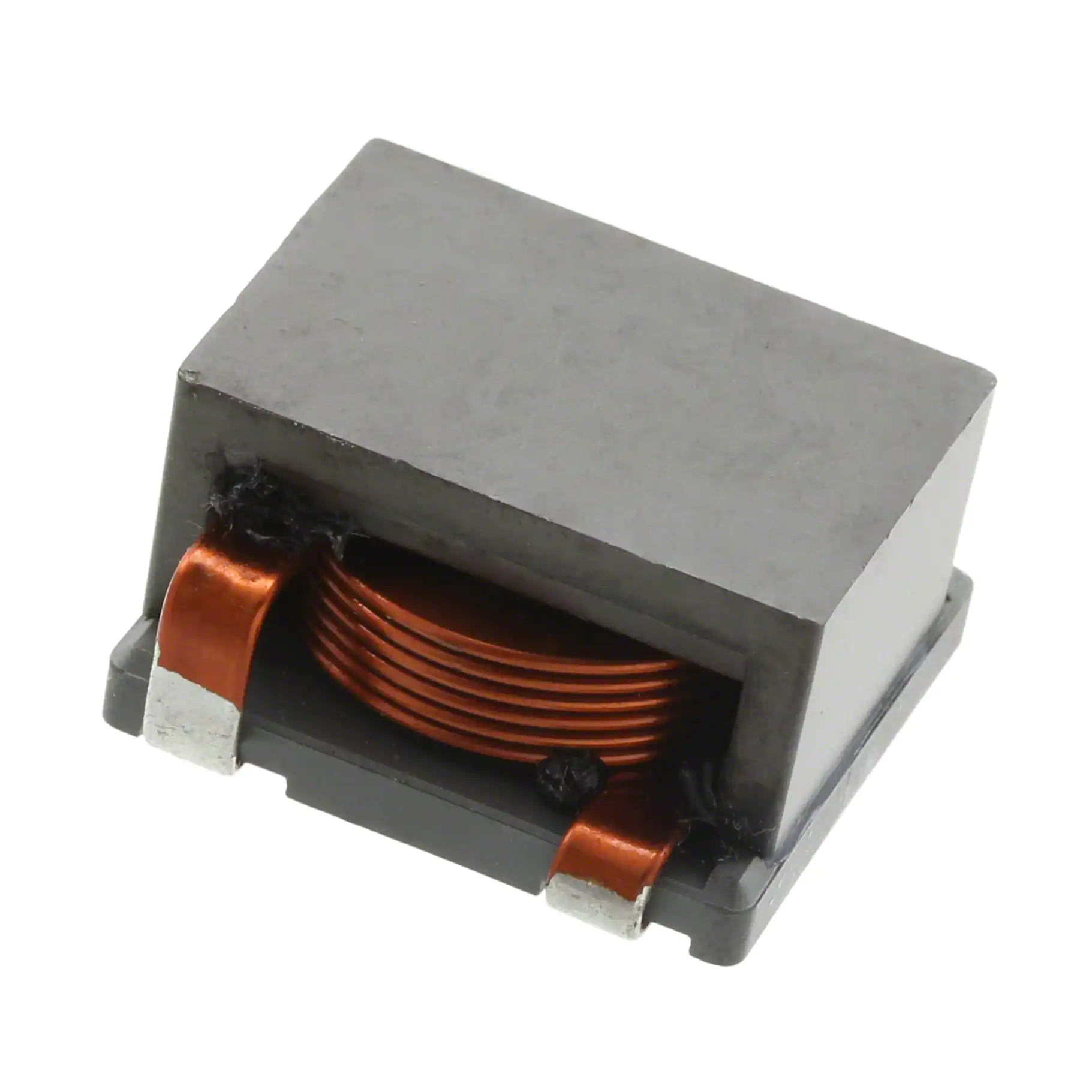

HA65A-25153R3LFFIXED IND 3.3UH 2.6 MOHM SMD TT Electronics/BI Magnetics |
243 | - |
|
数据表 |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | ±10% | - | 87A | - | Unshielded | 2.6mOhm Max | 3.3 µH | - | 24MHz | Surface Mount | AEC-Q200 | 1.043" L x 1.043" W (26.50mm x 26.50mm) | - | -40°C ~ 155°C | 100 kHz | 0.610" (15.50mm) |
|
|
HA65A-25154R7LFFIXED IND 4.7UH 2.6 MOHM SMD TT Electronics/BI Magnetics |
237 | - |
|
数据表 |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | ±10% | - | 61A | - | Unshielded | 2.6mOhm Max | 4.7 µH | - | 21MHz | Surface Mount | AEC-Q200 | 1.043" L x 1.043" W (26.50mm x 26.50mm) | - | -40°C ~ 155°C | 100 kHz | 0.610" (15.50mm) |
|
|
HA65A-251533RLFFIXED IND 33UH 2.6 MOHM SMD TT Electronics/BI Magnetics |
190 | - |
|
数据表 |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | ±10% | - | 10.3A | - | Unshielded | 2.6mOhm Max | 33 µH | - | 6MHz | Surface Mount | AEC-Q200 | 1.043" L x 1.043" W (26.50mm x 26.50mm) | - | -40°C ~ 155°C | 100 kHz | 0.610" (15.50mm) |
