固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM66-80151LFTR13FIXED IND 150UH 1.15A 506MOHM SM TT Electronics/BI Magnetics |
1,600 | - |
|
数据表 |
HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | ±20% | 1.15 A | - | - | Shielded | 506mOhm Max | 150 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

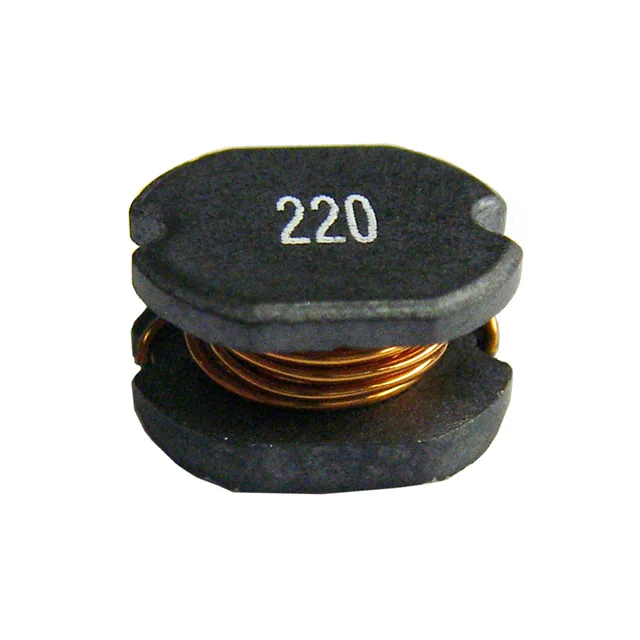

HM79-108R2LFTR13FIXED IND 8.2UH 840MA 146 MOHM TT Electronics/BI Magnetics |
1,491 | - |
|
数据表 |
HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | ±20% | 840 mA | - | - | Unshielded | 146mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
HM79-50270LFTR13FIXED IND 27UH 1.44A 100 MOHM TT Electronics/BI Magnetics |
879 | - |
|
数据表 |
HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | ±20% | 1.44 A | - | - | Unshielded | 100mOhm Max | 27 µH | - | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.157" (4.00mm) |
|
HM72E-061R0LFTR13FIXED IND 1UH 10.3A 10 MOHM SMD TT Electronics/BI Magnetics |
7,210 | - |
|
数据表 |
HM72E-06 | 2-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | ±20% | 10.3 A | 15A | - | Unshielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
HM72E-061R5LFTR13FIXED IND 1.5UH 8.4A 14 MOHM SMD TT Electronics/BI Magnetics |
1,873 | - |
|
数据表 |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 8.4 A | 10A | - | Unshielded | 14mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
HM72E-06R47LFTR13FIXED IND 470NH 16.1A 4.2 MOHM TT Electronics/BI Magnetics |
1,657 | - |
|
数据表 |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 16.1 A | 19A | - | Unshielded | 4.2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
HM72E-06R33LFTR13FIXED IND 330NH 18A 3.9 MOHM SMD TT Electronics/BI Magnetics |
210 | - |
|
数据表 |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 18 A | 22A | - | Unshielded | 3.9mOhm Max | 330 nH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
HM72E-063R3LFTR13FIXED IND 3.3UH 6.6A 30 MOHM SMD TT Electronics/BI Magnetics |
156 | - |
|
数据表 |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 6.6 A | 8A | - | Unshielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
HM72E-06330LFTR13FIXED IND 33UH 1.8A 332 MOHM SMD TT Electronics/BI Magnetics |
923 | - |
|
数据表 |
HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 1.8 A | 2.5A | - | Unshielded | 332mOhm Max | 33 µH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
HA72E-063R3LFTR13FIXED IND 3.3UH 6.6A 30 MOHM SMD TT Electronics/BI Magnetics |
1,678 | - |
|
数据表 |
HA72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 6.6 A | 8A | - | Unshielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
