固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

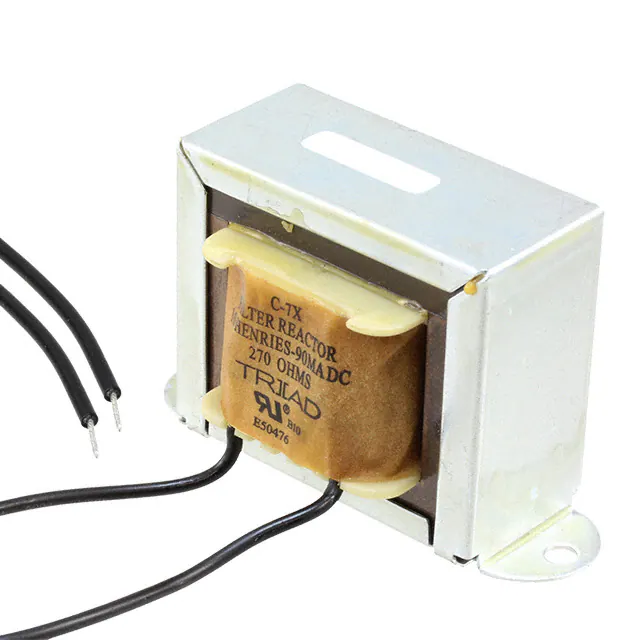

C-7XFIXED IND 10H 90MA 270 OHM CHASS Triad Magnetics |
691 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 90 mA | - | - | Unshielded | 270Ohm | 10 H | - | - | Chassis Mount | - | 3.312" L x 2.000" W (84.12mm x 50.80mm) | - | -40°C ~ 85°C | 120 Hz | 1.940" (49.28mm) |
|

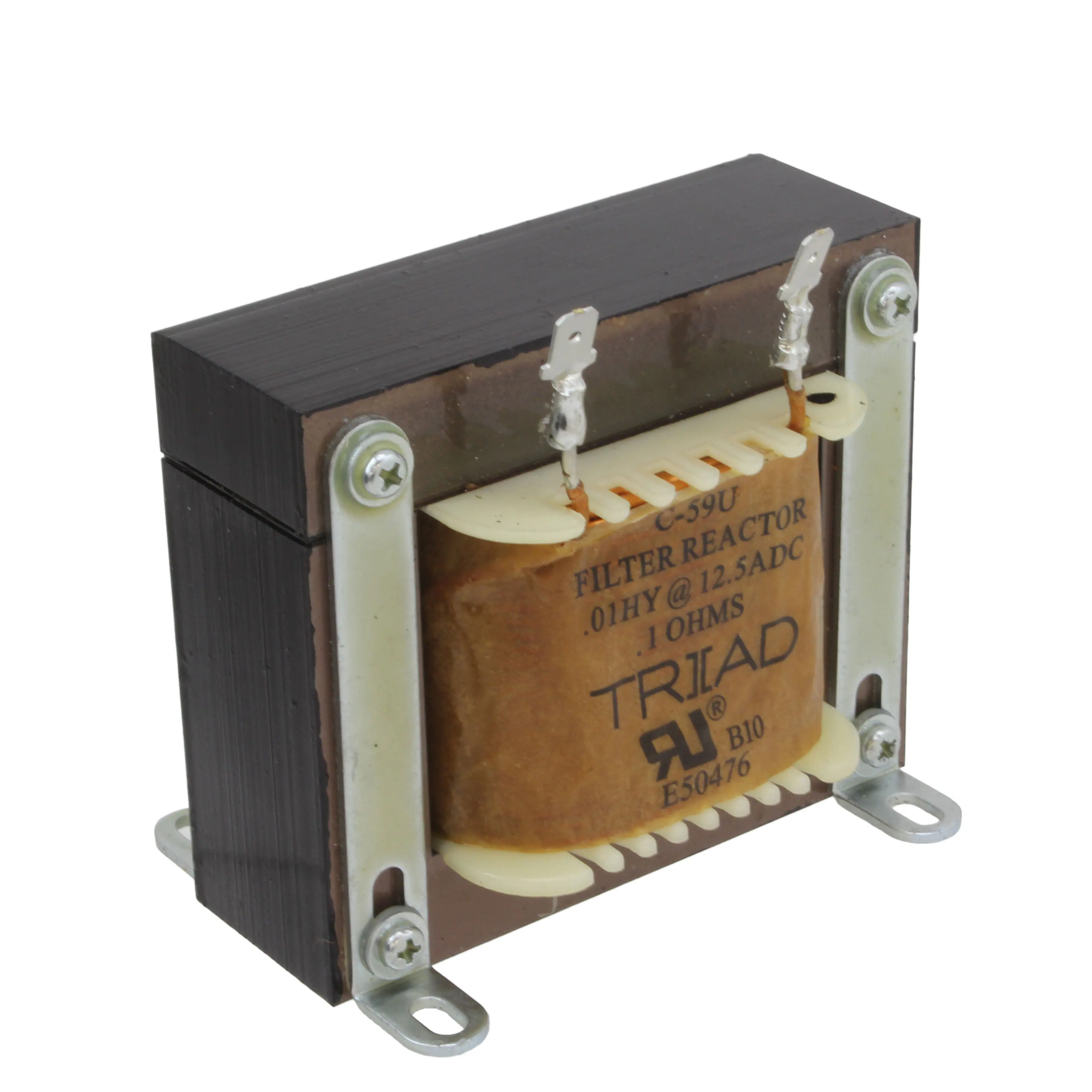

C-59UFIXED IND 10MH 12.5A 100 MOHM Triad Magnetics |
290 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 12.5 A | - | - | Unshielded | 100mOhm | 10 mH | - | - | Chassis Mount | - | 4.125" L x 3.000" W (104.77mm x 76.20mm) | - | -40°C ~ 85°C | 120 Hz | 3.500" (88.90mm) |
|

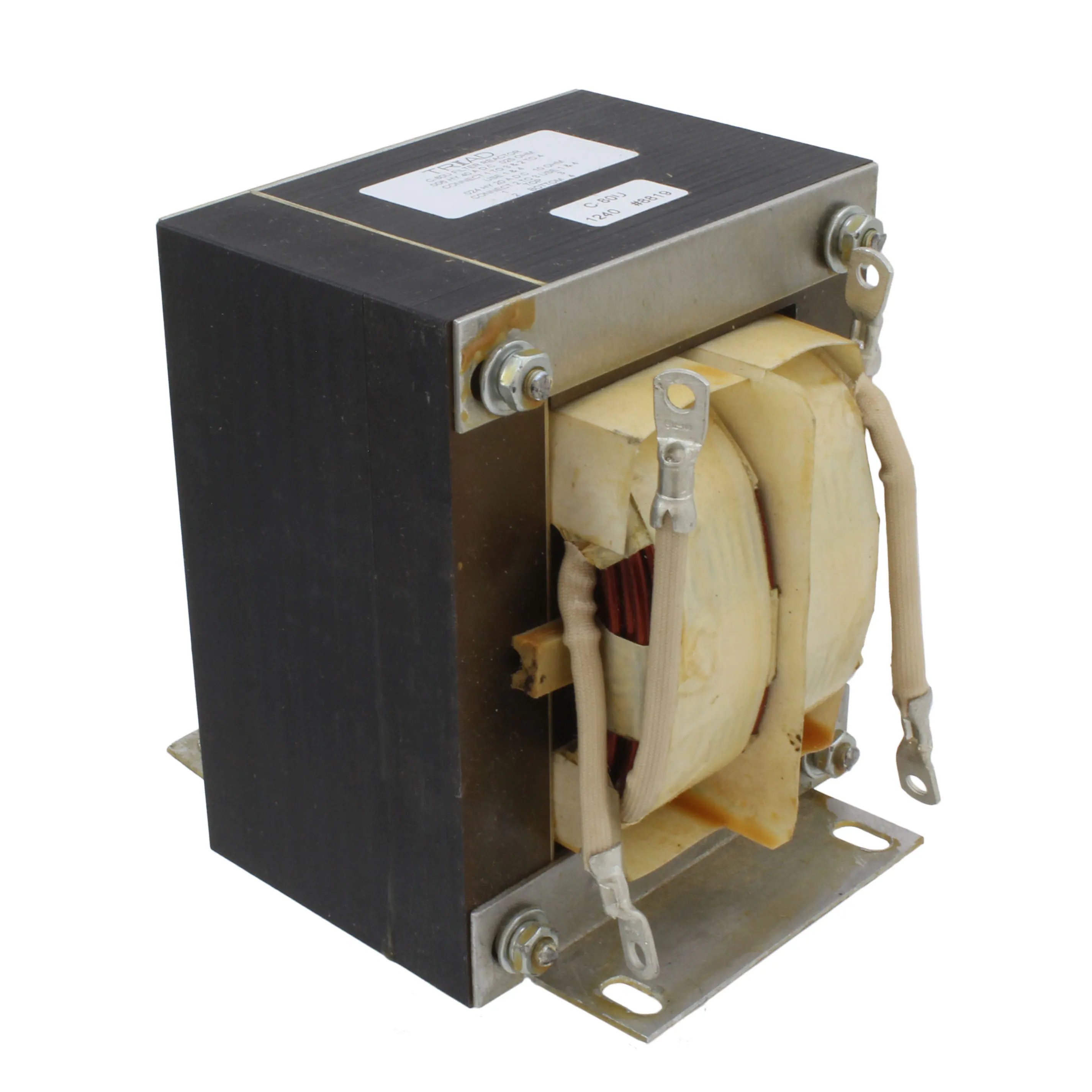

C-80UFIXED IND 24MH 20A 25 MOHM CHASS Triad Magnetics |
10 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 20 A | - | - | Unshielded | 25mOhm | 24 mH | - | - | Chassis Mount | - | 4.562" L x 5.500" W (115.87mm x 139.70mm) | - | -40°C ~ 85°C | 120 Hz | 5.312" (134.92mm) |
|

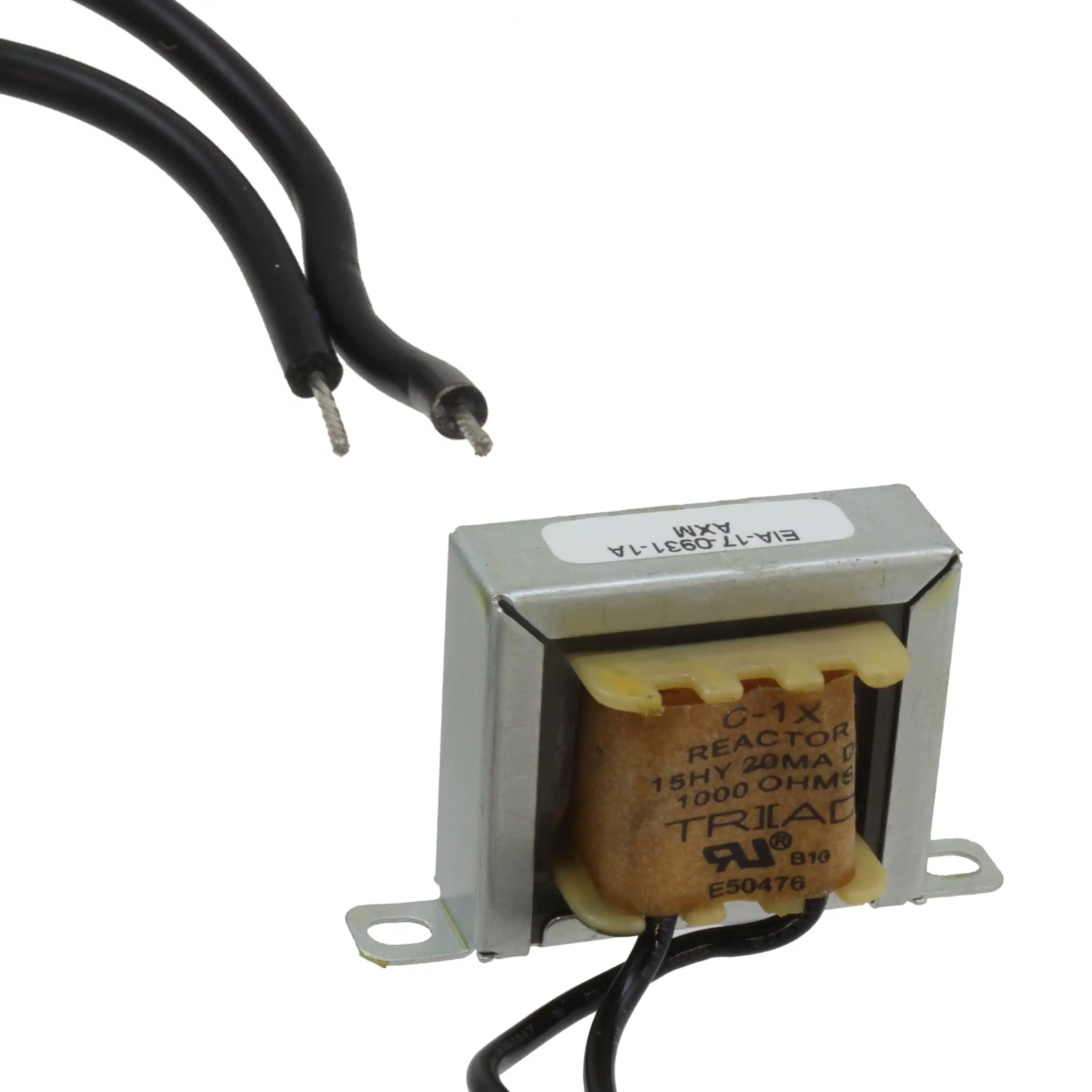

C-1XFIXED IND 15H 20MA 1 KOHM CHASS Triad Magnetics |
17 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 20 mA | - | - | Unshielded | 1kOhm | 15 H | - | - | Chassis Mount | - | 2.062" L x 1.250" W (52.37mm x 31.75mm) | - | -40°C ~ 85°C | 120 Hz | 1.187" (30.15mm) |
|

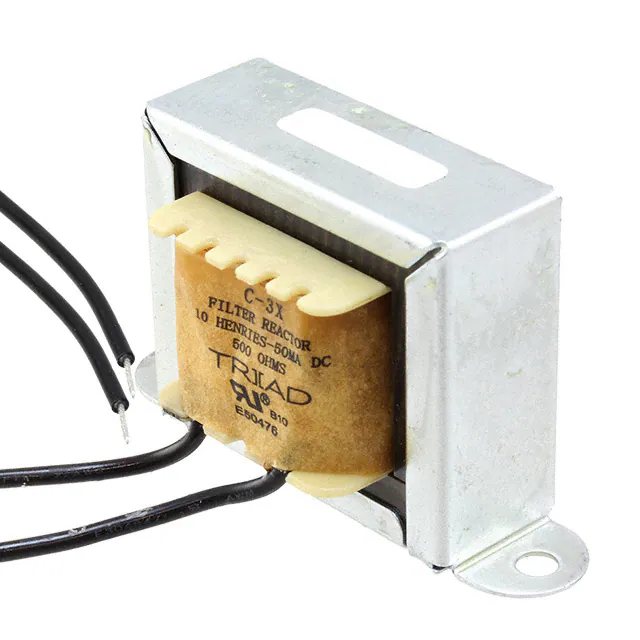

C-3XFIXED IND 10H 50MA 500 OHM CHASS Triad Magnetics |
44 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 50 mA | - | - | Unshielded | 500Ohm | 10 H | - | - | Chassis Mount | - | 2.812" L x 1.500" W (71.42mm x 38.10mm) | - | -40°C ~ 85°C | 120 Hz | 1.625" (41.28mm) |
|

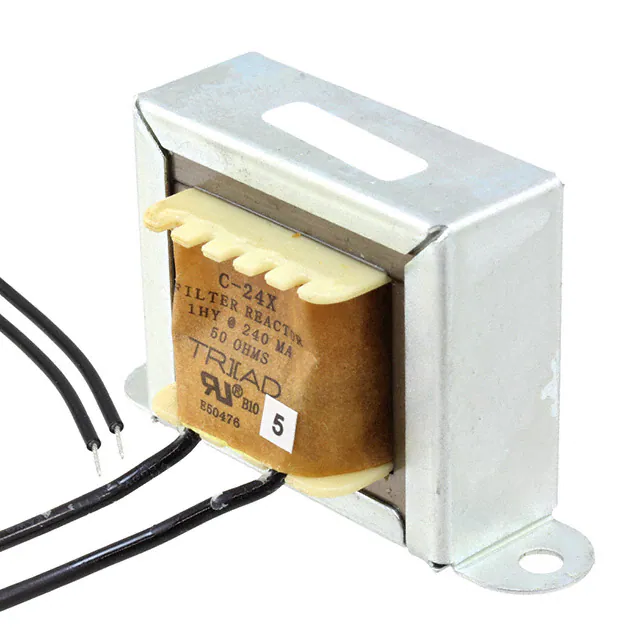

C-24XFIXED IND 1H 240MA 50 OHM CHASS Triad Magnetics |
49 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 240 mA | - | - | Unshielded | 50Ohm | 1 H | - | - | Chassis Mount | - | 2.812" L x 1.500" W (71.42mm x 38.10mm) | - | -40°C ~ 85°C | 120 Hz | 1.625" (41.28mm) |
|

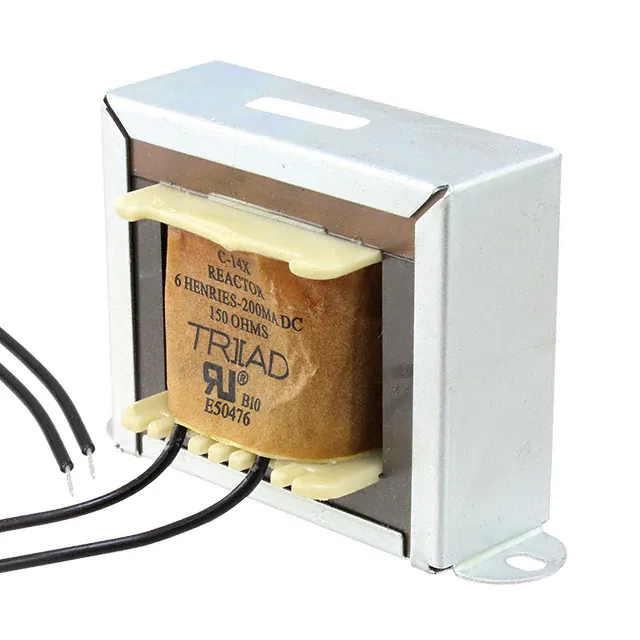

C-14XFIXED IND 6H 200MA 150 OHM CHASS Triad Magnetics |
61 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 200 mA | - | - | Unshielded | 150Ohm | 6 H | - | - | Chassis Mount | - | 4.000" L x 2.250" W (101.60mm x 57.15mm) | - | -40°C ~ 85°C | 120 Hz | 2.598" (66.00mm) |
|

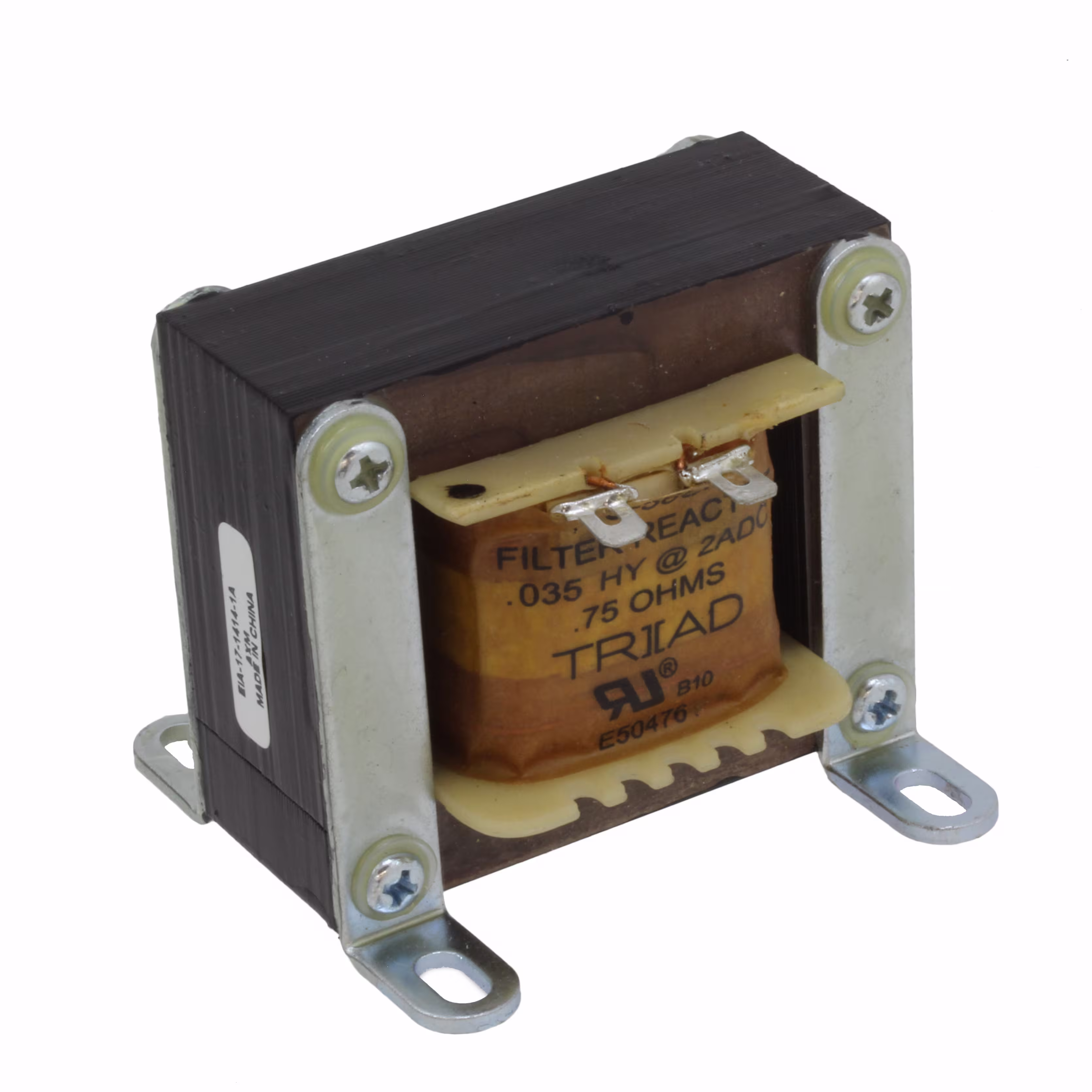

C-56UFIXED IND 35MH 2A 790 MOHM CHASS Triad Magnetics |
75 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 2 A | - | - | Unshielded | 790mOhm | 35 mH | - | - | Chassis Mount | - | 2.625" L x 2.000" W (66.68mm x 50.80mm) | - | -40°C ~ 85°C | 120 Hz | 2.250" (57.15mm) |
|

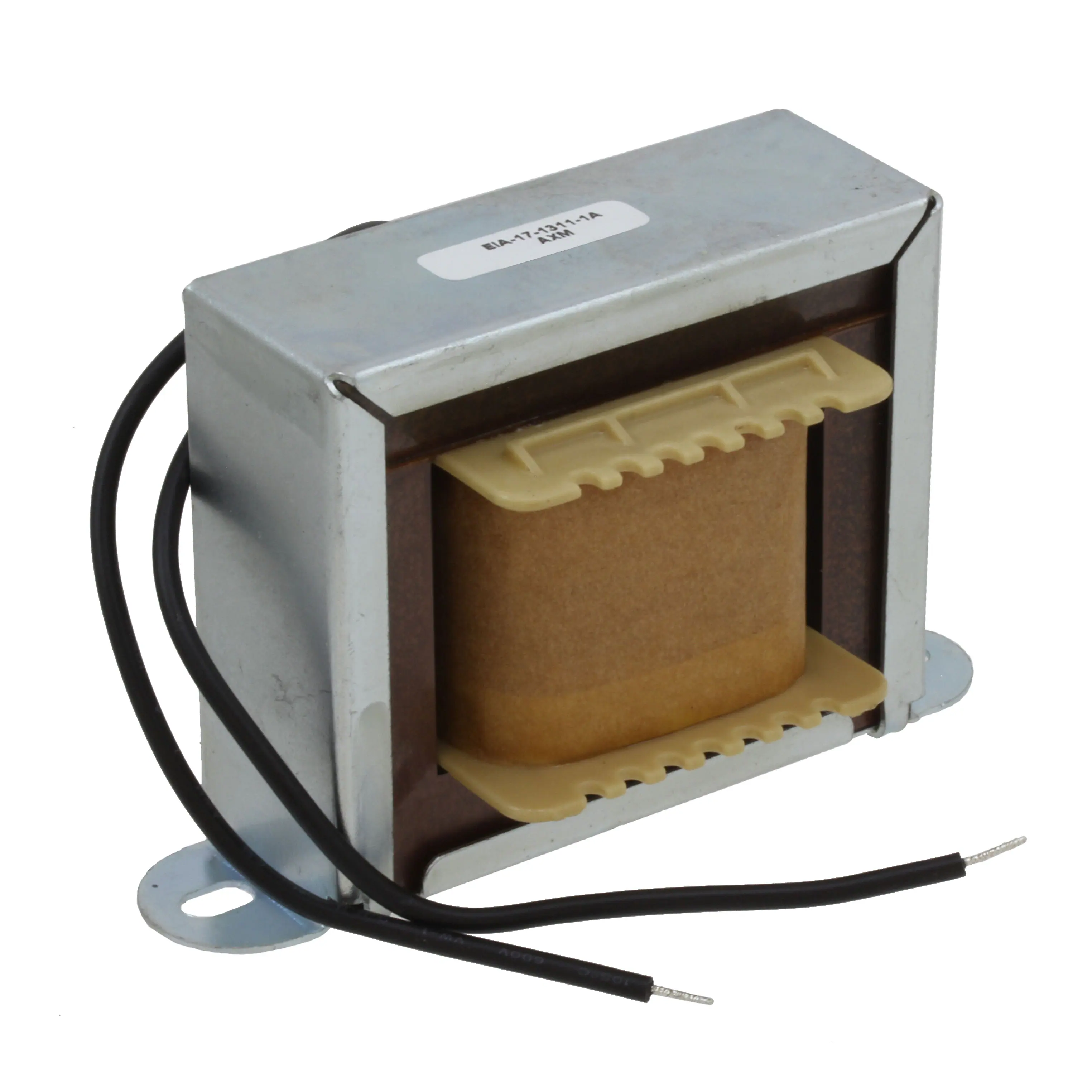

C-17XFIXED IND 1.5H 300MA 40 OHM CHAS Triad Magnetics |
21 | - |
|
数据表 |
C | Nonstandard | Bulk | Active | Wirewound | - | -20%, +50% | 300 mA | - | - | Unshielded | 40Ohm | 1.5 H | - | - | Chassis Mount | - | 3.687" L x 2.000" W (93.65mm x 50.80mm) | - | -40°C ~ 85°C | 120 Hz | 2.281" (57.94mm) |
|
FIT44-1FIXED IND 18.85UH 2.8A 44.8 MOHM Triad Magnetics |
87 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | - | 2.8 A | - | - | Unshielded | 44.8mOhm Max | 18.85 µH | - | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | - | -40°C ~ 85°C | 10 kHz | 0.700" (17.78mm) |
