固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FIT68-4FIXED IND 43.3UH 4.8A 42.4 MOHM Triad Magnetics |
810 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | - | 4.8 A | - | - | Unshielded | 42.4mOhm Max | 43.3 µH | - | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | - | -40°C ~ 85°C | 10 kHz | 0.950" (24.13mm) |
|
|
FIT68-1FIXED IND 89.5UH 2.8A 108MOHM TH Triad Magnetics |
267 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | - | 2.8 A | - | - | Unshielded | 108mOhm Max | 89.5 µH | - | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | - | -40°C ~ 85°C | 10 kHz | 0.950" (24.13mm) |
|
RC-5FIXED IND 915UH 625MA 1 OHM TH Triad Magnetics |
1,444 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 625 mA | - | - | Unshielded | 1Ohm | 915 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-1FIXED IND 5.6MH 250MA 6.1 OHM TH Triad Magnetics |
1,111 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 250 mA | - | - | Unshielded | 6.1Ohm | 5.6 mH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-7FIXED IND 450UH 1A 420 MOHM TH Triad Magnetics |
590 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | - | Unshielded | 420mOhm | 450 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-9FIXED IND 200UH 1.6A 180 MOHM TH Triad Magnetics |
309 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 180mOhm | 200 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-3FIXED IND 2.5MH 400MA 2.45OHM TH Triad Magnetics |
272 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | - | - | Unshielded | 2.45Ohm | 2.5 mH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-8FIXED IND 250UH 1.25A 210MOHM TH Triad Magnetics |
109 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.25 A | - | - | Unshielded | 210mOhm | 250 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|

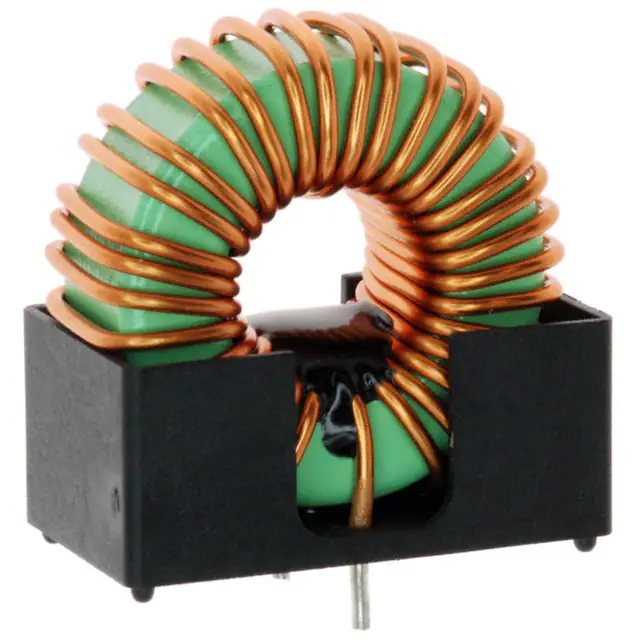

FIT106-1FIXED IND 253UH 4A 139 MOHM TH Triad Magnetics |
185 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | - | 4 A | - | - | Unshielded | 139mOhm Max | 253 µH | - | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | - | -40°C ~ 85°C | 10 kHz | 1.400" (35.56mm) |
|
|
FIT106-3FIXED IND 154UH 5.7A 74 MOHM TH Triad Magnetics |
176 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | - | 5.7 A | - | - | Unshielded | 74mOhm Max | 154 µH | - | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | - | -40°C ~ 85°C | 10 kHz | 1.400" (35.56mm) |
