固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-30220FIXED IND 22UH 3.1A 70 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | - | SMD | Unshielded | 70mOhm Max | 22 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|
|
AX97-302R2FIXED IND 2.2UH 7.4A 20 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.4 A | - | SMD | Unshielded | 20mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|
|
AX97-303R3FIXED IND 3.3UH 6.6A 20 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.6 A | - | SMD | Unshielded | 20mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|
|
AX97-30680FIXED IND 68UH 1.8A 200 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | - | SMD | Unshielded | 200mOhm Max | 68 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|
|
AX97-30681FIXED IND 680UH 400MA 2.2OHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | - | SMD | Unshielded | 2.2Ohm Max | 680 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|

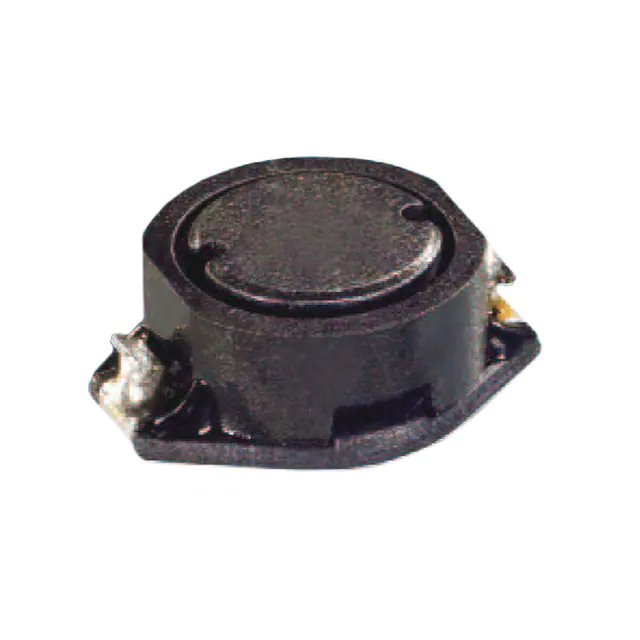

AX1005-102KFIXED IND 1MH 220MA 3.2 OHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX1005 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 220 mA | - | SMD | Shielded | 3.2Ohm Max | 1 mH | 70 @ 100kHz | 2MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.193" (4.90mm) |
|
AX97-40681FIXED IND 680UH 780MA 1 OHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 780 mA | - | SMD | Unshielded | 1Ohm Max | 680 µH | - | - | Surface Mount | - | 0.634" L x 0.622" W (16.10mm x 15.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.284" (7.21mm) |
|
|
AX97-40100FIXED IND 10UH 6.5A 20 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | - | SMD | Unshielded | 20mOhm Max | 10 µH | - | - | Surface Mount | - | 0.634" L x 0.622" W (16.10mm x 15.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.284" (7.21mm) |
|
|
AX97-40101FIXED IND 100UH 2A 150 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | SMD | Unshielded | 150mOhm Max | 100 µH | - | - | Surface Mount | - | 0.634" L x 0.622" W (16.10mm x 15.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.284" (7.21mm) |
|
|
AX97-40150FIXED IND 15UH 5.3A 30 MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.3 A | - | SMD | Unshielded | 30mOhm Max | 15 µH | - | - | Surface Mount | - | 0.634" L x 0.622" W (16.10mm x 15.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.284" (7.21mm) |
