固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM3015T-1R0MFIXED IND 1UH 3.5A 52.9 MOHM SMD TDK Corporation |
0 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 3.5 A | 5.1A | - | Shielded | 52.9mOhm Max | 1 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
SPM4015T-3R3M-LRFIXED IND 3.3UH 2.5A 116.6 MOHM TDK Corporation |
0 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.5 A | 3.9A | - | Shielded | 116.6mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
SPM4010T-R47M-LRFIXED IND 470NH 5.6A 25.3MOHM SM TDK Corporation |
0 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.6 A | 8.3A | - | Shielded | 25.3mOhm Max | 470 nH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
SPM4020T-R47MFIXED IND 470NH 6.1A 19.5MOHM SM TDK Corporation |
3 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 6.1 A | 10.6A | - | Shielded | 19.5mOhm Max | 470 nH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

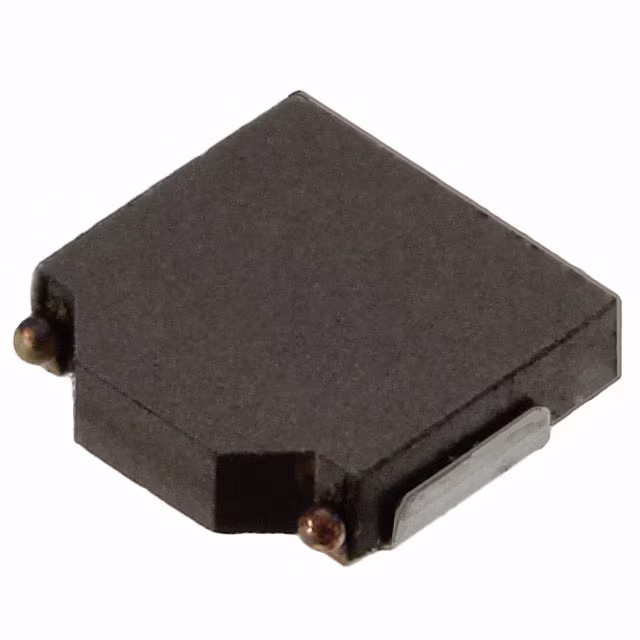

SPM4012T-1R0MFIXED IND 1UH 4.3A 45 MOHM SMD TDK Corporation |
0 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 4.3 A | 4.8A | - | Shielded | 45mOhm Max | 1 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|

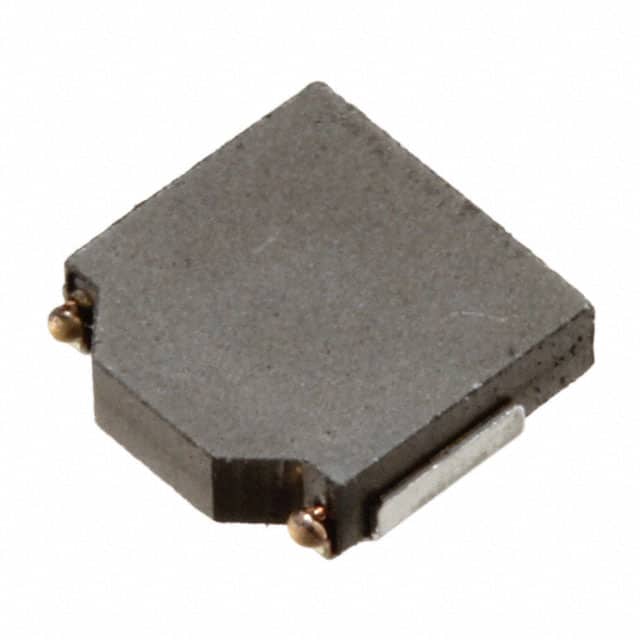

SPM4012T-1R5MFIXED IND 1.5UH 3.5A 70 MOHM SMD TDK Corporation |
0 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 3.5 A | 3.5A | - | Shielded | 70mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SPM4012T-2R2MFIXED IND 2.2UH 2.9A 95 MOHM SMD TDK Corporation |
0 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 2.9 A | 3.3A | - | Shielded | 95mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SPM4012T-3R3MFIXED IND 3.3UH 2.4A 145MOHM SMD TDK Corporation |
0 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 2.4 A | 2.8A | - | Shielded | 145mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SPM5012T-2R2MFIXED IND 2.2UH 2.7A 78.8MOHM SM TDK Corporation |
4 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 2.7 A | 4.9A | - | Shielded | 78.8mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SPM3020T-2R2MFIXED IND 2.2UH 2.8A 90 MOHM SMD TDK Corporation |
0 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 2.8 A | 3.9A | - | Shielded | 90mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
