固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS3015ET-220MFIXED IND 22UH 480MA 660MOHM SMD TDK Corporation |
10,278 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 480 mA | 480mA | - | Shielded | 660mOhm Max | 22 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
VLS201610CX-2R2M-1FIXED IND 2.2UH 1.53A 163MOHM SM TDK Corporation |
6,460 | - |
|
数据表 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.53 A | 1.31A | 2016 | Shielded | 163mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
VLS5045EX-3R3NFIXED IND 3.3UH 4.2A 35.1MOHM SM TDK Corporation |
64,395 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.2 A | 5.2A | - | Shielded | 35.1mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
|
NLFV25T-3R3M-EFFIXED IND 3.3UH 280MA 240MOHM SM TDK Corporation |
3,900 | - |
|
数据表 |
NLFV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 280 mA | - | - | Shielded | 240mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.075" (1.90mm) |
E.JPG)
|

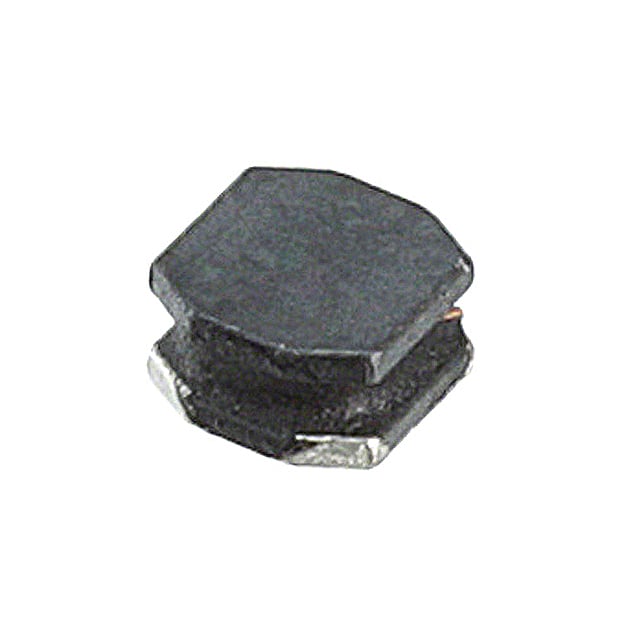

VLS2010ET-100MFIXED IND 10UH 470MA 936MOHM SMD TDK Corporation |
3,430 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | ±20% | 470 mA | 470mA | - | Shielded | 936mOhm Max | 10 µH | - | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
TFM252012ALMAR15MTAAFIXED IND 150NH 7.3A 11 MOHM SMD TDK Corporation |
60,459 | - |
|
数据表 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 7.3 A | 9A | 1008 | Shielded | 11mOhm Max | 150 nH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|
VLS6045EX-2R0NFIXED IND 2UH 5.2A 18 MOHM SMD TDK Corporation |
2,381 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±30% | 5.2 A | 8A | - | Shielded | 18mOhm | 2 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
|
VLS6045EX-330MFIXED IND 33UH 1.5A 228 MOHM SMD TDK Corporation |
16,441 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.9A | - | Shielded | 175mOhm | 33 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
|
|
VLS252010CX-1R0M-1FIXED IND 1UH 2.29A 65 MOHM SMD TDK Corporation |
9,432 | - |
|
数据表 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.29 A | 2.25A | 2520 | Shielded | 65mOhm Max | 1 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
|
VLS6045EX-470MFIXED IND 47UH 1.3A 299 MOHM SMD TDK Corporation |
64,362 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.8A | - | Shielded | 230mOhm | 47 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
