固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCDND2020KKTR47MMFIXED IND 470NH 2.2A 46 MOHM SMD Taiyo Yuden |
5,000 | - |
|
数据表 |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 2.2 A | 3.5A | - | Unshielded | 46mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
LCDND2020KKT3R3MMFIXED IND 3.3UH 940MA 275MOHM SM Taiyo Yuden |
4,980 | - |
|
数据表 |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 940 mA | 1.3A | - | Unshielded | 275mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
LCDND2020KKTR68MMFIXED IND 680NH 2A 60 MOHM SMD Taiyo Yuden |
4,940 | - |
|
数据表 |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 2 A | 3.2A | - | Unshielded | 60mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
LCDND2020KKT4R7MMFIXED IND 4.7UH 750MA 435MOHM SM Taiyo Yuden |
4,450 | - |
|
数据表 |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 750 mA | 1.05A | - | Unshielded | 435mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
NS10155T1R5NNAFIXED IND 1.5UH 8.39A 7.2MOHM SM Taiyo Yuden |
2,378 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 8.39 A | 11.9A | - | Shielded | 7.2mOhm Max | 1.5 µH | - | 75.5MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
MDKK2020T2R2MMVFIXED IND 2.2UH 1.35A 165MOHM SM Taiyo Yuden |
2,370 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.35 A | 1.65A | - | Shielded | 165mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|

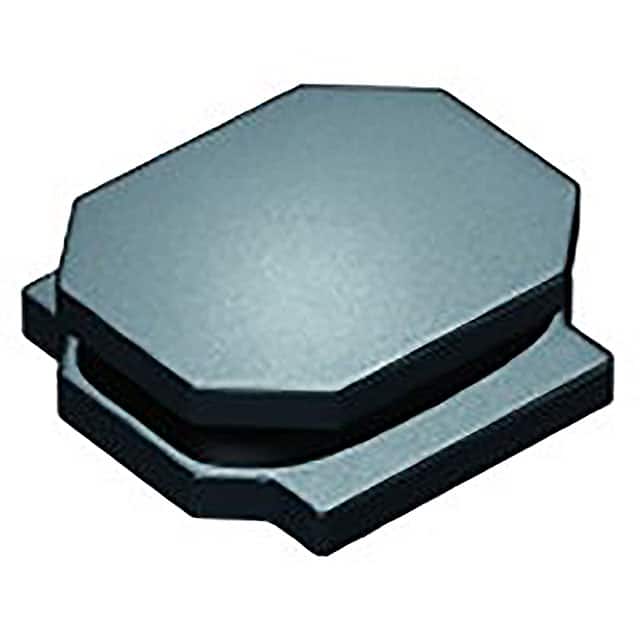

LCXAF6060YEL3R3MMRINDUCTOR POWER 3.3UH SMD Taiyo Yuden |
2,990 | - |
|
数据表 |
LCXA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 3.8 A | 9A | 2424 | Unshielded | 32mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
-2,00mm.jpg)
|
CB2518T100KFIXED IND 10UH 820MA 325MOHM SMD Taiyo Yuden |
46,988 | - |
|
数据表 |
CB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 820 mA | 250mA | 1007 (2518 Metric) | Unshielded | 325mOhm Max | 10 µH | - | 30MHz | Surface Mount | - | 0.098" L x 0.071" W (2.50mm x 1.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.079" (2.00mm) |
|
NS10145T330MNAFIXED IND 33UH 2.01A 98.4MOHM SM Taiyo Yuden |
1,845 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.01 A | 2.36A | - | Shielded | 98.4mOhm Max | 33 µH | - | 10.5MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
|
CB2518T331KFIXED IND 330UH 140MA 9.1OHM SMD Taiyo Yuden |
17,649 | - |
|
数据表 |
CB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | 40mA | 1007 (2518 Metric) | Unshielded | 9.1Ohm Max | 330 µH | - | 4.5MHz | Surface Mount | - | 0.098" L x 0.071" W (2.50mm x 1.80mm) | - | -40°C ~ 105°C | 796 kHz | 0.079" (2.00mm) |
