固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND5050PKT3R3NMGFIXED IND 3.3UH 1.7A 96 MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 1.7 A | 2.35A | - | Unshielded | 80mOhm | 3.3 µH | - | 48MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
LCXND5050PKTR47NMGFIXED IND 470NH 3.3A 30 MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 3.3 A | 5.8A | - | Unshielded | 25mOhm | 470 nH | - | 185MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
LCXND5050MKT1R5NMGFIXED IND 1.5UH 2.2A 84 MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 2.2 A | 3.8A | - | Unshielded | 70mOhm | 1.5 µH | - | 86MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
LCXND5050PKT220MMGFIXED IND 22UH 550MA 540MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 550 mA | 900mA | - | Unshielded | 450mOhm | 22 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
LCXND5050PKT4R7NMGFIXED IND 4.7UH 1.4A 120MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 1.4 A | 2.05A | - | Unshielded | 100mOhm | 4.7 µH | - | 41MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
LCXND5050MKT3R3MMGFIXED IND 3.3UH 1.45A 192MOHM SM Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.45 A | 2.4A | - | Unshielded | 160mOhm | 3.3 µH | - | 48MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
LCXND5050MKT150MMGFIXED IND 15UH 640MA 804MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 640 mA | 1.2A | - | Unshielded | 670mOhm | 15 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
LCXND5050MKT1R0NMGFIXED IND 1UH 2.3A 63.6 MOHM SMD Taiyo Yuden |
2,000 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 2.3 A | 4.5A | - | Unshielded | 53mOhm | 1 µH | - | 100MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
NRM6045T1R5NMRRVFIXED IND 1.5UH 3.4A 19MOHM SMD Taiyo Yuden |
1,410 | - |
|
数据表 |
NR, M Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.4 A | - | - | Unshielded | 19mOhm Max | 1.5 µH | - | 77MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

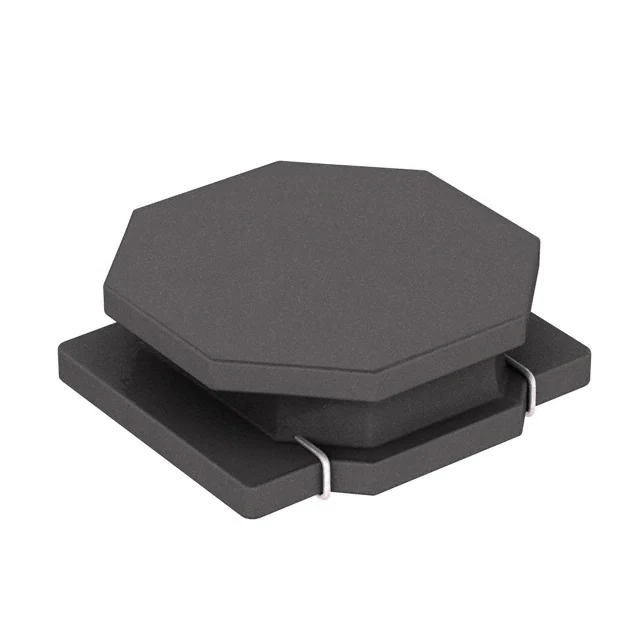

MDKK3030T100MMFIXED IND 10UH 850MA 575MOHM SMD Taiyo Yuden |
3,230 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 850 mA | 1.1A | - | Shielded | 575mOhm Max | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
