固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXND4040KKL3R3MDGFIXED IND 3.3UH 1.4A 120MOHM SMD Taiyo Yuden |
9,983 | - |
|
数据表 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.4 A | 1.1A | 1616 | Shielded | 120mOhm Max | 3.3 µH | - | 58MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
LSXND4040KKL330MDGFIXED IND 33UH 350MA 1.08OHM SMD Taiyo Yuden |
9,905 | - |
|
数据表 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 400 mA | 350mA | 1616 | Shielded | 1.08Ohm Max | 33 µH | - | 15MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
LSXND4040KKL150MDGFIXED IND 15UH 600MA 516MOHM SMD Taiyo Yuden |
9,855 | - |
|
数据表 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 600 mA | 540mA | 1616 | Shielded | 516mOhm Max | 15 µH | - | 24MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|

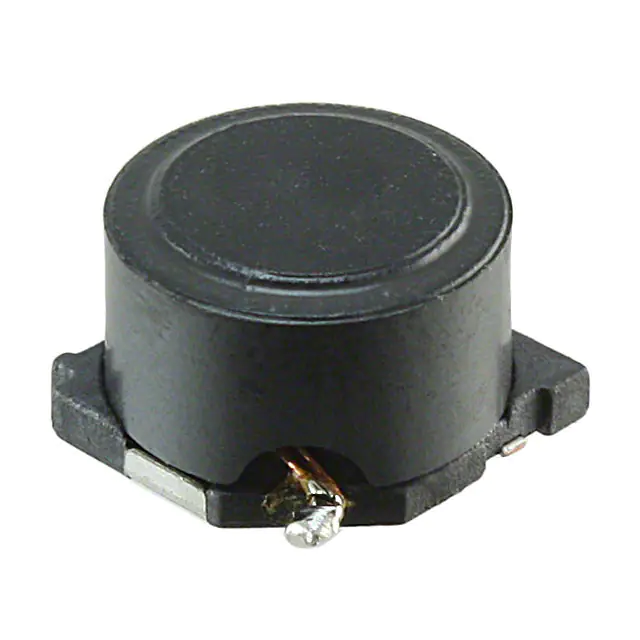

NS10165T220MNAFIXED IND 22UH 3.41A 37.2MOHM SM Taiyo Yuden |
23,590 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.41 A | 3.6A | - | Shielded | 37.2mOhm Max | 22 µH | - | 10.6MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.270" (6.85mm) |
|
LSCNE2016FETR47MCBFIXED INDUCTOR 0.47UH SMD MCOIL Taiyo Yuden |
7,769 | - |
|
数据表 |
LSCN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | ±20% | 3.2 A | 4A | 0806 | Unshielded | 45mOhm Max | 470 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.026" (0.65mm) |
|
NR3012T2R2MFIXED IND 2.2UH 1.2A 96 MOHM SMD Taiyo Yuden |
4,626 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.1A | - | Shielded | 96mOhm Max | 2.2 µH | - | 70MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.047" (1.20mm) |
|
LSXND6060YEL1R5NMGFIXED IND 1.5UH 4.2A 20.8MOHM SM Taiyo Yuden |
4,348 | - |
|
数据表 |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 4.2 A | 8.2A | 2424 | Shielded | 20.8mOhm Max | 1.5 µH | - | 95MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
-MCoil-MC-Series.jpg)
|
MCFE1608TR47MGFIXED IND 470NH 2A 150 MOHM SMD Taiyo Yuden |
3,998 | - |
|
数据表 |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | ±20% | 2 A | - | 0603 (1608 Metric) | Shielded | 150mOhm Max | 470 nH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 1 MHz | 0.026" (0.65mm) |
|
LSXND6060YEL2R2NMGFIXED IND 2.2UH 3.6A 28.6MOHM SM Taiyo Yuden |
2,778 | - |
|
数据表 |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 3.6 A | 6.4A | 2424 | Shielded | 28.6mOhm Max | 2.2 µH | - | 60MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
-MCoil-MC-Series.jpg)
|
MCKK2012TR24MFIXED IND 240NH 6.2A 25 MOHM SMD Taiyo Yuden |
1,170 | - |
|
数据表 |
MCOIL™, MC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | ±20% | 6.2 A | - | 0805 (2012 Metric) | Shielded | 25mOhm Max | 240 nH | - | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
