固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|
BRC2012T4R7MDFIXED IND 4.7UH 600MA 344.5 MOHM Taiyo Yuden |
157,948 | - |
|
数据表 |
BR, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 700mA | 0805 (2012 Metric) | Unshielded | 344.5mOhm Max | 4.7 µH | - | 250MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 1 MHz | 0.055" (1.40mm) |
-1,45mm.jpg)
|
CBC2012T1R0MFIXED IND 1UH 840MA 247 MOHM SMD Taiyo Yuden |
21,479 | - |
|
数据表 |
CB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 840 mA | 700mA | 0805 (2012 Metric) | Unshielded | 247mOhm Max | 1 µH | - | 100MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.057" (1.45mm) |
|
CBMF1608T470KFIXED IND 47UH 140MA 3.25OHM SMD Taiyo Yuden |
155,436 | - |
|
数据表 |
CB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | 50mA | 0603 (1608 Metric) | Unshielded | 3.25Ohm Max | 47 µH | - | 11MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.039" (1.00mm) |
|
NRS5030T100MMGJFIXED IND 10UH 1.7A 70 MOHM SMD Taiyo Yuden |
100,326 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 2.1A | - | Shielded | 70mOhm | 10 µH | - | 20MHz | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -25°C ~ 120°C | 100 kHz | 0.122" (3.10mm) |
|
|
CBMF1608T100MFIXED IND 10UH 380MA 468MOHM SMD Taiyo Yuden |
15,403 | - |
|
数据表 |
CB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 380 mA | 115mA | - | Unshielded | 468mOhm Max | 10 µH | - | 32MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.039" (1.00mm) |
|
|
CBMF1608T100KFIXED IND 10UH 380MA 468MOHM SMD Taiyo Yuden |
14,646 | - |
|
数据表 |
CB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 115 mA | 115mA | 0603 (1608 Metric) | Unshielded | 468mOhm Max | 10 µH | - | 32MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.039" (1.00mm) |
|
|
BRL2012TR47MFIXED IND 470NH 1.05A 117MOHM SM Taiyo Yuden |
5,195 | - |
|
数据表 |
BR, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.05 A | 1.1A | 0805 (2012 Metric) | Unshielded | 117mOhm Max | 470 nH | - | 350MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.039" (1.00mm) |
|

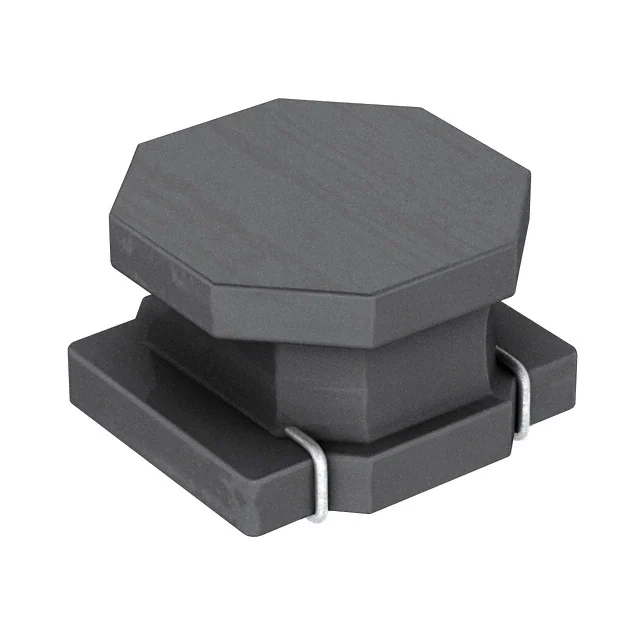

MDKK1616T100MMFIXED IND 10UH 450MA 1.12OHM SMD Taiyo Yuden |
4,681 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 450 mA | 800mA | - | Shielded | 1.12Ohm Max | 10 µH | - | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
-BR-Series.jpg)
|
BRL3225T101KFIXED IND 100UH 250MA 3 OHM SMD Taiyo Yuden |
19,726 | - |
|
数据表 |
BR, L Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 250 mA | 270mA | 1210 | Unshielded | 3Ohm Max | 100 µH | - | 5MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.067" (1.70mm) |
-BR-Series.jpg)
|
BRC2016T470KFIXED IND 47UH 210MA 2.86OHM SMD Taiyo Yuden |
3,813 | - |
|
数据表 |
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 210 mA | 210mA | 0806 (2016 Metric) | Unshielded | 2.86Ohm Max | 47 µH | - | 11MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
