固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CEP125-5R6MC-HFIXED IND 5.6UH 8.2A 11.4MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CEP125 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 8.2 A | 8.8A | - | Shielded | 11.4mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.220" (5.60mm) |
|

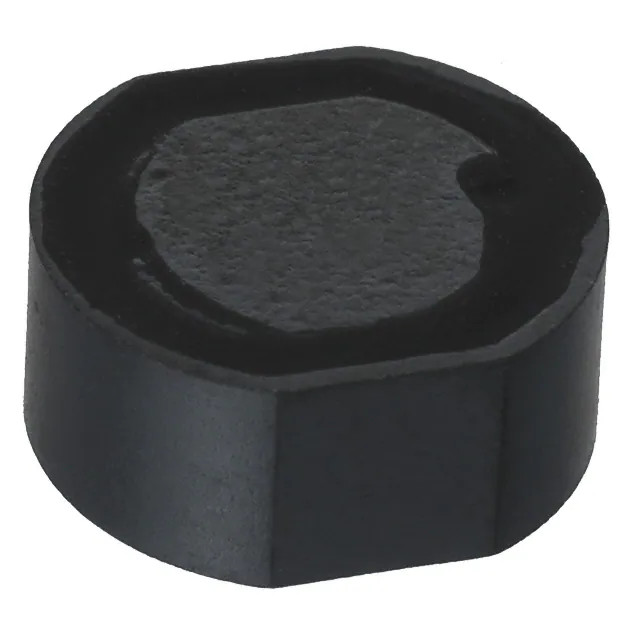

CDR105NP-270MCFIXED IND 27UH 1.54A 110MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 1.54 A | - | - | Shielded | 110mOhm Max | 27 µH | - | 18MHz | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
|
CDRH127/LD-100MCFIXED IND 10UH 6.7A 19.5MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 6.7 A | - | - | Shielded | 19.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-101MCFIXED IND 100UH 2.1A 151MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.1 A | - | - | Shielded | 151mOhm Max | 100 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-102MCFIXED IND 1MH 700MA 1.5 OHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 700 mA | - | - | Shielded | 1.5Ohm Max | 1 mH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-120MCFIXED IND 12UH 6.45A 21.3MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 6.45 A | - | - | Shielded | 21.3mOhm Max | 12 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-121MCFIXED IND 120UH 1.9A 169MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.9 A | - | - | Shielded | 169mOhm Max | 120 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-150MCFIXED IND 15UH 5.65A 26.4MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 5.65 A | - | - | Shielded | 26.4mOhm Max | 15 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-151MCFIXED IND 150UH 1.8A 227MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.8 A | - | - | Shielded | 227mOhm Max | 150 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
|
CDRH127/LD-180MCFIXED IND 18UH 5.1A 28 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 5.1 A | - | - | Shielded | 28mOhm Max | 18 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
