固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH62BNP-7R1NC-BFIXED IND 7.1UH 1.22A 110MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | -20%, +40% | 1.22 A | - | - | Shielded | 110mOhm Max | 7.1 µH | - | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.118" (3.00mm) |
|
|
CDRH62BNP-820MC-BFIXED IND 82UH 380MA 1.21OHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 380 mA | - | - | Shielded | 1.21Ohm Max | 82 µH | - | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | - | -40°C ~ 100°C | 1 kHz | 0.118" (3.00mm) |
|
|
CDRH62BNP-8R0NC-BFIXED IND 8UH 1.15A 120 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | -20%, +40% | 1.15 A | - | - | Shielded | 120mOhm Max | 8 µH | - | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.118" (3.00mm) |
|

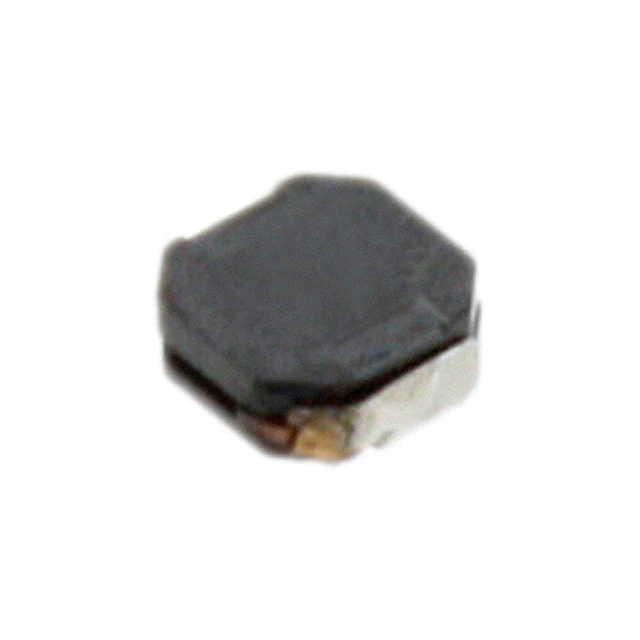

CDPH28D11FHF-1R0NCFIXED IND 1UH 1.83A 62 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDPH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.83 A | 1.78A | - | Shielded | 62mOhm Max | 1 µH | - | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|
|
CDPH28D11FHF-1R5NCFIXED IND 1.5UH 1.74A 86MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDPH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.74 A | 1.59A | - | Shielded | 86mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|
|
CDPH28D11FHF-2R7MCFIXED IND 2.7UH 1.49A 116MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDPH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.49 A | 1.22A | - | Shielded | 116mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|
CDPH28D11FNP-120MCINDUCTOR Sumida America Components Inc. |
0 | - |
|
数据表 |
CDPH28D11F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 730 mA | 500mA | - | Shielded | 453mOhm Max | 12 µH | - | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|
|
CLS4D28NP-100NCFIXED IND 10UH 1.3A SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CLS4D28 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 1.3 A | 850mA | - | Shielded | - | 10 µH | - | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | - | - | - | 0.098" (2.50mm) |
|
|
CLS4D28NP-150NCFIXED IND 15UH 1.1A SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CLS4D28 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 1.1 A | 650mA | - | Shielded | - | 15 µH | - | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | - | - | - | 0.098" (2.50mm) |
|
|
CLS4D28NP-220NCFIXED IND 22UH 950MA SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CLS4D28 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 950 mA | 550mA | - | Shielded | - | 22 µH | - | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | - | - | - | 0.098" (2.50mm) |
