固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

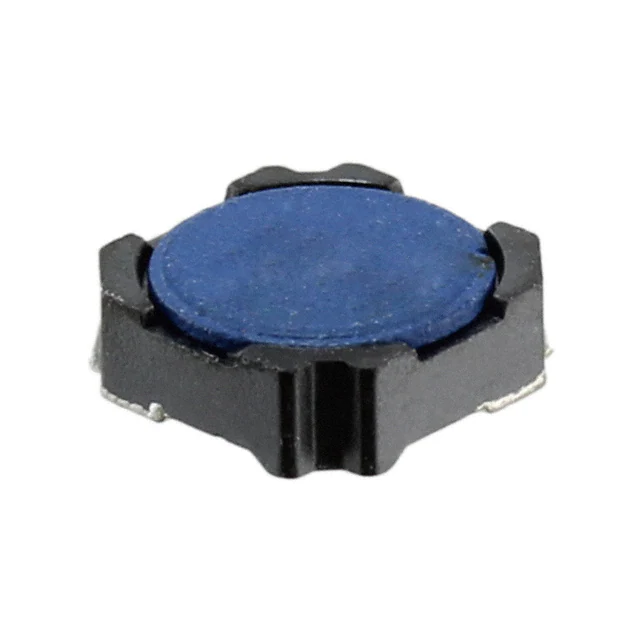

CDR6D23MNNP-390NCFIXED IND 39UH 580MA 393.8 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 580 mA | 900mA | - | Shielded | 393.8mOhm Max | 39 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-3R3NCFIXED IND 3.3UH 2.25A 46.3 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 2.25 A | 2.95A | - | Shielded | 46.3mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-470NCFIXED IND 47UH 540MA 456.3 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 540 mA | 800mA | - | Shielded | 456.3mOhm Max | 47 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-4R2NCFIXED IND 4.2UH 2.05A 52.5 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 2.05 A | 2.6A | - | Shielded | 52.5mOhm Max | 4.2 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-560NCFIXED IND 56UH 510MA 481.2 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 510 mA | 750mA | - | Shielded | 481.2mOhm Max | 56 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-5R1NCFIXED IND 5.1UH 1.9A 60 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.9 A | 2.45A | - | Shielded | 60mOhm Max | 5.1 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-680NCFIXED IND 68UH 450MA 751.3 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 450 mA | 650mA | - | Shielded | 751.3mOhm Max | 68 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-6R1NCFIXED IND 6.1UH 1.8A 66.3MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.8 A | 2.3A | - | Shielded | 66.3mOhm Max | 6.1 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-7R2NCFIXED IND 7.2UH 1.7A 72.5MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.7 A | 2.1A | - | Shielded | 72.5mOhm Max | 7.2 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
|
CDR6D23MNNP-820NCFIXED IND 82UH 430MA 803.8 MOHM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDR6D23MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 430 mA | 600mA | - | Shielded | 803.8mOhm Max | 82 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
