固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDH80D48NP-101KCFIXED IND 100UH 1.03A 330MOHM SM Sumida America Components Inc. |
481 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.03 A | 1.02A | - | Unshielded | 330mOhm Max | 100 µH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|

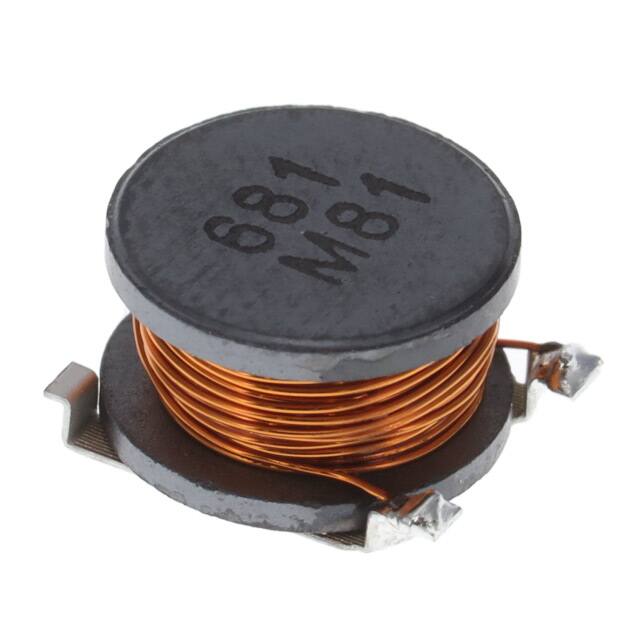

CDH80D48NP-681KCFIXED IND 680UH 370MA 2.06OHM SM Sumida America Components Inc. |
448 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 370 mA | 390mA | - | Unshielded | 2.06Ohm Max | 680 µH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
CDH80D48NP-152KCFIXED IND 1.5MH 250MA 4.69OHM SM Sumida America Components Inc. |
324 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 250 mA | 260mA | - | Unshielded | 4.69Ohm Max | 1.5 mH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
CDH80D48NP-332KCFIXED IND 3.3MH 160MA 11.2OHM SM Sumida America Components Inc. |
227 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 160 mA | 180mA | - | Unshielded | 11.2Ohm Max | 3.3 mH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
CDRH127NP-102MCFIXED IND 1MH 550MA 1.82 OHM SMD Sumida America Components Inc. |
1,491 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 550 mA | - | - | Shielded | 1.82Ohm Max | 1 mH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
CDRH70D45BT150NP-101MCFIXED IND 100UH 1.23A 300MOHM SM Sumida America Components Inc. |
1,480 | - |
|
数据表 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.23 A | 920mA | - | Shielded | 300mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.303" L x 0.287" W (7.70mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
CDRH127NP-820MCFIXED IND 82UH 1.95A 160MOHM SMD Sumida America Components Inc. |
422 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.95 A | - | - | Shielded | 160mOhm Max | 82 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
CDH80D48NP-221KCFIXED IND 220UH 650MA 750MOHM SM Sumida America Components Inc. |
500 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 650 mA | 680mA | - | Unshielded | 750mOhm Max | 220 µH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
CDH80D48NP-102KCFIXED IND 1MH 310MA 2.94 OHM SMD Sumida America Components Inc. |
410 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 310 mA | 320mA | - | Unshielded | 2.94Ohm Max | 1 mH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
CDRH12D77BT150NP-100MCFIXED IND 10UH 7.5A 19 MOHM SMD Sumida America Components Inc. |
144 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 7.5 A | 9.7A | - | Shielded | 19mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.516" L x 0.504" W (13.10mm x 12.80mm) | - | -55°C ~ 150°C | 100 kHz | 0.315" (8.00mm) |
