固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
54060153400FIXED IND 1.5NH 1A 25 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 1 A | - | 0605 (1712 Metric) | Unshielded | 25mOhm Max | 1.5 nH | 22 @ 250MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
|
54060393400FIXED IND 3.9NH 900MA 35MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 900 mA | - | 0605 (1712 Metric) | Unshielded | 35mOhm Max | 3.9 nH | 35 @ 250MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
|
54062203400FIXED IND 22NH 450MA 135MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 450 mA | - | 0605 (1712 Metric) | Unshielded | 135mOhm Max | 22 nH | 45 @ 250MHz | 3.1GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
55081203400FIXED IND 12NH 700MA 60 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5508 | 0805 (2012 Metric) | Cut Tape (CT) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0805 (2012 Metric) | Unshielded | 60mOhm Max | 12 nH | 40 @ 250MHz | 4GHz | Surface Mount | - | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | -55°C ~ 125°C | 250 MHz | 0.056" (1.42mm) |
|
|
55081503400FIXED IND 15NH 670MA 70 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5508 | 0805 (2012 Metric) | Cut Tape (CT) | Active | Drum Core, Wirewound | Ceramic | ±5% | 670 mA | - | 0805 (2012 Metric) | Unshielded | 70mOhm Max | 15 nH | 40 @ 250MHz | 3.5GHz | Surface Mount | - | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | -55°C ~ 125°C | 250 MHz | 0.056" (1.42mm) |
|
|
54062703400FIXED IND 27NH 500MA 115MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 500 mA | - | 0605 (1712 Metric) | Unshielded | 115mOhm Max | 27 nH | 45 @ 250MHz | 2.9GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
|
CDRH5D16F/LDNP-2R2NCFIXED IND 2.2UH 3.8A 27 MOHM SMD Sumida America Components Inc. |
14 | - |
|
数据表 |
CDRH5D16F/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 3.8 A | 1.8A | - | Shielded | 27mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|

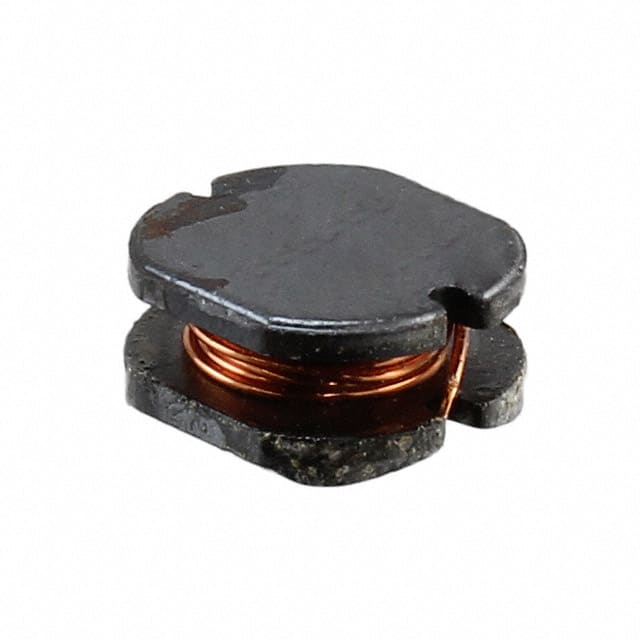

CD73NP-330MCFIXED IND 33UH 850MA 170MOHM SMD Sumida America Components Inc. |
20 | - |
|
数据表 |
CD73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 850 mA | - | - | Unshielded | 170mOhm Max | 33 µH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -30°C ~ 100°C | 2.52 MHz | 0.157" (4.00mm) |
|
0830CDMCCDS-6R8MCFIXED IND 6.8UH 6A 43 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6 A | 6.3A | - | Shielded | 43mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
5508 471 34 00FIXED IND 470NH 115MA 2.4OHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 115 mA | - | 0805 (2012 Metric) | Unshielded | 2.4Ohm Max | 470 nH | 35 @ 100MHz | 660MHz | Surface Mount | - | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.056" (1.42mm) |
