固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

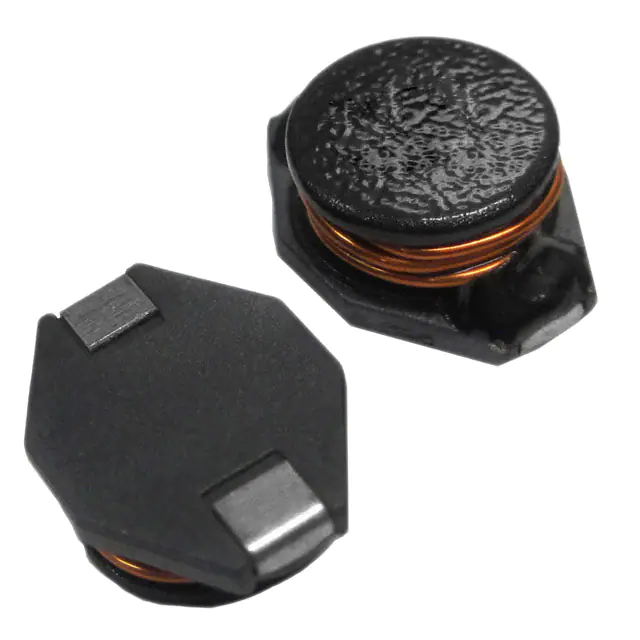

ASPI-1306T-8R2M-TFIXED IND 8.2UH 4.8A 29 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.8 A | 10A | - | Unshielded | 29mOhm Max | 8.2 µH | - | 30MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-100M-TFIXED IND 10UH 4.3A 31 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.3 A | 10A | - | Unshielded | 31mOhm Max | 10 µH | - | 30MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-150M-TFIXED IND 15UH 4A 36 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 8A | - | Unshielded | 36mOhm Max | 15 µH | - | 22MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-330M-TFIXED IND 33UH 3A 66 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 5.5A | - | Unshielded | 66mOhm Max | 33 µH | - | 15MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-750M-TFIXED IND 75UH 2.3A 152 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 3A | - | Unshielded | 152mOhm Max | 75 µH | - | 8MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-151M-TFIXED IND 150UH 1.5A 250MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2.6A | - | Unshielded | 250mOhm Max | 150 µH | - | 6MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-221M-TFIXED IND 220UH 1.2A 380MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 2.4A | - | Unshielded | 380mOhm Max | 220 µH | - | 5MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-331M-TFIXED IND 330UH 1A 560 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.9A | - | Unshielded | 560mOhm Max | 330 µH | - | 4MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-471M-TFIXED IND 470UH 820MA 850MOHM SM Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 820 mA | 1.4A | - | Unshielded | 850mOhm Max | 470 µH | - | 3MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
ASPI-1306T-681M-TFIXED IND 680UH 720MA 1.1OHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 720 mA | 1.2A | - | Unshielded | 1.1Ohm Max | 680 µH | - | 2.5MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
