固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

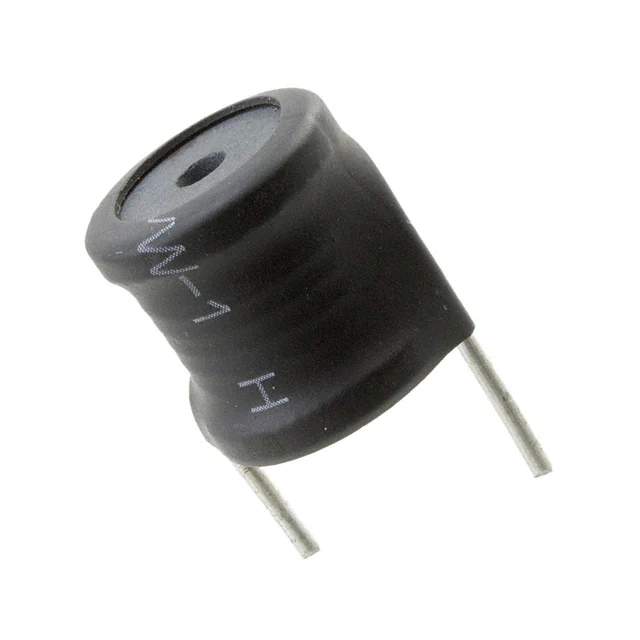

AIRD-02-222KFIXED IND 2.2MH 800MA 1.54OHM TH Abracon LLC |
278 | - |
|
数据表 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | 2A | - | Unshielded | 1.54Ohm Max | 2.2 mH | - | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
|
AIRD-02-470KFIXED IND 47UH 5.5A 35 MOHM TH Abracon LLC |
1,730 | - |
|
数据表 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.5 A | 15A | - | Unshielded | 35mOhm Max | 47 µH | - | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
|
AIRD-02-122KFIXED IND 1.2MH 800MA 1.14OHM TH Abracon LLC |
578 | - |
|
数据表 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | 2.7A | - | Unshielded | 1.14Ohm Max | 1.2 mH | - | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
|
AIRD-02-681KFIXED IND 680UH 1.6A 430 MOHM TH Abracon LLC |
555 | - |
|
数据表 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | 3.7A | - | Unshielded | 430mOhm Max | 680 µH | - | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
|
AIRD-02-221KFIXED IND 220UH 2.8A 150 MOHM TH Abracon LLC |
334 | - |
|
数据表 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 7A | - | Unshielded | 150mOhm Max | 220 µH | - | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
.jpg)
|
AIRD-06-102KFIXED IND 1MH 1A 818 MOHM TH Abracon LLC |
886 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 3.1A | - | Unshielded | 818mOhm Max | 1 mH | 15 @ 50kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
|
AIRD-03-221KFIXED IND 220UH 5.5A 80 MOHM TH Abracon LLC |
391 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.5 A | 8.7A | - | Unshielded | 80mOhm Max | 220 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
|
AIRD-03-471KFIXED IND 470UH 4A 187 MOHM TH Abracon LLC |
381 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 4 A | 6A | - | Unshielded | 187mOhm Max | 470 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
|
AIRD-03-821KFIXED IND 820UH 2A 320 MOHM TH Abracon LLC |
325 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2 A | 4.5A | - | Unshielded | 320mOhm Max | 820 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
|
AIRD-03-681KFIXED IND 680UH 2.8A 256 MOHM TH Abracon LLC |
324 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 5A | - | Unshielded | 256mOhm Max | 680 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
