固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH50B-0.62-1500FIXED IND 1.5MH 620MA 1 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 620 mA | - | - | Unshielded | 1Ohm Max | 1.5 mH | - | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | - | -40°C ~ 125°C | 10 kHz | 1.378" (35.00mm) |
|
|
SH50B-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 420 mA | - | - | Unshielded | 1.8Ohm Max | 2.2 mH | - | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | - | -40°C ~ 125°C | 10 kHz | 1.378" (35.00mm) |
|
SWS-2.24-37FIXED IND 37UH 2.24A 100MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 2.24 A | - | - | Unshielded | 100mOhm | 37 µH | - | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.325" (8.25mm) |
|
SWC-5.0-33FIXED IND 33UH 5A 47 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 47mOhm | 33 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 130°C | 10 kHz | 1.059" (26.90mm) |
|
SH260C-5.0-33FIXED IND 33UH 5A 47 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 47mOhm | 33 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
|
SH150T-2.22-114FIXED IND 114UH 2.22A 100MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 2.22 A | - | - | Unshielded | 100mOhm | 114 µH | - | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.386" (9.80mm) |
|
|
SWS6-1.4-220FIXED IND 220UH 1.4A 140MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 1.4 A | - | - | Unshielded | 140mOhm Max | 220 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 20 kHz | 0.541" (13.75mm) |
|
|
SWC-2.50-167FIXED IND 167UH 2.5A 140 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 2.5 A | - | - | Unshielded | 140mOhm | 167 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|

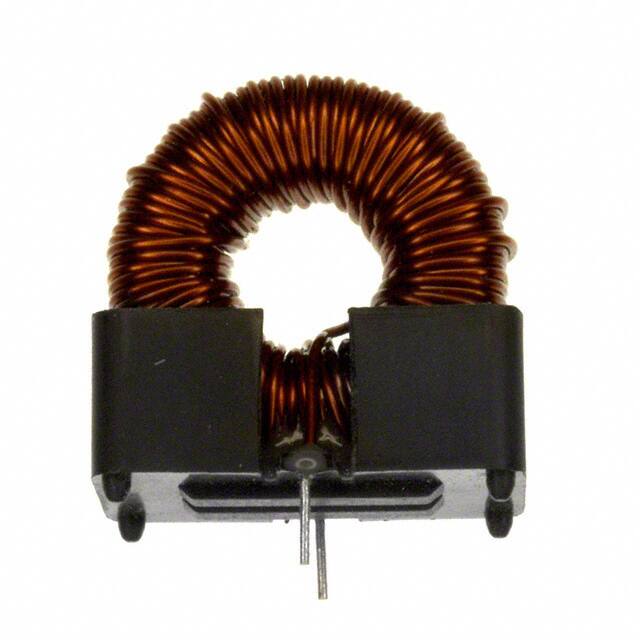

SH150C-2.50-167FIXED IND 167UH 2.5A 140 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 2.5 A | - | - | Unshielded | 140mOhm | 167 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
|
SWC-3.00-110FIXED IND 110UH 3A 90 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 90mOhm | 110 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
