固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

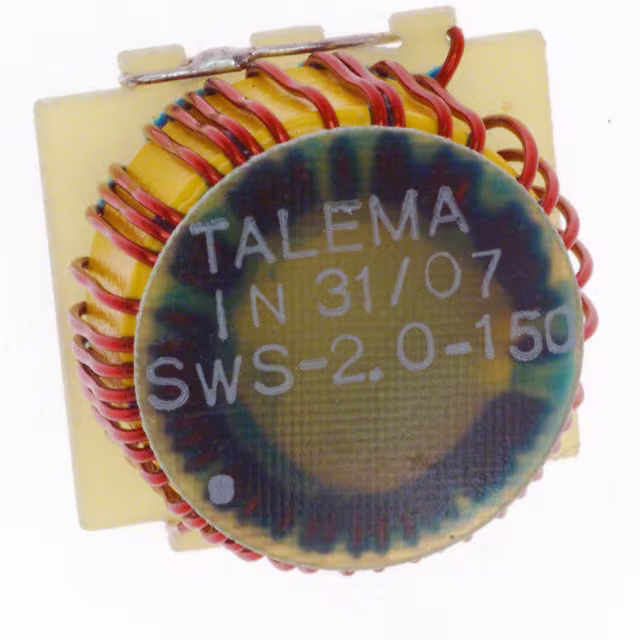

SWS-2.0-150FIXED IND 150UH 2A 100 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 2 A | - | - | Unshielded | 100mOhm Max | 150 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 20 kHz | 0.541" (13.75mm) |
|
SWS-5.0-50FIXED IND 52UH 5A 25 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 25mOhm | 52 µH | - | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | - | -40°C ~ 130°C | 10 kHz | 0.510" (12.95mm) |
|
SH260S-5.0-50FIXED IND 52UH 5A 25 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 25mOhm | 52 µH | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | - | -40°C ~ 125°C | 10 kHz | 0.500" (12.70mm) |
|
SWS-3.00-77FIXED IND 77UH 3A 80 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 80mOhm | 77 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.506" (12.85mm) |
|

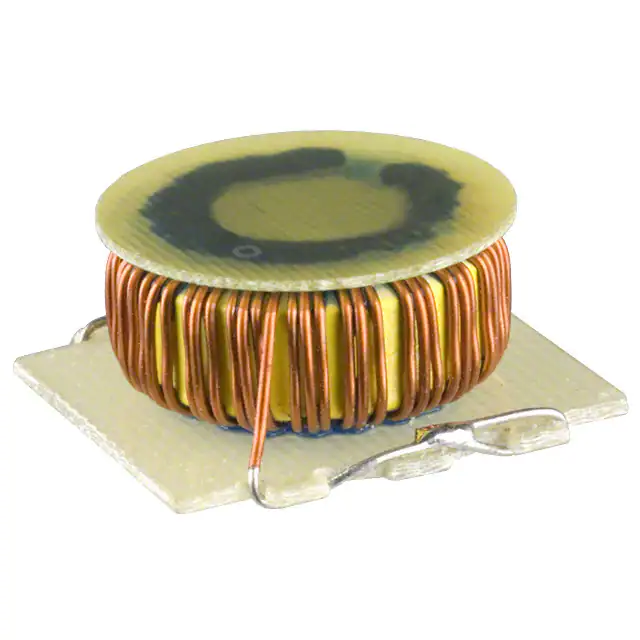

SWS-2.70-77FIXED IND 77UH 2.7A 90 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 2.7 A | - | - | Unshielded | 90mOhm | 77 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.506" (12.85mm) |
|
|
SWS-3.00-53FIXED IND 53UH 3A 80 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 80mOhm | 53 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.506" (12.85mm) |
|

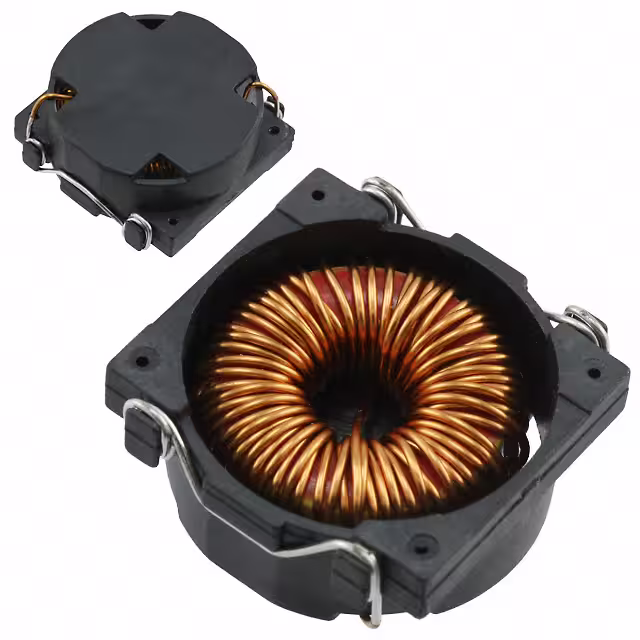

SH150S-2.70-77FIXED IND 77UH 2.7A 90 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 2.7 A | - | - | Unshielded | 90mOhm | 77 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.427" (10.85mm) |
|
|
SH260T-4.3-10FIXED IND 10UH 4.3A 26 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 4.3 A | - | - | Unshielded | 26mOhm | 10 µH | - | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.358" (9.10mm) |
|
|
SWS-1.50-250FIXED IND 250UH 1.5A 230MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 1.5 A | - | - | Unshielded | 230mOhm | 250 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.506" (12.85mm) |
|
SH150S-1.50-250FIXED IND 250UH 1.5A 230MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.5 A | - | - | Unshielded | 230mOhm | 250 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.427" (10.85mm) |
