固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

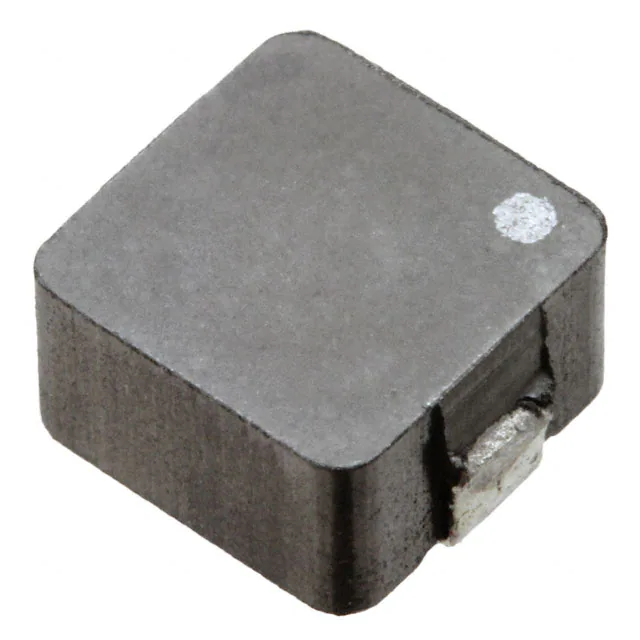

MPCH0740LR24FIXED IND 240NH 27A 1 MOHM SMD KEMET |
3,166 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 27 A | 20A | - | Shielded | 1mOhm | 240 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
SBC6-152-451FIXED IND 1.5MH 450MA 1.8 OHM TH KEMET |
418 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 450 mA | 900mA | - | Unshielded | 1.8Ohm Max | 1.5 mH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|
|
SBC6-102-561FIXED IND 1MH 560MA 1.21 OHM TH KEMET |
308 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 560 mA | 1.1A | - | Unshielded | 1.21Ohm Max | 1 mH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|

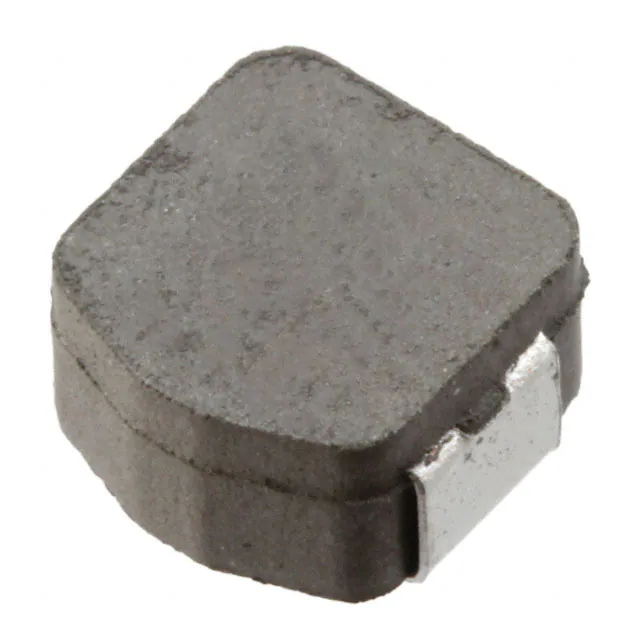

MPLCG0530L2R2FIXED IND 2.2UH 4.5A 0.0364OHM KEMET |
14,216 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 4.5 A | 5A | - | Shielded | 36.4mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPLC0730L4R7FIXED IND 4.7UH 5A 41 MOHM SMD KEMET |
3,145 | - |
|
数据表 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5 A | 5.6A | - | Shielded | 41mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.118" (3.00mm) |
|
|
SBC6-681-631FIXED IND 680UH 630MA 980MOHM TH KEMET |
508 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 630 mA | 1.3A | - | Unshielded | 980mOhm Max | 680 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|
SNT-D10CMC 2.5UH 3A 2LN TH KEMET |
704 | - |
|
数据表 |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | - | 3 A | - | Nonstandard, 2 Lead | Unshielded | 25mOhm | 2.5 µH | - | - | Through Hole | - | 0.374" L x 0.236" W (9.50mm x 6.00mm) | - | -20°C ~ 60°C | 100 kHz | 0.500" (12.70mm) |
|
|
SBC8-221-182FIXED IND 220UH 1.8A 170 MOHM TH KEMET |
583 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.8 A | 2.4A | - | Unshielded | 170mOhm Max | 220 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.748" (19.00mm) |
|
MPLCV0654L4R7FIXED IND 4.7UH 6.3A 20 MOHM SMD KEMET |
3,510 | - |
|
数据表 |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 6.3 A | 10.5A | - | Shielded | 20mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.311" L x 0.264" W (7.90mm x 6.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
TPI078060L047NFIXED IND 47NH 53A 0.31 MOHM SMD KEMET |
3,151 | - |
|
数据表 |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 53 A | 90A | - | Shielded | 0.31mOhm | 47 nH | - | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
