固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC282820B-500MHFPFC CHOKE 50.0UH, 37.9A, 6.8 M ITG Electronics, Inc. |
14 | - |
|
数据表 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | ±20% | 21 A | 19.5A | Radial | Unshielded | 6.8mOhm | 50 µH | - | - | Through Hole | - | 1.083" L x 0.787" W (27.50mm x 20.00mm) | - | -55°C ~ 150°C | 100 kHz | 1.102" (28.00mm) |
|

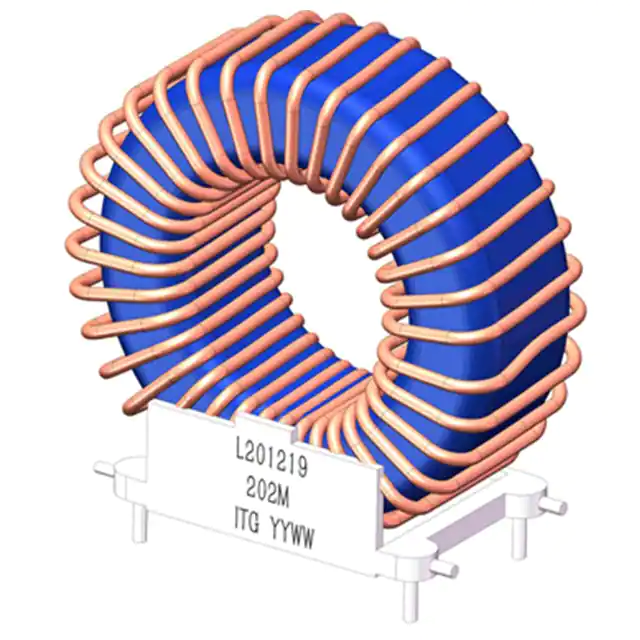

L201219-630MHF62.8uH, 20%, 9.1 mOhm DCR, 17A D ITG Electronics, Inc. |
20 | - |
|
数据表 |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | ±20% | 17 A | 12A | - | Unshielded | 9.1mOhm Max | 62.8 µH | - | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | - | -55°C ~ 130°C | 10 kHz | 1.457" (37.00mm) |
|
|
L201219-400MHF40.2uH, 20%, 4.8 mOhm DCR, 24A D ITG Electronics, Inc. |
19 | - |
|
数据表 |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | ±20% | 24 A | 15A | - | Unshielded | 4.8mOhm Max | 40.2 µH | - | - | Through Hole | - | 1.358" L x 0.669" W (34.50mm x 17.00mm) | - | -55°C ~ 130°C | 10 kHz | 1.260" (32.00mm) |
|
|
L201219-251MHF251.2uH, 20%, 28 mOhm DCR, 9A DI ITG Electronics, Inc. |
16 | - |
|
数据表 |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | ±20% | 9 A | 6A | - | Unshielded | 28mOhm Max | 251.2 µH | - | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | - | -55°C ~ 130°C | 10 kHz | 1.457" (37.00mm) |
|
|
L201219-113MHF11360uH, 20%, 1250 mOhm DCR, 1.2 ITG Electronics, Inc. |
13 | - |
|
数据表 |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | ±20% | 1.2 A | 880mA | - | Unshielded | 1.25Ohm Max | 11.36 mH | - | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | - | -55°C ~ 130°C | 10 kHz | 1.457" (37.00mm) |
|
|
L201219-202MHF1970uH, 20%, 195 mOhm DCR, 3.3A ITG Electronics, Inc. |
12 | - |
|
数据表 |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | ±20% | 3.3 A | 2.1A | - | Unshielded | 195mOhm Max | 1.97 mH | - | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | - | -55°C ~ 130°C | 10 kHz | 1.457" (37.00mm) |
|
|
PFC333236B-241MHFPFC CHOKE 240.0UH 27.3A 16.5 M ITG Electronics, Inc. |
8 | - |
|
数据表 |
PFC | Vertical, 4 PC Pin | Bulk | Active | Wirewound | Alloy Powder | ±20% | 18.5 A | 14.6A | Vertical, 4 PC Pin | Unshielded | 16.5mOhm | 240 µH | - | - | Through Hole | - | 1.299" L x 1.417" W (33.00mm x 36.00mm) | - | -55°C ~ 150°C | 100 kHz | 1.244" (31.60mm) |
|
|
PFC433835B-111MHFPFC CHOKE 115.0UH 44.5AMP 7.7M ITG Electronics, Inc. |
4 | - |
|
数据表 |
PFC | Vertical, 4 PC Pin | Bulk | Active | Wirewound | Alloy Powder | ±20% | 31 A | 23A | Vertical, 4 PC Pin | Unshielded | 7.7mOhm | 115 µH | - | - | Through Hole | - | 1.693" L x 1.378" W (43.00mm x 35.00mm) | - | -55°C ~ 150°C | 100 kHz | 1.496" (38.00mm) |
|
|
SMF252012A-R33MHFMolded Inductor.33uH7.8mOhm9.5A ITG Electronics, Inc. |
1,000 | - |
|
数据表 |
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | ±20% | 8 A | 9.5A | 1008 | Unshielded | 10mOhm Max | 330 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
SMF252010A-R47MHFMolded Inductor.47uH 15.5mOhm 6A ITG Electronics, Inc. |
1,000 | - |
|
数据表 |
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | ±20% | 5.5 A | 6A | 1008 | Unshielded | 18mOhm Max | 470 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
