固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WRFI0805-S-R18GTWirewound RF Inductor,0805,180nH |
4,000 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 400 mA | - | 0805 (2012 Metric) | - | 640mOhm | 180 nH | 50 @ 250MHz | 870MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
|
WRFI0805-S-R22GTWirewound RF Inductor,0805,220nH |
2,000 | - |
|
数据表 |
WRFI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 400 mA | - | 0805 (2012 Metric) | - | 700mOhm | 220 nH | 50 @ 250MHz | 850MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
 MHQ Series.jpg)
|
MHQ1005P5N1BT000FIXED IND 5.1NH 800MA 120MOHM SM |
18,355 | - |
|
数据表 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±0.1nH | 800 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 5.1 nH | 23 @ 250MHz | 4.5GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|

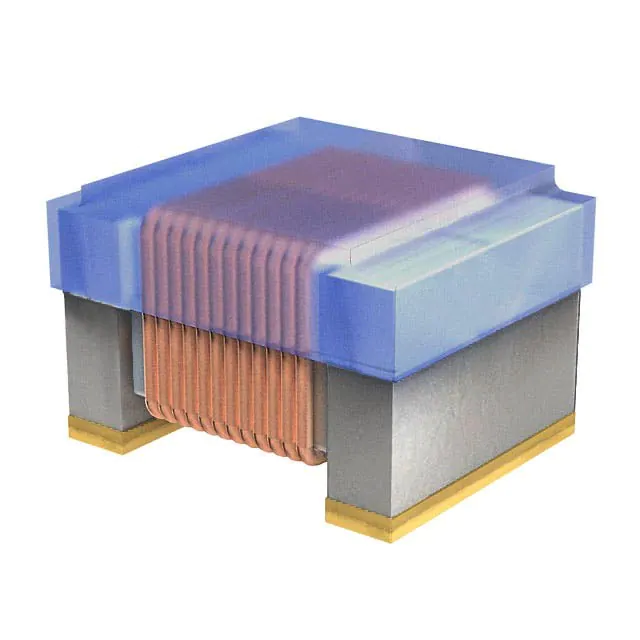

WB0603TR27SJWW IND 0603 270HN 5% |
8,000 | - |
|
数据表 |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 170 mA | - | 0603 | Unshielded | 2.3Ohm Max | 270 nH | 24 @ 100MHz | 900MHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 100 MHz | 0.040" (1.02mm) |
|
BWCS00231715R18G00FIXED IND 180NH 400MA 640MOHM SM |
18,000 | - |
|
数据表 |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 0907 | Unshielded | 640mOhm Max | 180 nH | 50 @ 250MHz | 870MHz | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
|
WB0603T6N3SJWW IND 0603 6.3NH 5% |
8,000 | - |
|
数据表 |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 | Unshielded | 110mOhm Max | 6.3 nH | 25 @ 250MHz | 5.8GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
MHQ1005P2N7ST000FIXED IND 2.7NH 900MA 70MOHM SMD |
17,850 | - |
|
数据表 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±0.3nH | 900 mA | - | 0402 (1005 Metric) | Unshielded | 70mOhm Max | 2.7 nH | 23 @ 250MHz | 6.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
MHQ1005P3N9BT000FIXED IND 3.9NH 900MA 90MOHM SMD |
15,925 | - |
|
数据表 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±0.1nH | 900 mA | - | 0402 (1005 Metric) | Unshielded | 90mOhm Max | 3.9 nH | 23 @ 250MHz | 5GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
MHQ1005P3N0ST000FIXED IND 3NH 900MA 80 MOHM SMD |
15,800 | - |
|
数据表 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±0.3nH | 900 mA | - | 0402 (1005 Metric) | Unshielded | 80mOhm Max | 3 nH | 23 @ 250MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
LQP03TN3N0BZ2DFIXED IND 3NH 450MA 250MOHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 3 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N3BZ2DFIXED IND 3.3NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 3.3 nH | 14 @ 500MHz | 8GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN6N8HZ2DFIXED IND 6.8NH 300MA 600MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±3% | 300 mA | - | 0201 (0603 Metric) | Unshielded | 600mOhm Max | 6.8 nH | 14 @ 500MHz | 3.9GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN5N6HZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±3% | 350 mA | - | 0201 (0603 Metric) | Unshielded | 400mOhm Max | 5.6 nH | 14 @ 500MHz | 4GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN1N1BZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.1nH | 750 mA | - | 0201 (0603 Metric) | Unshielded | 100mOhm Max | 1.1 nH | 14 @ 500MHz | 17GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN2N3BZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.1nH | 500 mA | - | 0201 (0603 Metric) | Unshielded | 200mOhm Max | 2.3 nH | 14 @ 500MHz | 10GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN1N2BZ2DFIXED IND |
0 | - |
|
数据表 |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | ±0.1nH | 750 mA | - | 0201 (0603 Metric) | Unshielded | 100mOhm Max | 1.2 nH | 14 @ 500MHz | 17GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
WB0603T12NSJWW IND 0603 12NH 5% |
8,000 | - |
|
数据表 |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 | Unshielded | 130mOhm Max | 12 nH | 35 @ 250MHz | 4GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
CDRH125NP-151MCFIXED IND 150UH 1A 230 MOHM SMD |
5,832 | - |
|
数据表 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1 A | - | - | Shielded | 230mOhm Max | 150 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.236" (6.00mm) |
|
|
WB0603T14NSJWW IND 0603 14NH 5% |
8,000 | - |
|
数据表 |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 | Unshielded | 170mOhm Max | 14 nH | 35 @ 250MHz | 4GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
MHQ1005P5N6ST000FIXED IND 5.6NH 800MA 130MOHM SM |
15,339 | - |
|
数据表 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±0.3nH | 800 mA | - | 0402 (1005 Metric) | Unshielded | 130mOhm Max | 5.6 nH | 23 @ 250MHz | 4.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
