固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616ABER1R5M11FIXED IND 1.5UH 3.25A 75MOHM SMD |
4,729 | - |
|
数据表 |
IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.25 A | 3.25A | - | Shielded | 75mOhm Max | 1.5 µH | - | 53MHz | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
IHLP2020BZERR22M01FIXED IND 220NH 15A 5.2 MOHM SMD |
3,570 | - |
|
数据表 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 15 A | 22A | - | Shielded | 5.2mOhm Max | 220 nH | - | 145MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SDR1806-680MLFIXED IND 68UH 2.1A 130 MOHM SMD |
2,586 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 3.8A | - | Unshielded | 130mOhm Max | 68 µH | 22 @ 2.52MHz | 8MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
744912147FIXED IND 47NH 3A 5.6 MOHM SMD |
2,002 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 3 A | - | 4248 | Unshielded | 5.6mOhm Max | 47 nH | 100 @ 150MHz | 2.1GHz | Surface Mount | AEC-Q200 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
|
IHLP2020BZER4R7M01FIXED IND 4.7UH 2.8A 116.6 MOHM |
1,980 | - |
|
数据表 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.8 A | 5A | - | Shielded | 116.6mOhm Max | 4.7 µH | - | 28MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SDR1806-221KLFIXED IND 220UH 1.1A 420MOHM SMD |
1,671 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | 2.2A | - | Unshielded | 420mOhm Max | 220 µH | 20 @ 796kHz | 4.5MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|

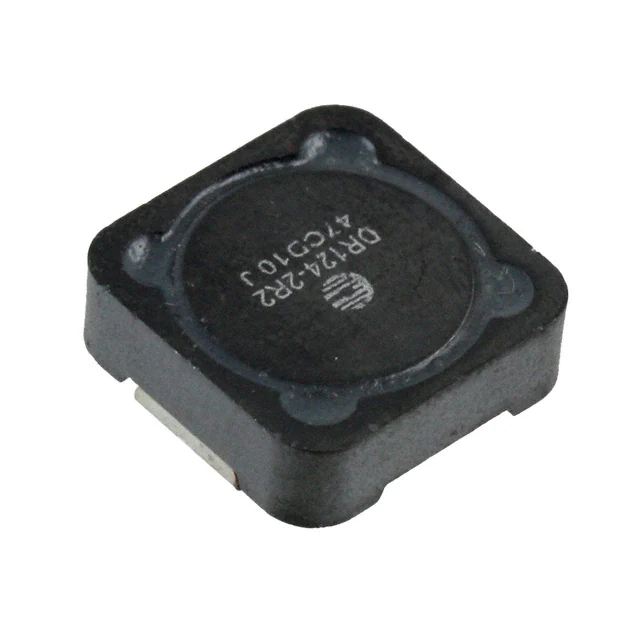

DR124-2R2-RFIXED IND 2.2UH 9.1A 7.1MOHM SMD |
1,522 | - |
|
数据表 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9.1 A | 11.45A | - | Shielded | 7.1mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
DRA74-100-RFIXED IND 10UH 2.56A 43 MOHM SMD |
1,388 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.56 A | 2.97A | - | Shielded | 43mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.140" (3.55mm) |
|
|
744912210FIXED IND 100NH 1.7A 12.3MOHM SM |
1,203 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 1.7 A | - | 4248 | Unshielded | 12.3mOhm Max | 100 nH | 100 @ 150MHz | 1.2GHz | Surface Mount | AEC-Q200 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
SRU1048A-6R8YFIXED IND 6.8UH 4.8A 18 MOHM SMD |
1,175 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.8 A | 4.1A | - | Shielded | 18mOhm Max | 6.8 µH | 10 @ 7.96MHz | 20MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
744912133FIXED IND 33NH 3A 4.8 MOHM SMD |
860 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 3 A | - | 4248 | Unshielded | 4.8mOhm Max | 33 nH | 100 @ 150MHz | 2.5GHz | Surface Mount | AEC-Q200 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
|
744912139FIXED IND 39NH 3A 4.4 MOHM SMD |
610 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 3 A | - | 4248 | Unshielded | 4.4mOhm Max | 39 nH | 100 @ 150MHz | 2.1GHz | Surface Mount | AEC-Q200 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|

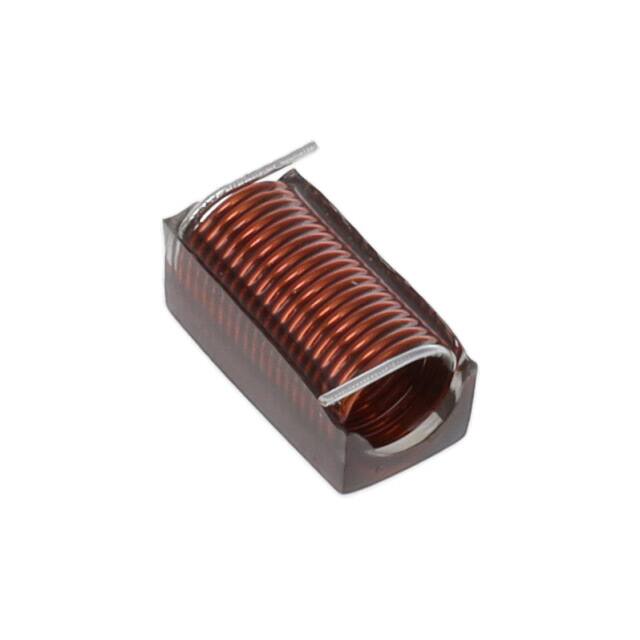

744918254FIXED IND 538NH 2A 90 MOHM SMD |
601 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 2 A | - | 5910 | Unshielded | 90mOhm Max | 538 nH | 100 @ 50MHz | 490MHz | Surface Mount | AEC-Q200 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | - | -40°C ~ 125°C | 50 MHz | 0.232" (5.90mm) |
|
|
744912156FIXED IND 56NH 3A 6.2 MOHM SMD |
454 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 3 A | - | 4248 | Unshielded | 6.2mOhm Max | 56 nH | 100 @ 150MHz | 1.5GHz | Surface Mount | AEC-Q200 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
VLCF5028T-220MR71-2FIXED IND 22UH 710MA 140MOHM SMD |
312 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 710 mA | 710mA | - | Shielded | 140mOhm Max | 22 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.110" (2.80mm) |
|
|
744912122FIXED IND 22NH 3A 4.2 MOHM SMD |
266 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 3 A | - | 4248 | Unshielded | 4.2mOhm Max | 22 nH | 100 @ 150MHz | 3.2GHz | Surface Mount | AEC-Q200 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
LQW18AS82NG00DFIXED IND |
2,664 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 400 mA | - | 0603 | Unshielded | 540mOhm Max | 82 nH | 34 @ 150MHz | 1.7GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 150 MHz | 0.039" (1.00mm) |
|
LSQCA201212T220MFIXED IND 22UH 130MA 3.7 OHM SMD |
2,500 | - |
|
数据表 |
LSQC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 130 mA | - | 0805 | Unshielded | 3.7Ohm | 22 µH | - | 16MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.057" (1.45mm) |
|
|
CPEX3635L-950MCTHT HIGH CURRENT POWER INDUCTOR |
453 | - |
|
数据表 |
CPEX3635L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 32 A | 26A | - | Shielded | 6.15mOhm Max | 95 µH | - | - | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 1.346" (34.20mm) |
|
|
LQW18AS11NG00DFIXED IND |
2,440 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 700 mA | - | 0603 | Unshielded | 86mOhm Max | 11 nH | 30 @ 250MHz | 4GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 250 MHz | 0.039" (1.00mm) |
