固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQBA201616T4R7MFIXED IND 4.7UH 225MA 0.25OHM SM |
1,547 | - |
|
数据表 |
LSQB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 225 mA | - | 0806 | Unshielded | 250mOhm | 4.7 µH | - | 45MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.071" (1.80mm) |
|
LSQBA321818T220MFIXED IND 22UH 255MA 0.49OHM SMD |
1,545 | - |
|
数据表 |
LSQB | 1207 (3218 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 255 mA | - | 1207 | Unshielded | 490mOhm | 22 µH | - | 19MHz | Surface Mount | - | 0.126" L x 0.071" W (3.20mm x 1.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.079" (2.00mm) |
|

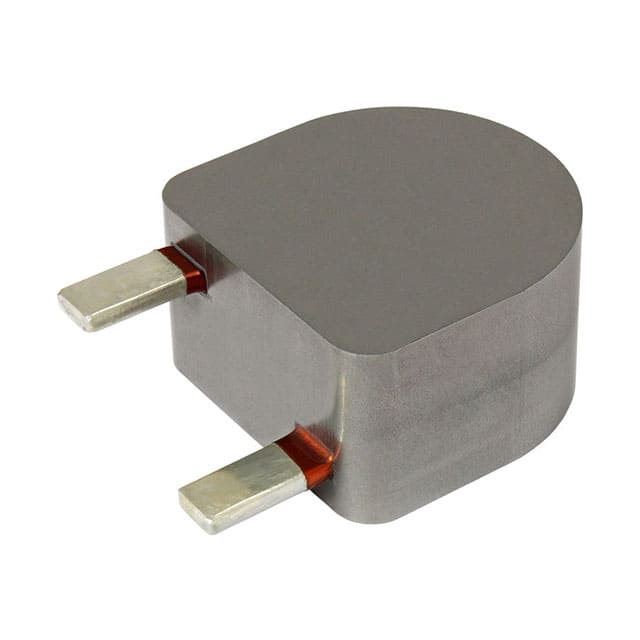

IHXL1500VZEB1R5M51FIXED IND 1.5UH 178A 0.26MOHM TH |
124 | - |
|
数据表 |
IHXL-1500VZ-51 | Nonstandard | Bulk | Active | - | - | ±20% | 178 A | - | - | Shielded | 0.26mOhm Max | 1.5 µH | - | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | - | -55°C ~ 155°C | 500 kHz | 0.872" (22.15mm) |
|
LSQBA321818T100KFIXED IND 10UH 340MA 0.25OHM SMD |
1,454 | - |
|
数据表 |
LSQB | 1207 (3218 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 340 mA | - | 1207 | Unshielded | 250mOhm | 10 µH | - | 30MHz | Surface Mount | - | 0.126" L x 0.071" W (3.20mm x 1.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.079" (2.00mm) |
|
CPEX2022L-6R5MCTHT HIGH CURRENT POWER INDUCTOR |
166 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 42 A | 55A | - | Shielded | 1.51mOhm Max | 6.5 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
LSQBA321818T102KFIXED IND 1MH 39MA 27 OHM SMD |
1,306 | - |
|
数据表 |
LSQB | 1207 (3218 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 39 mA | - | 1207 | Unshielded | 27Ohm | 1 mH | - | 2.4MHz | Surface Mount | - | 0.126" L x 0.071" W (3.20mm x 1.80mm) | - | -40°C ~ 105°C | 252 kHz | 0.079" (2.00mm) |
|
|
LQW15AN9N0H00DFIXED IND 9NH 540MA 0.14OHM SMD |
1,039 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±3% | 540 mA | - | - | Unshielded | 140mOhm Max | 9 nH | 25 @ 250MHz | 5.5GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
1mm.jpg)
|
74438333022FIXED IND 2.2UH 1.4A 172MOHM SMD |
2,193 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1.4 A | 3.9A | 3010 | Shielded | 172mOhm Max | 2.2 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
74404054010FIXED IND 1UH 4.9A 12 MOHM SMD |
2,185 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.9 A | 8A | 5040 | Shielded | 12mOhm | 1 µH | - | 187MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
74404054022FIXED IND 2.2UH 3.8A 19 MOHM SMD |
1,904 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.8 A | 5.3A | 5040 | Shielded | 19mOhm | 2.2 µH | - | 77MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
74404054047FIXED IND 4.7UH 3A 30 MOHM SMD |
1,731 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3 A | 3.8A | 5040 | Shielded | 30mOhm | 4.7 µH | - | 43MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
1.5mm.jpg)
|
74438335033FIXED IND 3.3UH 1.7A 131MOHM SMD |
1,687 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1.7 A | 3.2A | 3015 | Shielded | 131mOhm Max | 3.3 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
CPEX2022L-100MCTHT HIGH CURRENT POWER INDUCTOR |
159 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 35 A | 44A | - | Shielded | 2.11mOhm Max | 10 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2022L-8R2MCTHT HIGH CURRENT POWER INDUCTOR |
159 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 38.5 A | 47A | - | Shielded | 1.73mOhm Max | 8.2 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2022L-2R7MCTHT HIGH CURRENT POWER INDUCTOR |
148 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 60 A | 82A | - | Shielded | 0.72mOhm Max | 2.7 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2022L-220MCTHT HIGH CURRENT POWER INDUCTOR |
145 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 24 A | 27A | - | Shielded | 4.46mOhm Max | 22 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2022L-3R9MCTHT HIGH CURRENT POWER INDUCTOR |
175 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 54 A | 72A | - | Shielded | 0.88mOhm Max | 3.9 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2022L-150MCTHT HIGH CURRENT POWER INDUCTOR |
172 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 29 A | 33A | - | Shielded | 2.96mOhm Max | 15 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2022L-5R2MCTHT HIGH CURRENT POWER INDUCTOR |
112 | - |
|
数据表 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 48 A | 60A | - | Shielded | 1.12mOhm Max | 5.2 µH | - | - | Through Hole | AEC-Q200 | 0.874" L x 0.807" W (22.20mm x 20.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.827" (21.00mm) |
|
|
CPEX2622L-150MCTHT HIGH CURRENT POWER INDUCTOR |
177 | - |
|
数据表 |
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 34 A | 42A | - | Shielded | 2.32mOhm Max | 15 µH | - | - | Through Hole | AEC-Q200 | 1.043" L x 0.874" W (26.50mm x 22.20mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.984" (25.00mm) |
