Panasonic - BSG|场效应晶体管（FETs）、MOSFETs - 页 1

厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	FET 类型	技术	电流 - 连续漏极 (Id) @ 25°C	驱动电压（最大导通电阻，最小导通电阻）	导通电阻 (Rds On)（最大值）@ Id, Vgs	安装类型	栅极阈值电压 (Vgs(th)）（最大值）@ Id	栅极电荷 (Qg)（最大值）@ Vgs	漏极到源极电压 (Vdss)	栅极电压 (Vgs)（最大值）	输入电容 (Ciss)（最大值）@ Vds	认证	FET 特性	供应商设备封装	等级	功耗（最大值）	工作温度
2SK0664G0L MOSFET N-CH 50V 100MA SMINI3-F2 Panasonic Electronic Components	9,812	-	询价单	数据表	-	SC-85	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	100mA (Ta)	5V	50Ohm @ 20mA, 5V	Surface Mount	3.5V @ 100µA	-	50 V	8V	15 pF @ 5 V	-	-	SMini3-F2	-	150mW (Ta)	150°C (TJ)
MTM232230L MOSFET N-CH 20V 4.5A SMINI3-G1 Panasonic Electronic Components	4,936	-	询价单	数据表	-	SC-70, SOT-323	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	4.5A (Ta)	2.5V, 4.5V	28mOhm @ 1A, 4V	Surface Mount	1.3V @ 1mA	-	20 V	±10V	1200 pF @ 10 V	-	-	SMini3-G1	-	500mW (Ta)	150°C (TJ)
2SK327700L MOSFET N-CH 200V 2.5A U-G1 Panasonic Electronic Components	5,880	-	询价单	数据表	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	2.5A (Tc)	10V	1.7Ohm @ 1.25A, 10V	Surface Mount	4V @ 1mA	-	200 V	±20V	170 pF @ 20 V	-	-	U-G1	-	1W (Ta), 10W (Tc)	150°C (TJ)
2SK303000L MOSFET N-CH 100V 8A U-G1 Panasonic Electronic Components	4,251	-	询价单	数据表	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	8A (Tc)	4V, 10V	230mOhm @ 4A, 10V	Surface Mount	2.5V @ 1mA	-	100 V	±20V	290 pF @ 10 V	-	-	U-G1	-	1W (Ta), 15W (Tc)	150°C (TJ)
2SK3046 MOSFET N-CH 500V 7A TO220D-A1 Panasonic Electronic Components	7,686	-	询价单	数据表	-	TO-220-3 Full Pack	Bulk	Obsolete	N-Channel	MOSFET (Metal Oxide)	7A (Tc)	10V	1Ohm @ 4A, 10V	Through Hole	5V @ 1mA	-	500 V	±30V	1200 pF @ 20 V	-	-	TO-220D-A1	-	2W (Ta), 40W (Tc)	150°C (TJ)
2SK303100L MOSFET N-CH 100V 15A U-G1 Panasonic Electronic Components	2,618	-	询价单	数据表	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	15A (Tc)	4V, 10V	135mOhm @ 8A, 10V	Surface Mount	2.5V @ 1mA	-	100 V	±20V	300 pF @ 10 V	-	-	U-G1	-	1W (Ta), 20W (Tc)	150°C (TJ)

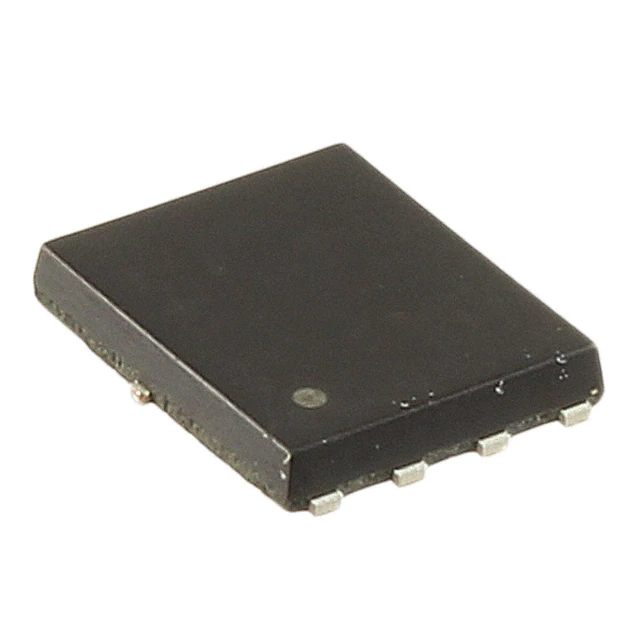

SK8603170L MOSFET N-CH 30V 20A/59A 8HSO Panasonic Electronic Components	7,322	-	询价单	数据表	-	8-PowerSMD, Flat Leads	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	20A (Ta), 59A (Tc)	4.5V, 10V	4.1mOhm @ 14A, 10V	Surface Mount	3V @ 2.56mA	17 nC @ 4.5 V	30 V	±20V	2940 pF @ 10 V	-	-	HSO8-F4-B	-	2.8W (Ta), 24W (Tc)	150°C (TJ)
MTMF82310BBF MOSFET N-CH 30V 18A SO8-F1-B Panasonic Electronic Components	8,332	-	询价单	数据表	-	8-SMD, Flat Leads	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	18A (Ta)	4.5V, 10V	4.2mOhm @ 5A, 10V	Surface Mount	2.5V @ 1mA	-	30 V	±20V	6000 pF @ 10 V	-	-	SO8-F1-B	-	-	150°C (TJ)

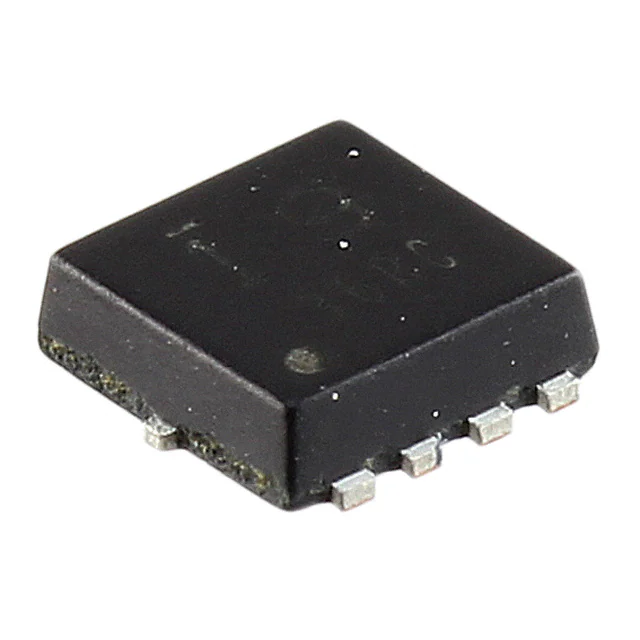

SK8403160L MOSFET N-CH 30V 18A 8HSSO Panasonic Electronic Components	9,519	-	询价单	数据表	-	8-PowerSMD, Flat Leads	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	18A (Ta), 70A (Tc)	4.5V, 10V	3.3mOhm @ 14.5A, 10V	Surface Mount	3V @ 3.35mA	22 nC @ 4.5 V	30 V	±20V	3920 pF @ 10 V	-	-	HSSO8-F1-B	-	2W (Ta), 28W (Tc)	150°C (TJ)
SK8603160L MOSFET N-CH 30V 22A/70A 8HSO Panasonic Electronic Components	8,971	-	询价单	数据表	-	8-PowerSMD, Flat Leads	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	22A (Ta), 70A (Tc)	4.5V, 10V	3.3mOhm @ 17A, 10V	Surface Mount	3V @ 3.35mA	22 nC @ 4.5 V	30 V	±20V	3920 pF @ 10 V	-	-	HSO8-F4-B	-	2.8W (Ta), 28W (Tc)	150°C (TJ)

共 89 条记录«上一页12 3 4...9 下一页»
