场效应晶体管（FET）、MOSFET 阵列
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 配置 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | FET 特性 | 输入电容 (Ciss)（最大值）@ Vds | 功率 - 最大值 | 供应商设备封装 | 工作温度 | 安装类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

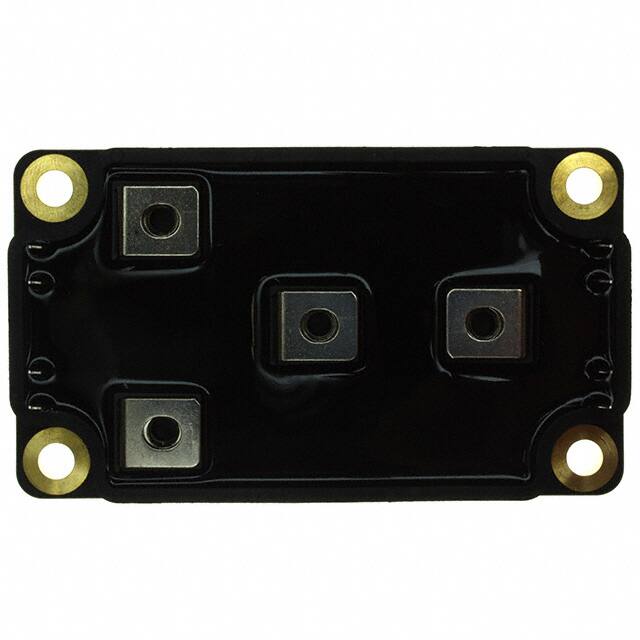

APTM120H29FGMOSFET 4N-CH 1200V 34A SP6 |
8,924 | - |
|
数据表 |
POWER MOS 7® | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | - | 10300pF @ 25V | 780W | SP6 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
APTM100TA35SCTPGMOSFET 6N-CH 1000V 22A SP6-P |
8,239 | - |
|
数据表 |
POWER MOS 7® | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | - | 5200pF @ 25V | 390W | SP6-P | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
CAS100H12AM1MOSFET 2N-CH 1200V 168A MODULE |
4,424 | - |
|
数据表 |
Z-FET™ | Module | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | 1200V (1.2kV) | 168A | 20mOhm @ 20A, 20V | 3.1V @ 50mA | - | - | 9500pF @ 800V | 568W | Module | - | Chassis Mount | - | - |
|
|
CAS110M12BM2SIC 1200V 110A |
3,405 | - |
|
数据表 |
- | Module | Bulk | Not For New Designs | Silicon Carbide (SiC) | - | 1200V (1.2kV) | 110A | - | - | - | - | - | - | - | - | Chassis Mount | - | - |
.jpg)
|
MSCSM120HM16CT3AGMOSFET 4N-CH 1200V 173A SP3F |
9,755 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | - | 6040pF @ 1000V | 745W (Tc) | SP3F | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
QJD1210SA1MOSFET 2N-CH 1200V 100A MODULE |
4,557 | - |
|
数据表 |
- | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | - | 8200pF @ 10V | 520W | Module | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
QJD1210SB1SIC 1200V 10A MOD |
7,524 | - |
|
数据表 |
* | - | Bulk | Discontinued at Digi-Key | Silicon Carbide (SiC) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTC60TAM21SCTPAGMOSFET 6N-CH 600V 116A SP6-P |
5,946 | - |
|
数据表 |
CoolMOS™ | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | 600V | 116A | 21mOhm @ 88A, 10V | 3.6V @ 6mA | 580nC @ 10V | - | 13000pF @ 100V | 625W | SP6-P | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
CCS050M12CM2MOSFET 6N-CH 1200V 87A MODULE |
5,161 | - |
|
数据表 |
Z-FET™ Z-Rec™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | 1200V (1.2kV) | 87A (Tc) | 34mOhm @ 50A, 20V | 2.3V @ 2.5mA | 180nC @ 20V | - | 2810pF @ 800V | 337W | Module | 150°C (TJ) | Chassis Mount | - | - |
|
|
WAS110M12BM2RF MOSFET 1200V |
5,967 | - |
|
数据表 |
- | - | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QJD1210SA2MOSFET 2N-CH 1200V 100A MODULE |
4,350 | - |
|
数据表 |
- | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | - | 8200pF @ 10V | 415W | Module | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
APTMC170AM60CT1AGMOSFET 2N-CH 1700V 50A SP1 |
9,853 | - |
|
数据表 |
- | SP1 | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1700V (1.7kV) | 50A (Tc) | 60mOhm @ 50A, 20V | 2.3V @ 2.5mA (Typ) | 190nC @ 20V | - | 3080pF @ 1000V | 350W | SP1 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM70HM05CAGSIC MOSFET |
2,214 | - |
|
数据表 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MSCSM70TAM10CTPAGMOSFET 6N-CH 700V 238A SP6-P |
3,512 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | - | 9000pF @ 700V | 674W (Tc) | SP6-P | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|

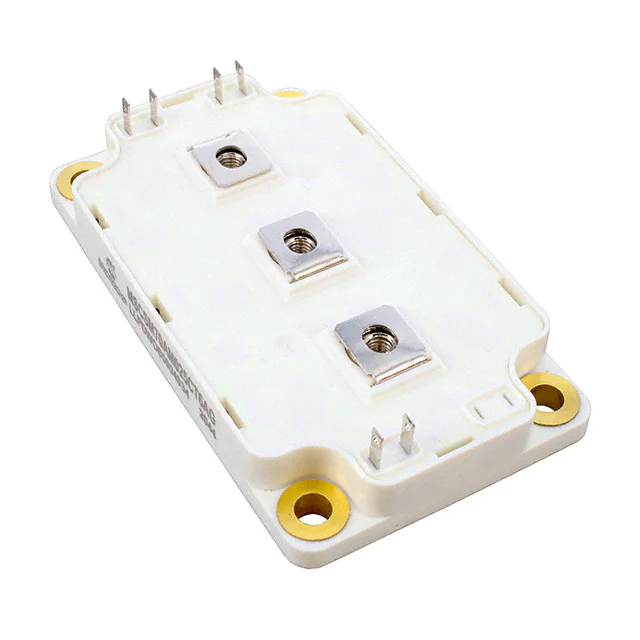

MSCSM70AM025CT6AGMOSFET 700V 538A SP6C |
8,918 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | - | 700V | 538A (Tc) | - | - | - | - | - | - | SP6C | - | Chassis Mount | - | - |
|

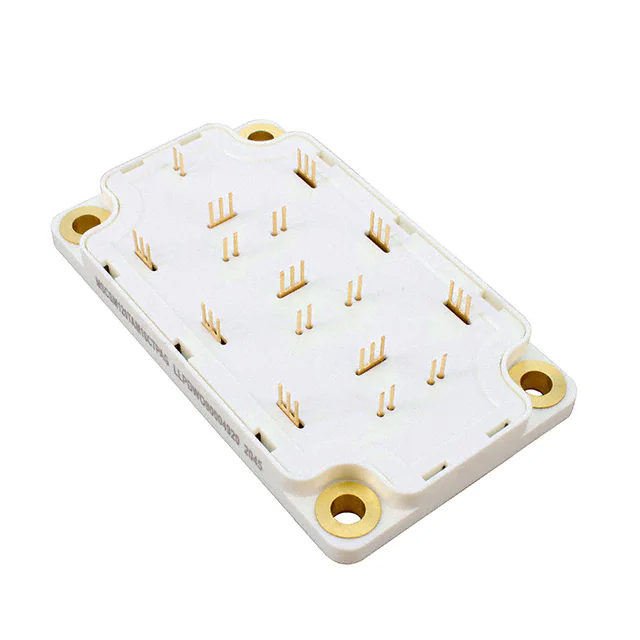

MSCSM120TAM16CTPAGMOSFET 6N-CH 1200V 171A SP6-P |
8,055 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | 1200V (1.2kV) | 171A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | - | 6040pF @ 1000V | 728W (Tc) | SP6-P | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
MSCSM120HM083CAGSIC MOSFET |
3,522 | - |
|
数据表 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSCSM120AM042CT6AGMOSFET 2N-CH 1200V 495A SP6C |
7,444 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | - | 18.1pF @ 1000V | 2.031kW (Tc) | SP6C | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
MSCSM70AM025CT6LIAGMOSFET 2N-CH 700V 689A SP6C LI |
8,656 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel | 700V | 689A (Tc) | 3.2mOhm @ 240A, 20V | 2.4V @ 24mA (Typ) | 1290nC @ 20V | - | 27000pF @ 700V | 1882W (Tc) | SP6C LI | - | Chassis Mount | - | - |
|
|
QJD1210010MOSFET 2N-CH 1200V 100A MODULE |
2,949 | - |
|
数据表 |
- | Module | Bulk | Discontinued at Digi-Key | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 1200V (1.2kV) | 100A (Tc) | 25mOhm @ 100A, 20V | 5V @ 10mA | 500nC @ 20V | - | 10200pF @ 800V | 1080W | Module | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
