场效应晶体管（FET）、MOSFET 阵列
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 配置 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | FET 特性 | 输入电容 (Ciss)（最大值）@ Vds | 功率 - 最大值 | 供应商设备封装 | 工作温度 | 安装类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM10DSKM09T3GMOSFET 2N-CH 100V 139A SP3 |
5,304 | - |
|
数据表 |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 100V | 139A | 10mOhm @ 69.5A, 10V | 4V @ 2.5mA | 350nC @ 10V | - | 9875pF @ 25V | 390W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
APTM100H46FT3GMOSFET 4N-CH 1000V 19A SP3 |
7,607 | - |
|
数据表 |
POWER MOS 8™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | 1000V (1kV) | 19A | 552mOhm @ 16A, 10V | 5V @ 2.5mA | 260nC @ 10V | - | 6800pF @ 25V | 357W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
APTC60HM70RT3GMOSFET 4N-CH 600V 39A SP3 |
4,126 | - |
|
数据表 |
CoolMOS™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) + Bridge Rectifier | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | - | 7000pF @ 25V | 250W | SP3 | -40°C ~ 150°C (TJ) | - | - | - |
|
|
APTC60AM24T1GMOSFET 2N-CH 600V 95A SP1 |
3,810 | - |
|
数据表 |
- | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | - | 14400pF @ 25V | 462W | SP1 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
APTC60HM45T1GMOSFET 4N-CH 600V 49A SP1 |
4,671 | - |
|
数据表 |
- | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | 600V | 49A | 45mOhm @ 24.5A, 10V | 3.9V @ 3mA | 150nC @ 10V | - | 7200pF @ 25V | 250W | SP1 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
DF11MR12W1M1B11BOMA1MOSFET 2N-CH 1200V AG-EASY1BM-2 |
9,928 | - |
|
数据表 |
- | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 1200V (1.2kV) | 50A | 23mOhm @ 50A, 15V | 5.5V @ 20mA | 125nC @ 5V | - | 3950pF @ 800V | - | AG-EASY1BM-2 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
APTC60DDAM35T3GMOSFET 2N-CH 600V 72A SP3 |
9,626 | - |
|
数据表 |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 600V | 72A | 35mOhm @ 72A, 10V | 3.9V @ 5.4mA | 518nC @ 10V | - | 14000pF @ 25V | 416W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
APTM10TDUM19PGMOSFET 6N-CH 100V 70A SP6-P |
8,348 | - |
|
数据表 |
- | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | 100V | 70A | 21mOhm @ 35A, 10V | 4V @ 1mA | 200nC @ 10V | - | 5100pF @ 25V | 208W | SP6-P | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
APTM50DDAM65T3GMOSFET 2N-CH 500V 51A SP3 |
2,861 | - |
|
数据表 |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | - | 7000pF @ 25V | 390W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|

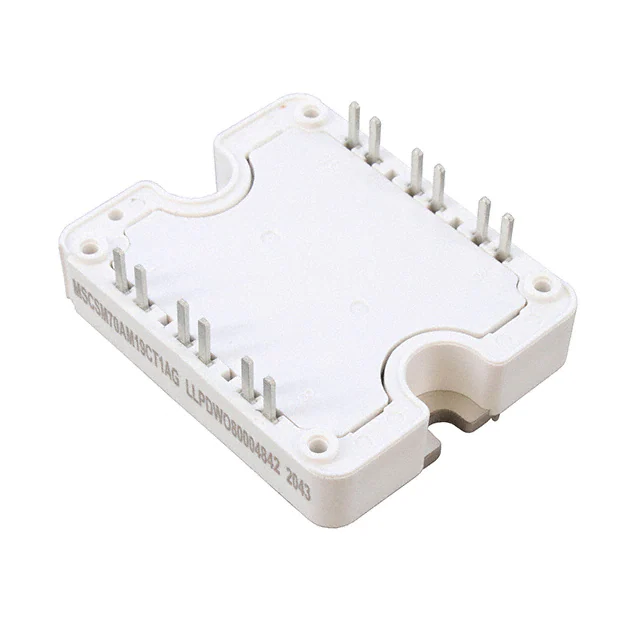

MSCSM70AM19CT1AGMOSFET 2N-CH 700V 124A SP1F |
3,260 | - |
|
数据表 |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | 700V | 124A (Tc) | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215nC @ 20V | - | 4500pF @ 700V | 365W (Tc) | SP1F | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
APTC60HM70BT3GMOSFET 4N-CH 600V 39A SP3 |
5,717 | - |
|
数据表 |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | Logic Level Gate | 700pF @ 25V | 250W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
VQ1001P-2MOSFET 4N-CH 30V 0.83A 14DIP |
8,809 | - |
|
数据表 |
- | - | Tube | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel | 30V | 830mA | 1.75Ohm @ 200mA, 5V | 2.5V @ 1mA | - | Logic Level Gate | 110pF @ 15V | 2W | 14-DIP | -55°C ~ 150°C (TJ) | Through Hole | - | - |
|
|
APTM50H10FT3GMOSFET 4N-CH 500V 37A SP3 |
8,892 | - |
|
数据表 |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | 500V | 37A | 120mOhm @ 18.5A, 10V | 5V @ 1mA | 96nC @ 10V | - | 4367pF @ 25V | 312W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
IXFN130N90SKMOSFET 2N-CH 900V SOT227B |
8,035 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 900V | - | - | - | - | - | - | - | SOT-227B | - | Chassis Mount | - | - |
|
|
VWM350-0075PMOSFET 6N-CH 75V 340A V2-PAK |
3,498 | - |
|
数据表 |
- | V2-PAK | Box | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | 75V | 340A | 3.3mOhm @ 250A, 10V | 4V @ 2mA | 450nC @ 10V | - | - | - | V2-PAK | -40°C ~ 175°C (TJ) | Chassis Mount | - | - |
|
|
APTC60DHM24T3GMOSFET 2N-CH 600V 95A SP3 |
7,386 | - |
|
数据表 |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | - | 14400pF @ 25V | 462W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
UFB15C12E1BC3NMOSFET 4P-CH 1200V 24A MODULE |
8,436 | - |
|
数据表 |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 4 P-Channel (Full Bridge) | 1200V (1.2kV) | 24A (Tj) | 90mOhm @ 15A, 12V | 6V @ 10mA | 46nC @ 15V | Silicon Carbide (SiC) | 1445pF @ 800V | 96W (Tc) | Module | -55°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
VQ1006P-2MOSFET 4N-CH 90V 0.4A 14DIP |
2,022 | - |
|
数据表 |
- | - | Tube | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel | 90V | 400mA | 4.5Ohm @ 1A, 10V | 2.5V @ 1mA | - | Logic Level Gate | 60pF @ 25V | 2W | 14-DIP | -55°C ~ 150°C (TJ) | Through Hole | - | - |
|
|
APTM50HM75FT3GMOSFET 4N-CH 500V 46A SP3 |
6,805 | - |
|
数据表 |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | 500V | 46A | 90mOhm @ 23A, 10V | 5V @ 2.5mA | 123nC @ 10V | - | 5600pF @ 25V | 357W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
|
|
APTC60DDAM24T3GMOSFET 2N-CH 600V 95A SP3 |
9,958 | - |
|
数据表 |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N Channel (Dual Buck Chopper) | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | - | 14400pF @ 25V | 462W | SP3 | -40°C ~ 150°C (TJ) | Chassis Mount | - | - |
